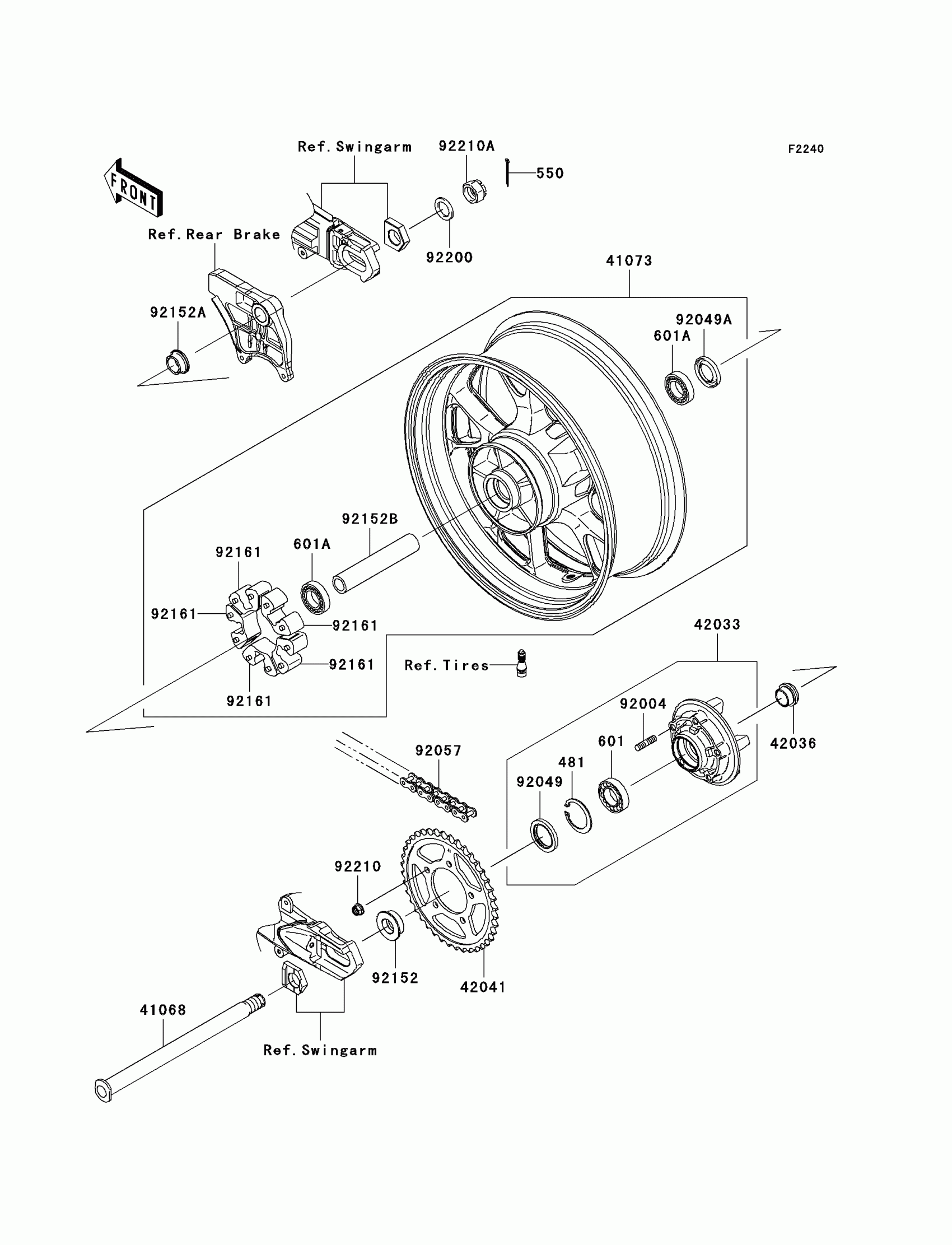

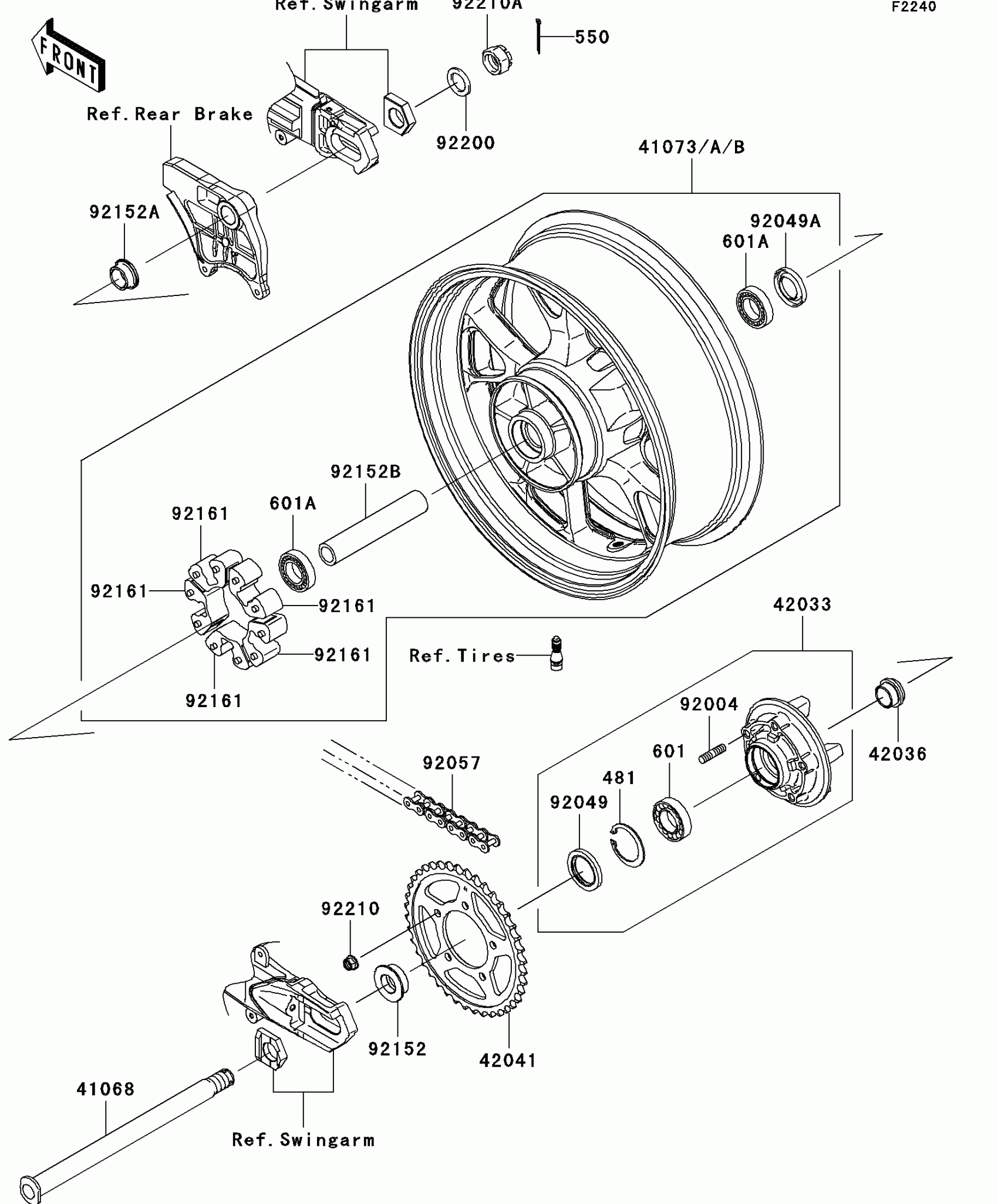

Kawasaki NINJA® ZX™-14 Rear Wheel/Chain Diagram

Description

Price

481

CIRCLIP

481J5500

$8.84

550

PIN-COTTER,4.0X40

550AA4040

$1.36

601

BEARING-BALL,#6006G

601B6006G

$29.13

601A

BEARING-BALL

601B6205UU

$29.62

41068

AXLE,RR

41068-0050

Unavailable

41073

WHEEL-ASSY,RR,G.BLACK

41073-0064-18F

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-0021

$266.16

42036

SLEEVE,RR HUB,L=22

42036-1279

$29.08

42041

SPROCKET-HUB,41T

42041-0023

$85.27

92004

STUD,10X24

92004-0029

$5.60

92049

SEAL-OIL,PJN40556

92049-1263

$17.95

92049A

SEAL-OIL,RR HUB

92049-1375

$19.15

92057

CHAIN,DRIVE,DID50ZVZX116L

92057-0146

$461.12

92152

COLLAR,RR AXLE,LH,L=16.5

92152-0340

$39.33

92152A

COLLAR,RR AXLE,RH,L=16

92152-0341

$57.95

92152B

COLLAR,RR HUB,L=152.5

92152-1080

$33.49

92161

DAMPER,SHOCK,RR HUB

92161-1286

$28.94

92200

WASHER,25.5X38X3.2

92200-0278

$2.61

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,CASTLE,24MM

92210-0280

$13.60
