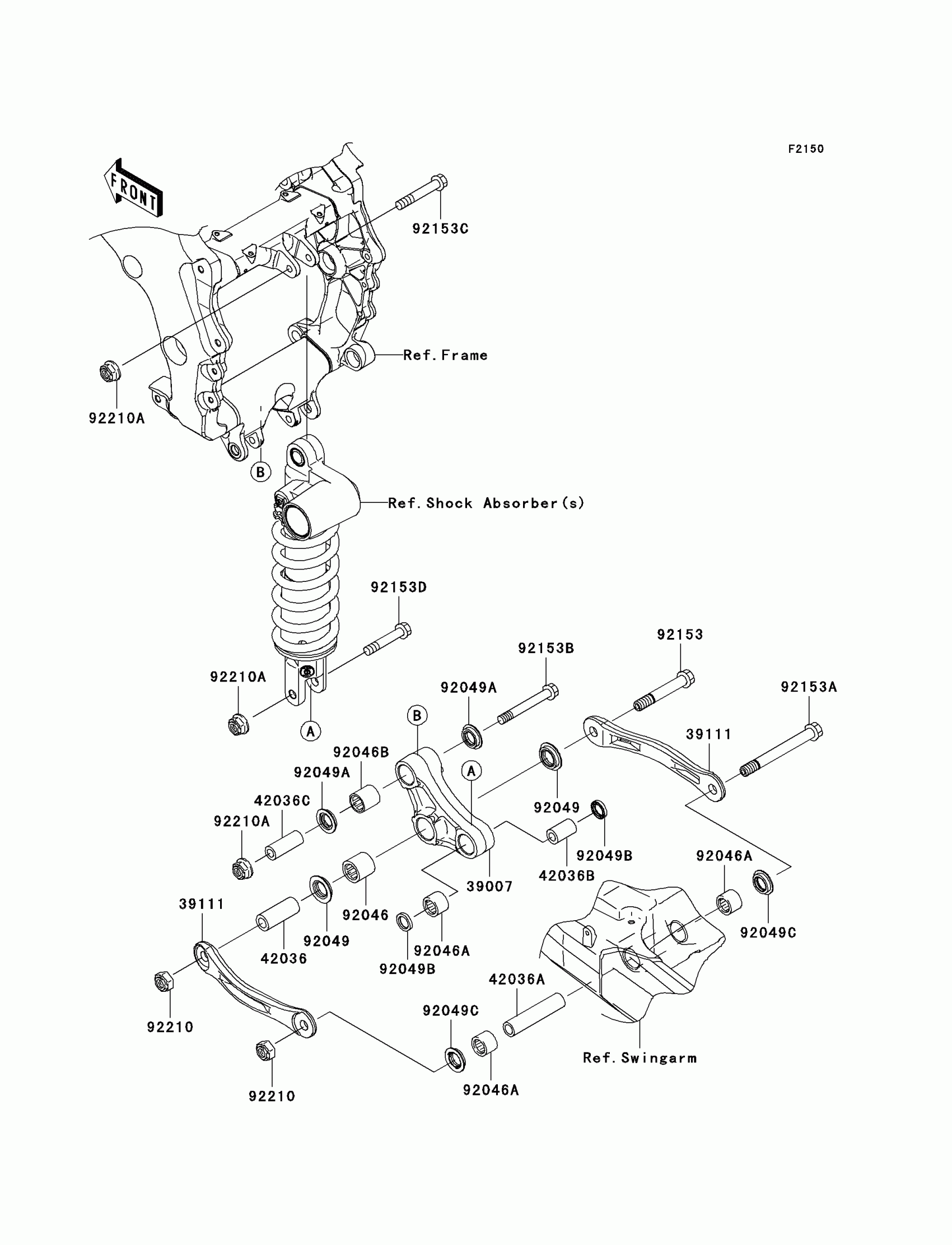

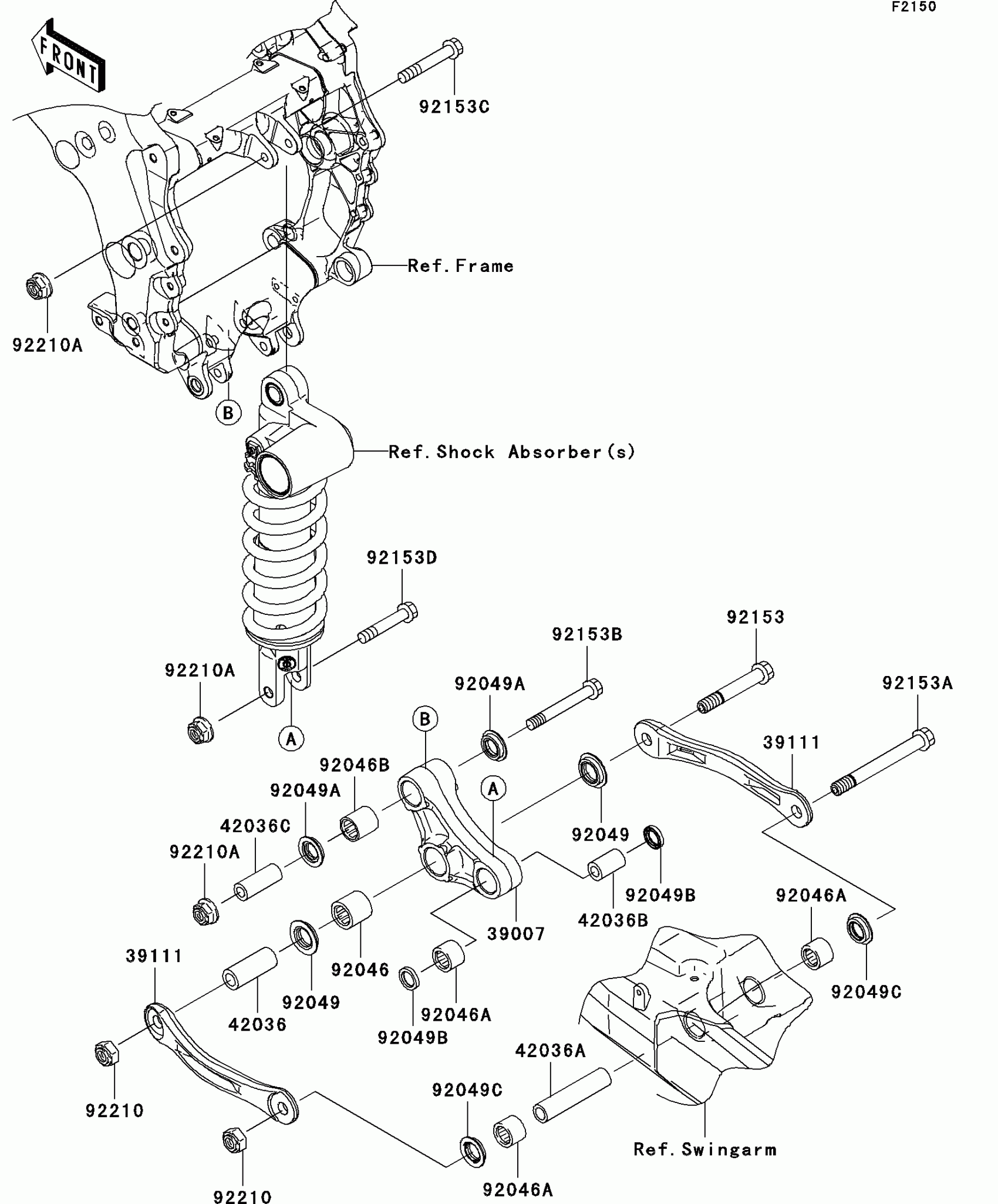

Kawasaki NINJA® ZX™-14 Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0061

$111.25

39111

ROD-TIE,SUSPENSION

39111-0025

$37.85

42036

SLEEVE,12.1X20X50

42036-1111

$21.99

42036A

SLEEVE,12.1X18X82

42036-1231

$25.83

42036B

SLEEVE,10.1X18X30

42036-1258

$12.35

42036C

SLEEVE,10.1X17X44.5

42036-1342

$11.28

92046

BEARING-NEEDLE,7E-HVS20X27X25

92046-1236

$19.86

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92049B

SEAL-OIL,MHA18244

92049-1225

$9.28

92049C

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92153

BOLT,FLANGED,12X75

92153-1367

$31.86

92153A

BOLT,FLANGED,12X110

92153-1368

$34.84

92153B

BOLT,FLANGED,10X77

92153-1613

$11.93

92153C

BOLT,FLANGED,10X62

92153-1614

$8.68

92153D

BOLT,FLANGED,10X55

92153-1615

$8.68

92210

NUT,LOCK,12MM

92210-0274

$2.61

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
