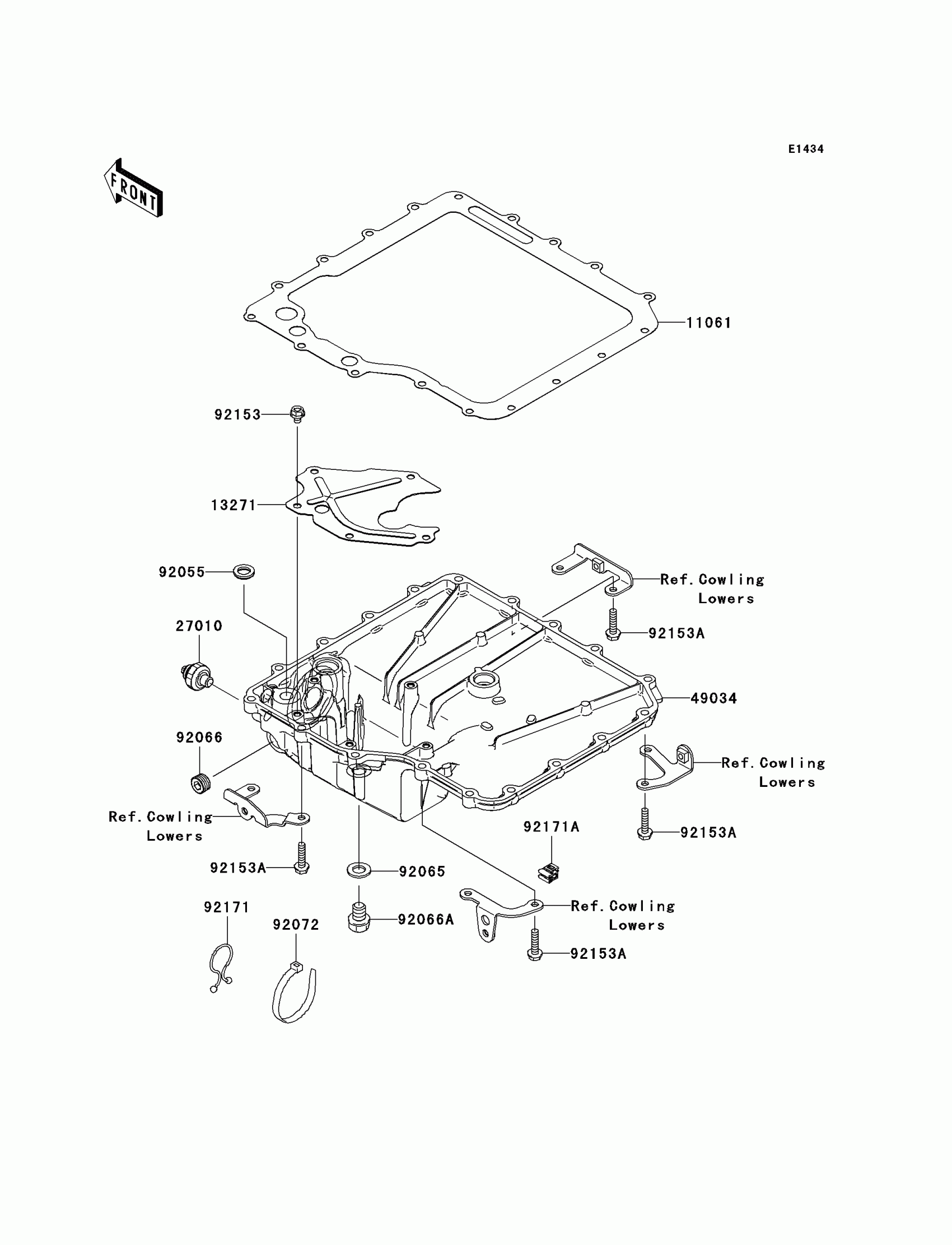

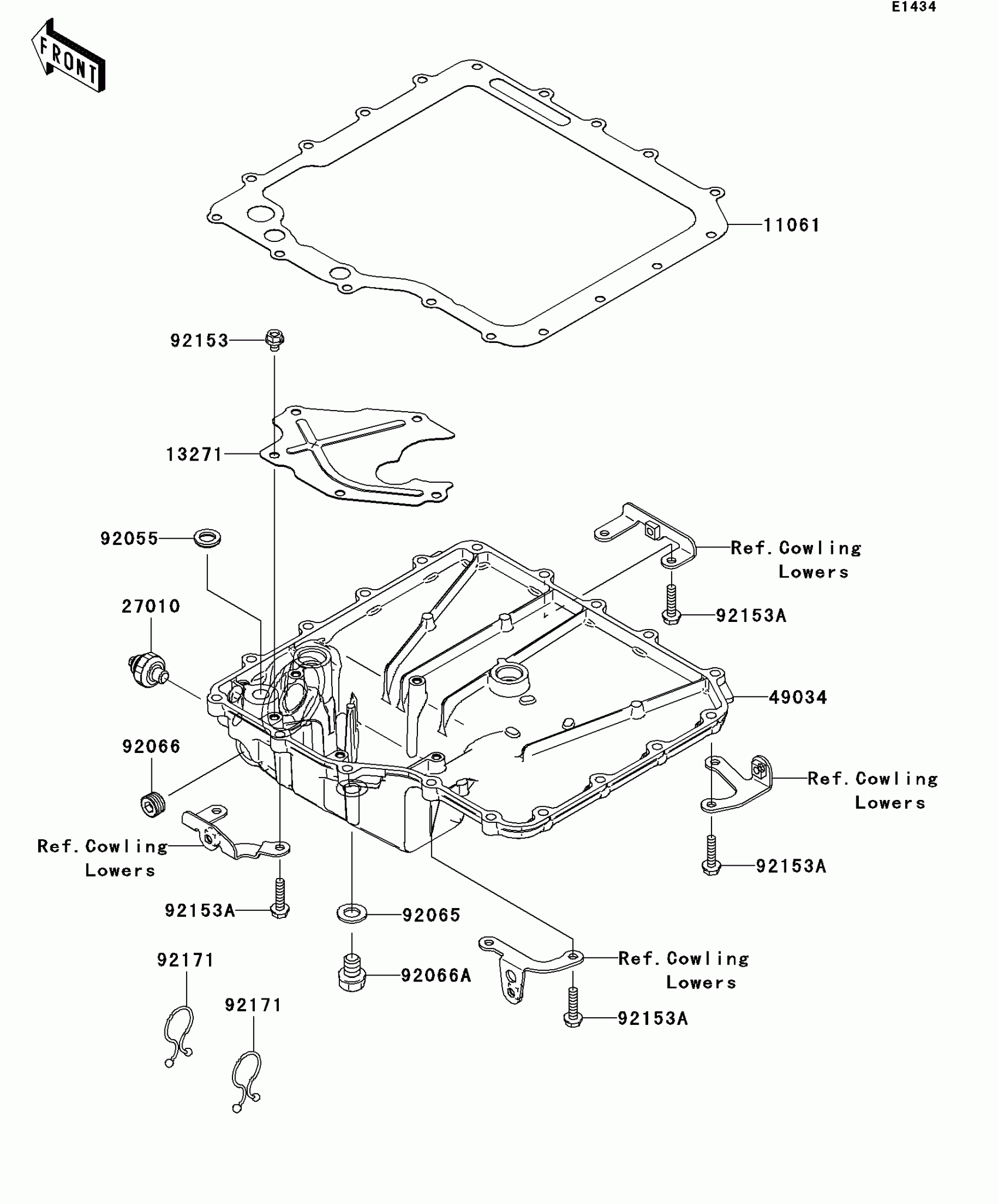

Kawasaki NINJA® ZX™-14 Oil Pan Diagram

Description

Price

11061

GASKET,OIL PAN

11061-0199

Unavailable

13271

PLATE

13271-0868

$16.97

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

49034

PAN-OIL

49034-0033

$262.33

92055

RING-O,19.5MM

92055-077

$6.57

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG

92066-0064

$4.87

92066A

PLUG,12X15

92066-0079

$6.02

92072

BAND,L=200

92072-0106

$5.65

92153

BOLT,FLANGED,6X8

92153-1530

$1.34

92153A

BOLT,FLANGED,6X25

92153-1569

$1.78

92171

CLAMP

92171-1185

$2.46

92171A

CLAMP

92171-1811

$10.30
