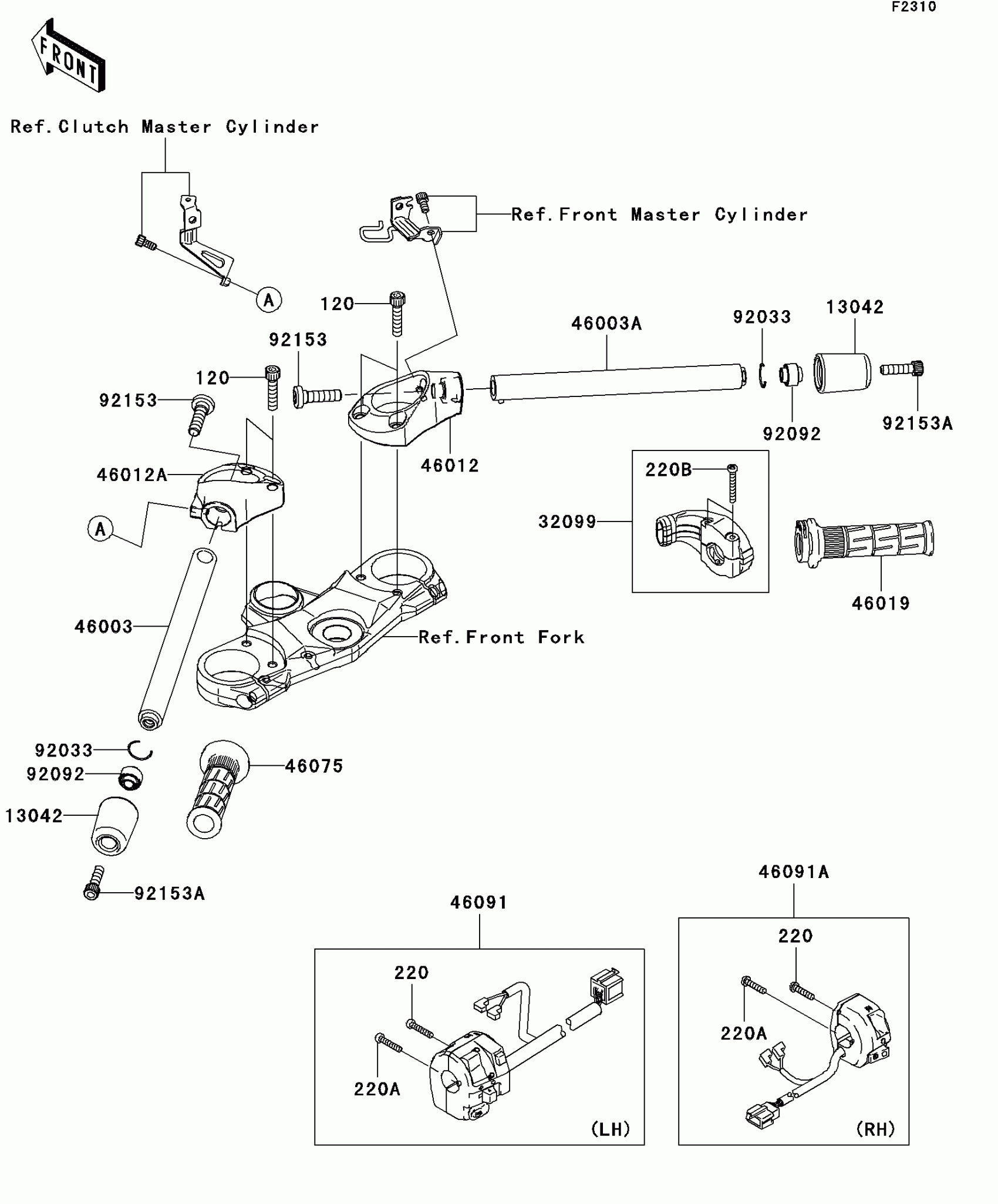

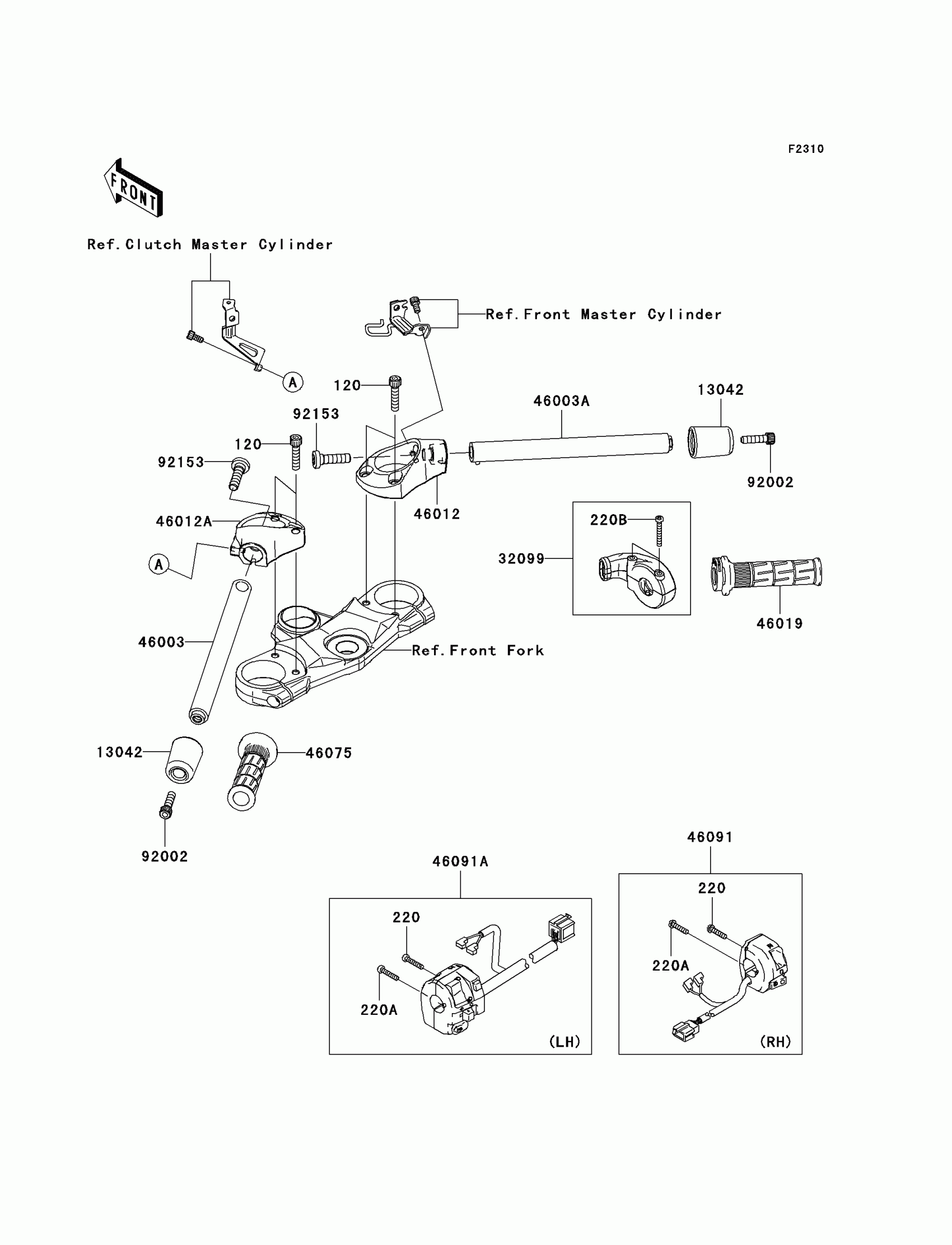

Kawasaki Ninja® ZX™-14 Handlebar Diagram

Description

Price

120

BOLT-SOCKET,8X35

120R0835

$3.93

13042

WEIGHT,HANDLE

13042-1006

Unavailable

220

SCREW-PAN-CROS,5X22

220C0522

$1.11

220A

SCREW-PAN-CROS,5X25

220C0525

$3.52

220B

SCREW-PAN-CROS,5X35

220C0535

$2.06

32099

CASE,THROTTLE CABLE

32099-1193

$41.24

46003

HANDLE,LH

46003-0083

$213.70

46003A

HANDLE,RH

46003-0084

$213.70

46012

HOLDER-HANDLE,RH

46012-0036

Unavailable

46012A

HOLDER-HANDLE,LH

46012-0037

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-0001

$41.80

46075

GRIP,HANDLE,LH

46075-1144

$20.96

46091

HOUSING-ASSY-CONTROL,LH

46091-0067

$188.56

46091A

HOUSING-ASSY-CONTROL,RH

46091-0081

$179.89

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92092

BUSHING-RUBBER,HANDLE

92092-1018

Unavailable

92153

BOLT,SOCKET,10X37

92153-1440

$7.75

92153A

BOLT,SOCKET,8X30

92153-1441

$5.52
