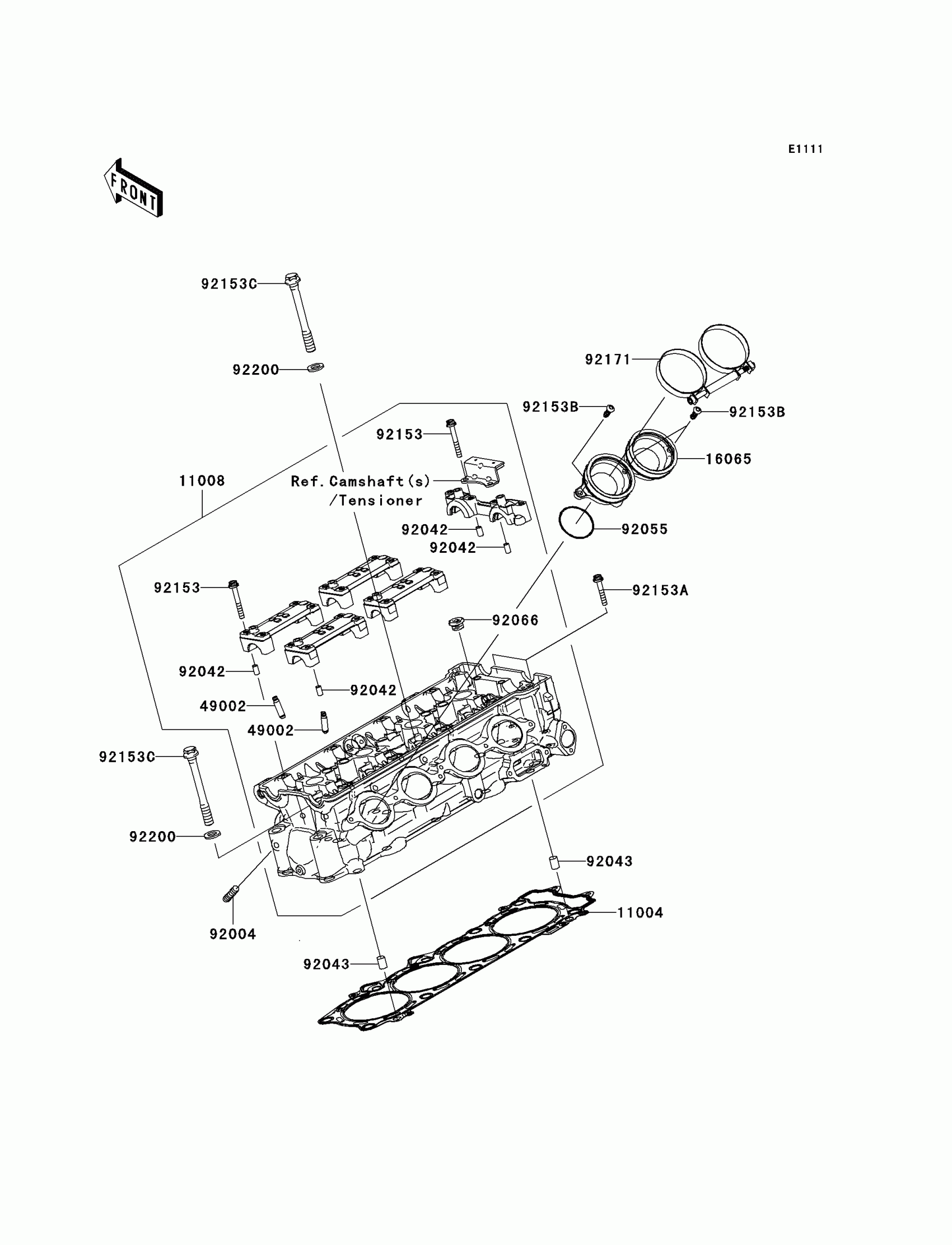

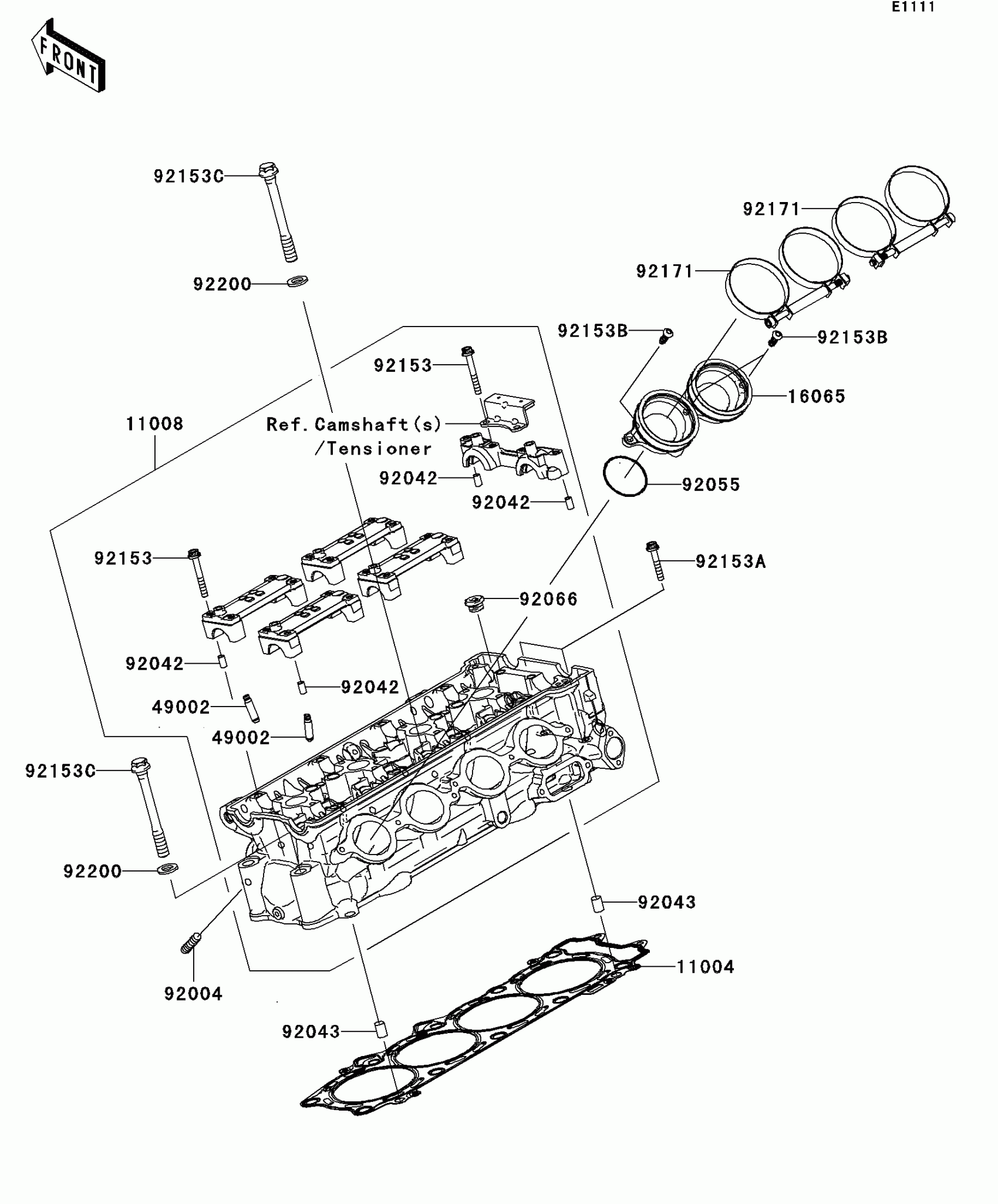

Kawasaki NINJA® ZX™-14 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0059

$142.56

11008

HEAD-COMP-CYLINDER

11008-0125

Unavailable

16065

HOLDER-CARBURETOR

16065-0026

$65.10

49002

GUIDE-VALVE

49002-0014

Unavailable

92004

STUD,8X22

92004-0025

$3.87

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,18X10

92066-0016

$12.90

92153

BOLT,SOCKET,6X45

92153-0656

$2.55

92153A

BOLT,SOCKET,6X35

92153-1556

$3.90

92153B

BOLT,TORX,6X18

92153-1629

$3.99

92153C

BOLT,FLANGED-SMALL,11X98

92153-1674

$18.13

92171

CLAMP

92171-0759

Unavailable

92200

WASHER,11.5X21X2.3

92200-0341

$4.92
