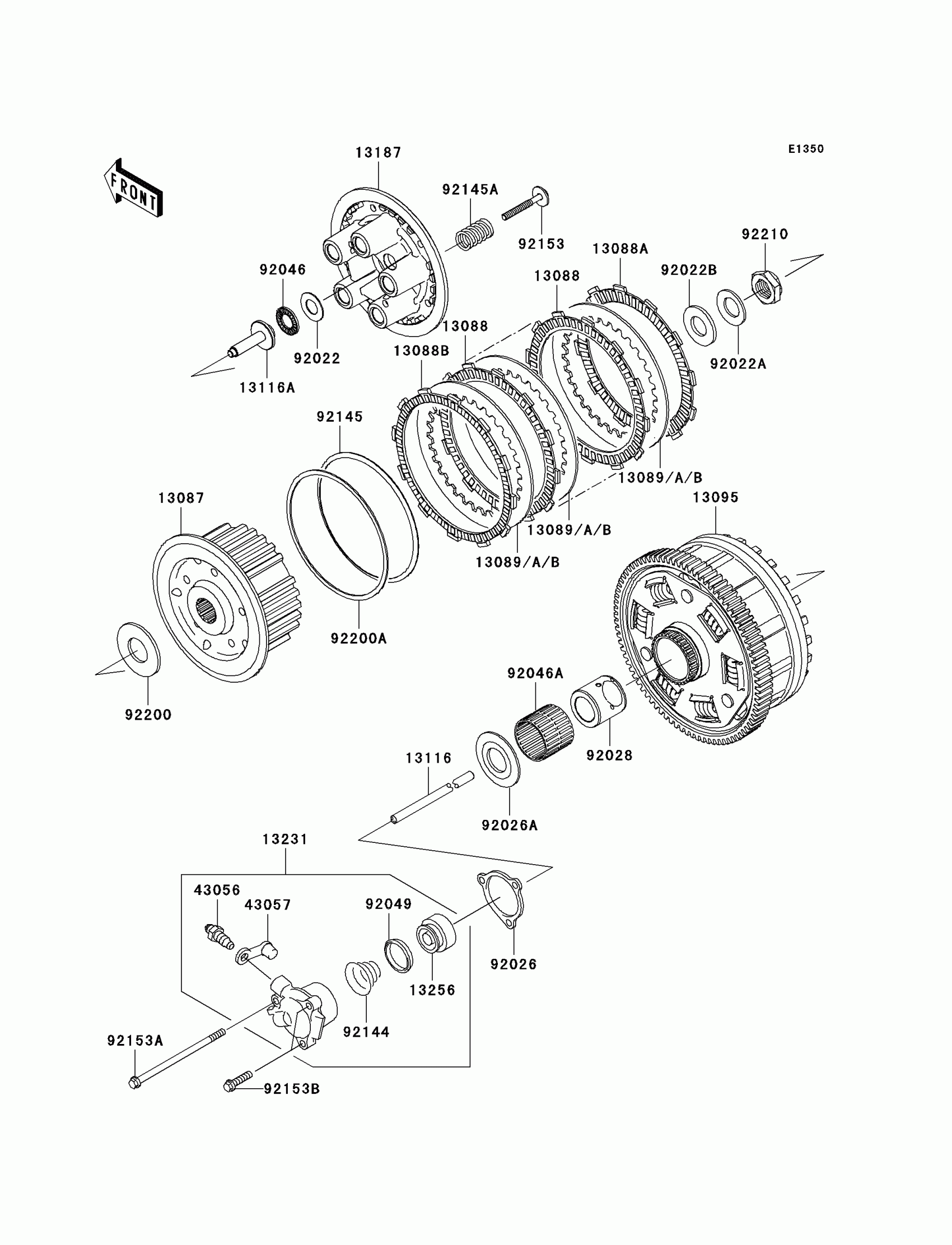

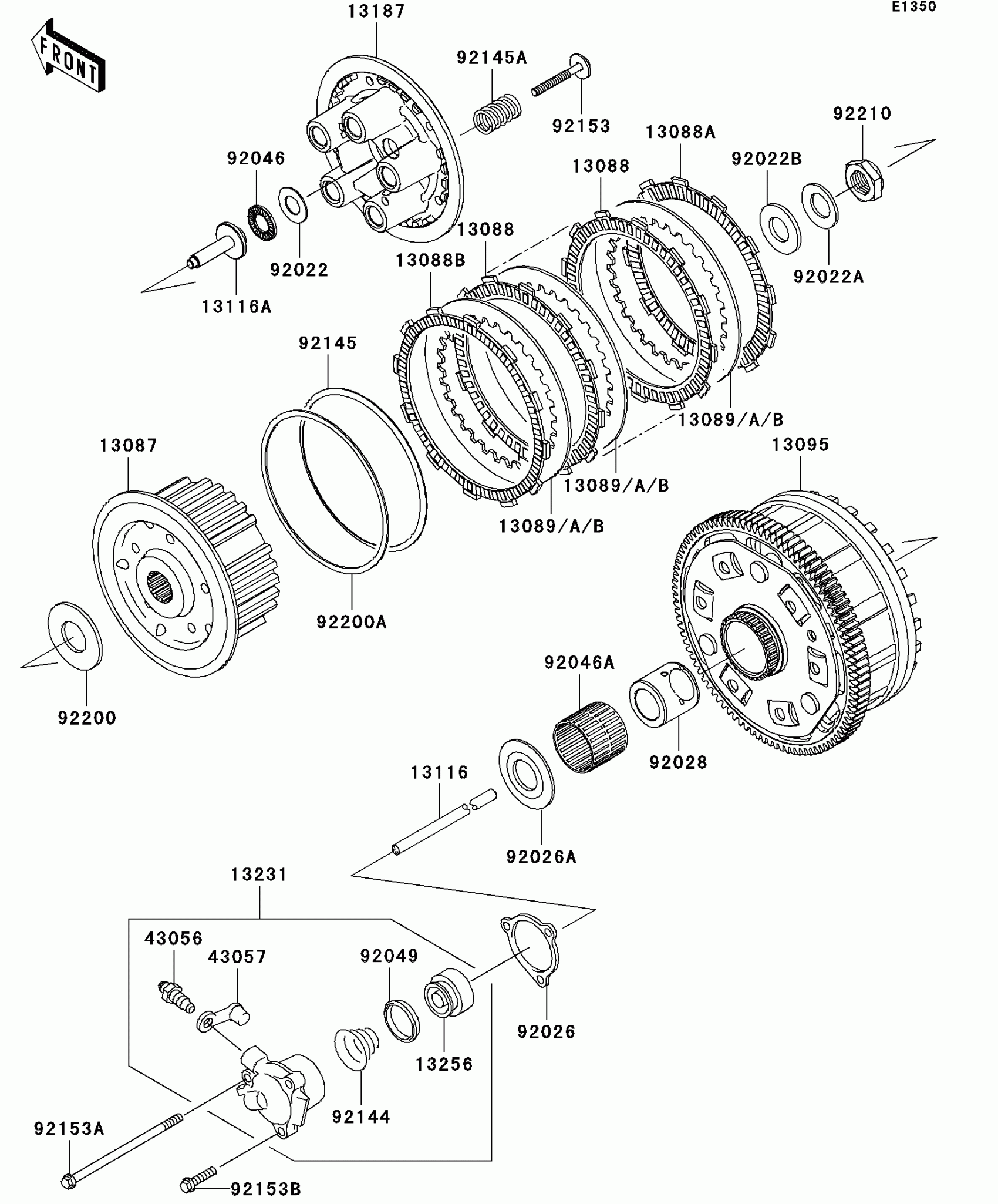

Kawasaki Ninja® ZX™-14 Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0028

$157.86

13088

PLATE-FRICTION

13088-0030

$14.21

13088A

PLATE-FRICTION

13088-0031

$14.21

13088B

PLATE-FRICTION

13088-0032

$14.21

13089

PLATE-CLUTCH,T=2.6

13089-0018

$11.97

13089A

PLATE-CLUTCH,T=2.3

13089-0019

Unavailable

13089B

PLATE-CLUTCH,T=2.9

13089-0020

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0068

$760.95

13116

ROD-PUSH

13116-0016

$37.21

13116A

ROD-PUSH,CLUTCH

13116-1102

$37.48

13187

PLATE-CLUTCH OPERATING

13187-0010

$87.48

13231

RELEASE-ASSY-CLUTCH

13231-0002

$106.83

13256

PISTON

13256-0004

$56.33

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

92022

WASHER,15.1X29X1.0

92022-1463

$3.44

92022A

WASHER,20.3X36X3.7

92022-1868

$7.25

92022B

WASHER,20.2X40X3.2

92022-2207

$1.92

92026

SPACER,CLUTCH RELEASE

92026-1263

$12.66

92026A

SPACER

92026-1497

$10.83

92028

BUSHING

92028-1934

$43.23

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92046A

BEARING-NEEDLE

92046-1267

$49.40

92049

SEAL-OIL

92049-0086

$7.84

92144

SPRING,CLUTCH RELEASE

92144-1084

$6.48

92145

SPRING,JUDDER

92145-0369

$21.05

92145A

SPRING,CLUTCH

92145-0426

$9.59

92153

BOLT,UPSET-WP,6X50

92153-1310

$3.15

92153A

BOLT,FLANGED-SMALL,6X115

92153-1564

$3.51

92153B

BOLT,FLANGED-SMALL,6X25

92153-1565

$1.81

92200

WASHER,25.3X54X3.0

92200-0262

$8.78

92200A

WASHER,124.3X133X1.4

92200-0289

$12.17

92210

NUT,20X1.5

92210-0236

Unavailable
