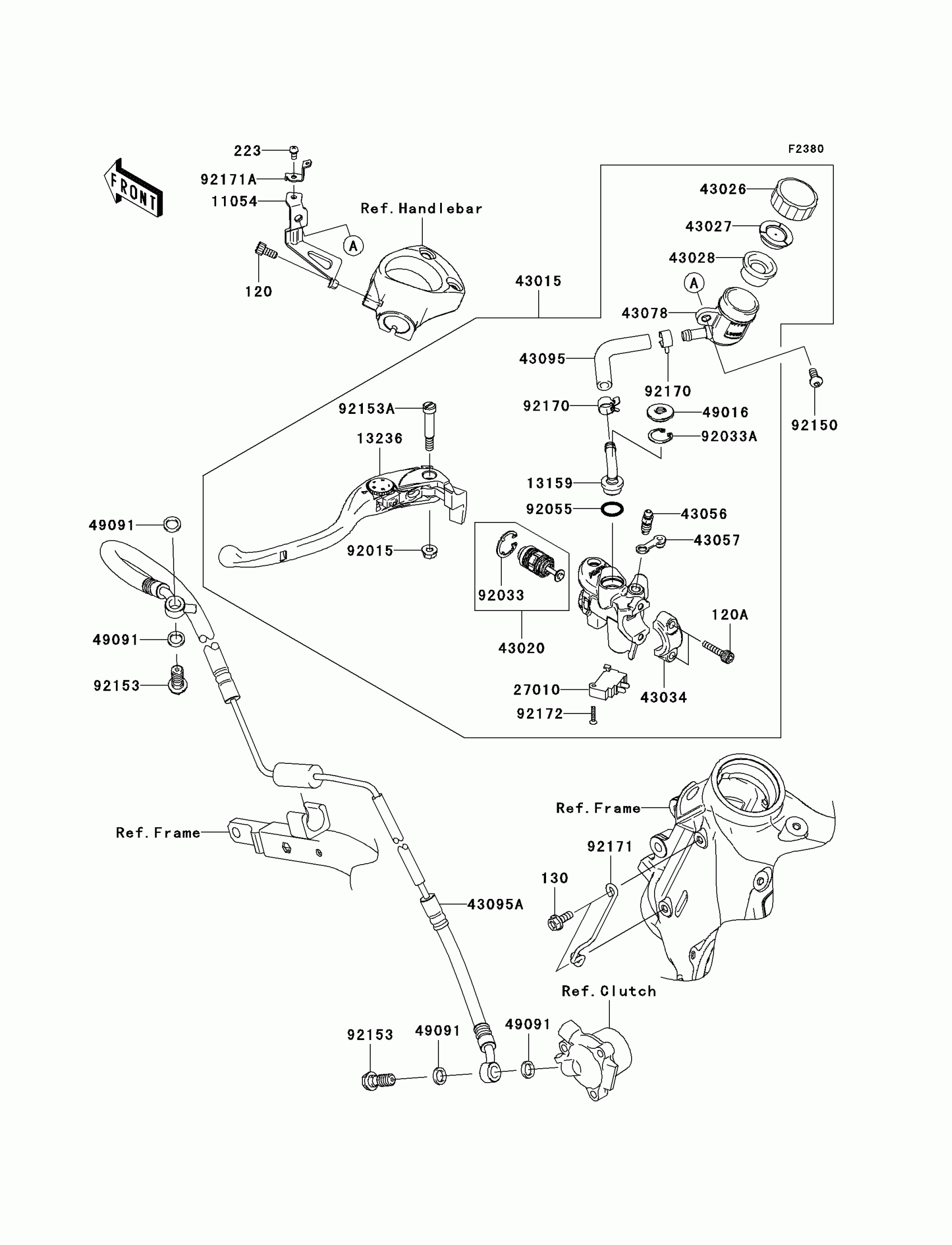

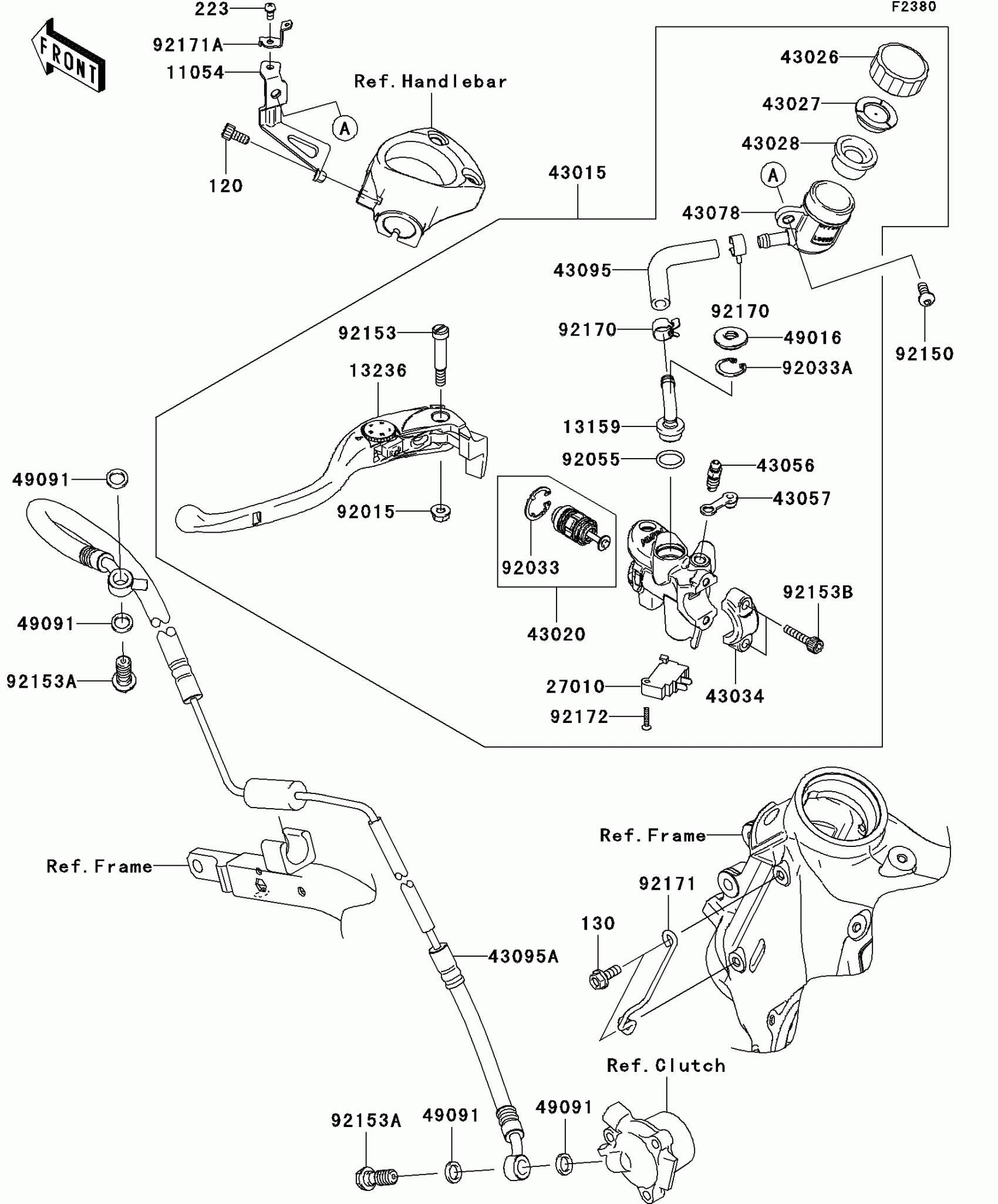

Kawasaki Ninja® ZX™-14 Clutch Master Cylinder Diagram

#

Description
Price

11054

BRACKET,CLUTCH RESERVOIR

11054-0207

$12.37

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,6X16

130BA0616

$1.20

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,CLUTCH

13236-0104

$81.42

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.28

27010

SWITCH,CLUTCH

27010-0051

$32.45

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0082

Unavailable

43020

PISTON-COMP-BRAKE

43020-0004

Unavailable

43026

CAP-BRAKE

43026-1070

$33.90

43027

PLATE-DIAPHRAGM

43027-1054

$5.67

43028

DIAPHRAGM

43028-1073

$19.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-1102

$28.25

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$11.98

43095A

HOSE-BRAKE,CLUTCH

43095-0210

$168.00

49016

COVER-SEAL

49016-1147

$6.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,SOCKET,6X14

92150-1836

$4.69

92153

BOLT,LEVER

92153-0868

$7.83

92153A

BOLT,OIL,L=23

92153-1419

$3.90

92153B

BOLT,SOCKET,6X22

92153-1518

$3.90

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,CLUTCH HOSE

92171-0633

$10.30

92171A

CLAMP,RESERVOIR CAP

92171-0637

$3.90

92172

SCREW,3X16

92172-0249

$2.79
