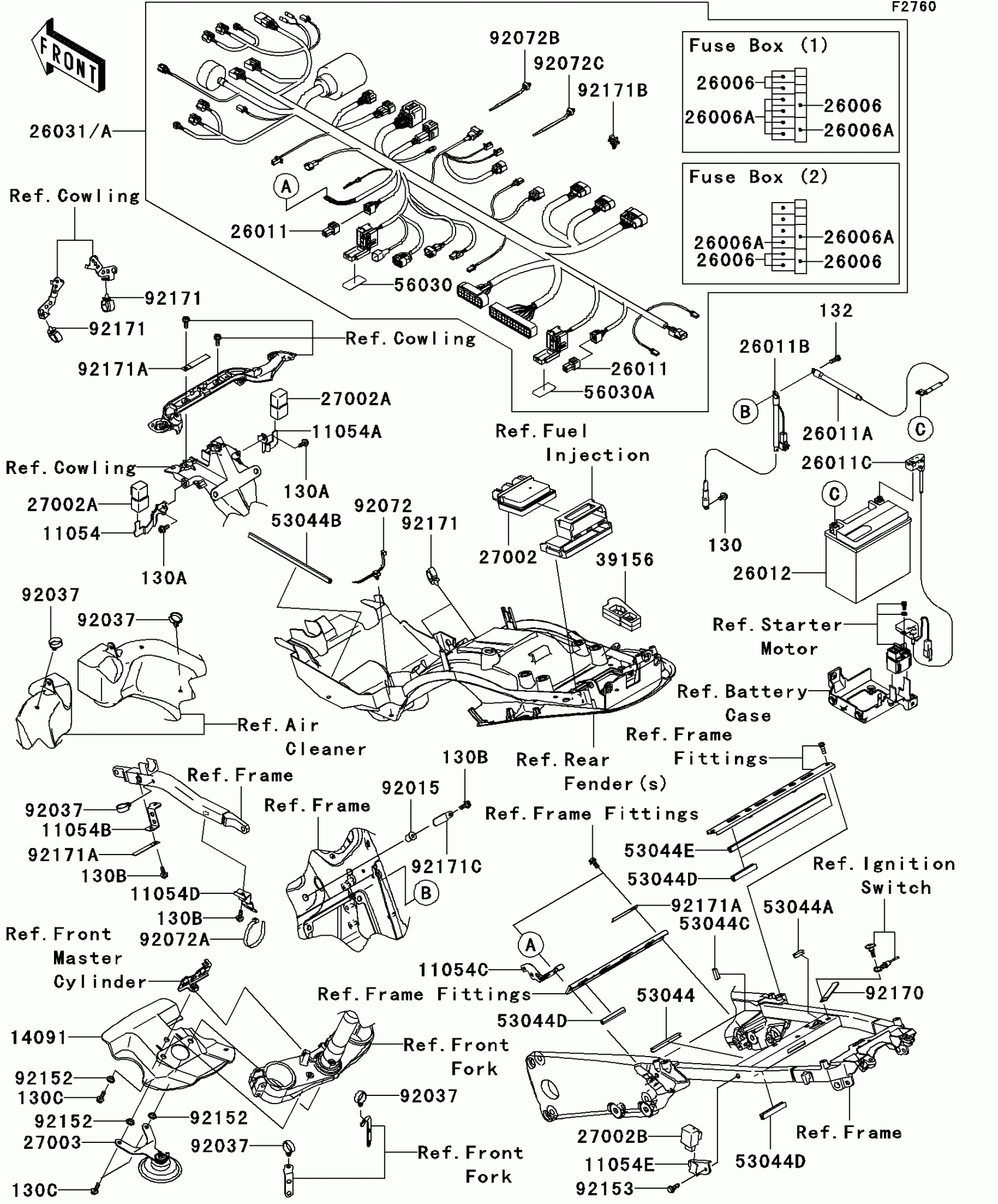

Kawasaki Ninja® ZX™-14 Chassis Electrical Equipment Diagram

#

Description
Price

11054

BRACKET,RELAY,LH

11054-0497

$15.20

11054A

BRACKET,RELAY,RH

11054-0498

$15.20

11054B

BRACKET,HARNESS

11054-0551

$8.68

11054C

BRACKET,HARNESS

11054-0676

$8.66

11054D

BRACKET,HARNESS

11054-0687

$11.51

11054E

BRACKET,SIGNAL LAMP RELAY

11054-0811

$8.99

14091

COVER,RADIATOR

14091-0624

$41.06

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD

26011-0037

$13.02

26011A

WIRE-LEAD,BATTERY(-)

26011-0087

$29.43

26011B

WIRE-LEAD,BATTERY(-)

26011-0093

$32.24

26011C

WIRE-LEAD,BATTERY(+)

26011-0120

$56.84

26012

BATTERY,FTZ14-BS,12V 14AH

26012-1409

Unavailable

26031A

HARNESS,MAIN

26031-0518

$1,023.37

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-0036

$85.73

39156

PAD,HARNESS CLAMP

39156-0179

$9.62

53044

TRIM

53044-0018

$4.65

53044A

TRIM,L=20

53044-0021

$3.39

53044B

TRIM,L=220

53044-0022

$13.60

53044C

TRIM,L=15

53044-0025

$3.39

53044D

TRIM,L=60

53044-1249

$6.57

53044E

TRIM,AIR DUCT COVER

53044-1265

$11.99

56030

LABEL,FUSE BOX1

56030-0110

$3.87

56030A

LABEL,FUSE BOX

56030-0112

$4.09

92015

NUT

92015-1700

$8.58

92037

CLAMP,HOSE

92037-1827

$7.45

92072

BAND

92072-0066

$3.39

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND

92072-1392

$3.74

92072C

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92153

BOLT,6X20

92153-1672

$1.43

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,L=60

92171-0652

$2.61

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X18

130BA0618

$1.54

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

92171B

CLAMP

92171-0741

$11.00

92171C

CLAMP

92171-0779

$7.47
