Description

Price

13236

LEVER-COMP

13236-0065

$93.07

14073

DUCT,FUNNEL

14073-0042

$70.06

14091

COVER

14091-0286

$14.36

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0009

$123.88

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY

16163-0043

$2,419.61

21176

SENSOR,TPS

21176-0002

$217.59

21176A

SENSOR,TPS

21176-0003

$217.59

26030

HARNESS

26030-1672

$129.64

31064

PIPE-COMP,FUEL

31064-0019

$69.08

31064A

PIPE-COMP,FUEL

31064-0020

$41.11

32144

PIPE-ASSY,FUEL

32144-0003

$41.11

49033

NOZZLE-INJECTION

49033-0003

$134.55

49056

PIPE-INJECTION

49056-0007

$112.23

49056A

PIPE-INJECTION

49056-0008

$112.23

59071

JOINT,3WAY,T

59071-3752

$10.19

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92033

RING-SNAP,FAST IDLE

92033-0004

$2.78

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-1671

$3.73

92068

PLUG,12X25

92068-006

$4.26

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92081

SPRING

92081-1620

$4.96

92144

SPRING

92144-1451

$9.58

92151

BOLT,6X22

92151-1236

Unavailable

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0080

$5.00

92172B

SCREW

92172-0169

$5.00

92191

TUBE,3X7X30

92191-0025

$2.43

92191A

TUBE,3X7X45

92191-0150

$8.05

92191B

TUBE,3X7X110

92191-0151

$10.20

92191C

TUBE,3X7X160.5

92191-0152

$15.20

92200

WASHER,FAST IDLE

92200-0033

$2.80

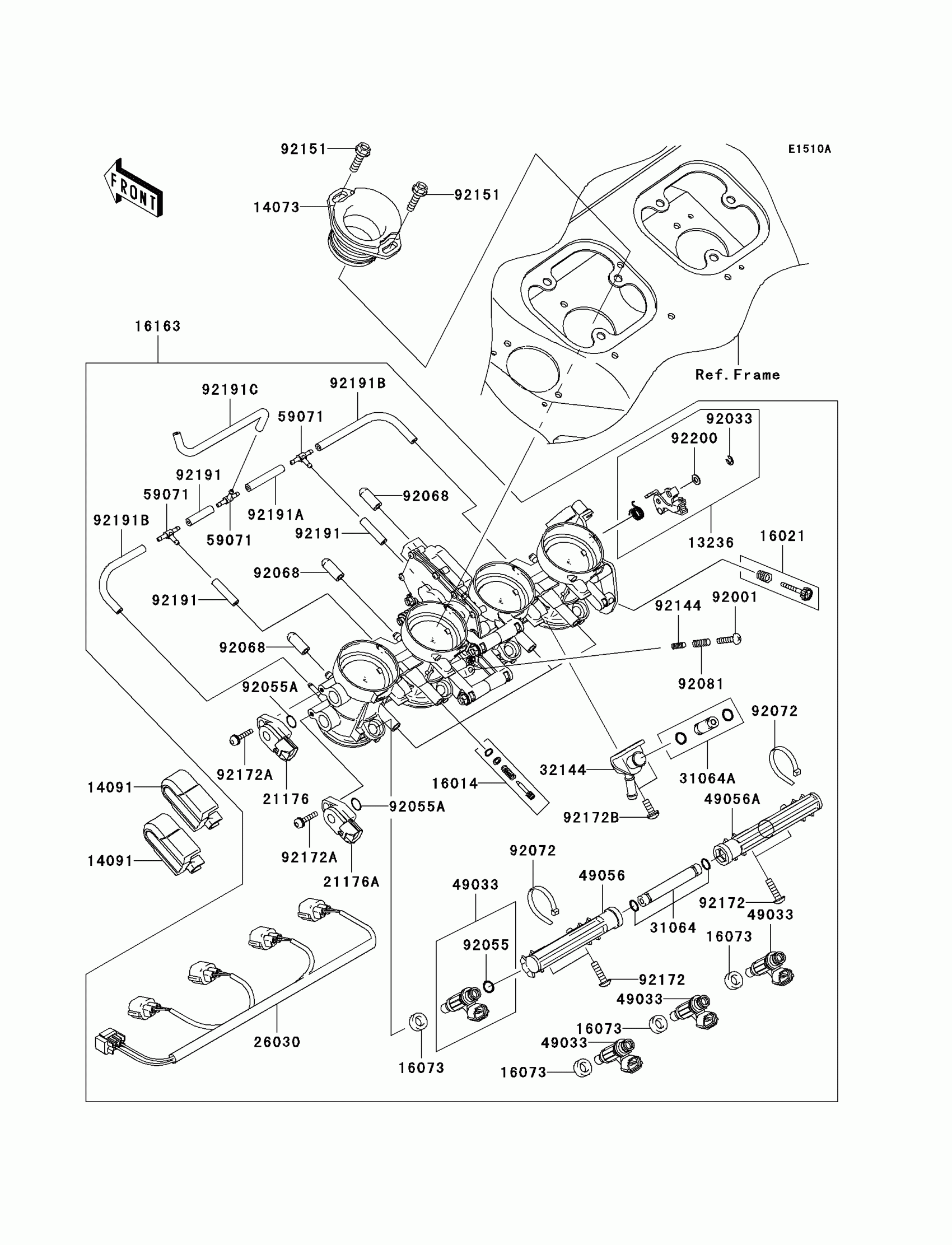

Kawasaki Ninja® ZX™-12R Throttle(B3/B4) Diagram

LEVER-COMP

DUCT,FUNNEL

COVER

SCREW-PILOT AIR

SCREW-THROTTLE STOP

INSULATOR

THROTTLE-ASSY

SENSOR,TPS

SENSOR,TPS

HARNESS

PIPE-COMP,FUEL

PIPE-COMP,FUEL

PIPE-ASSY,FUEL

NOZZLE-INJECTION

PIPE-INJECTION

PIPE-INJECTION

JOINT,3WAY,T

BOLT,THROTTLE ADJUST

RING-SNAP,FAST IDLE

RING-O,INJECTION NOZZLE

RING-O

PLUG,12X25

BAND,SUB-HARNESS

SPRING

SPRING

BOLT,6X22

SCREW,PIPE INJECTION

SCREW

SCREW

TUBE,3X7X30

TUBE,3X7X45

TUBE,3X7X110

TUBE,3X7X160.5

WASHER,FAST IDLE
