2000 Kawasaki Ninja® ZX™-12R Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

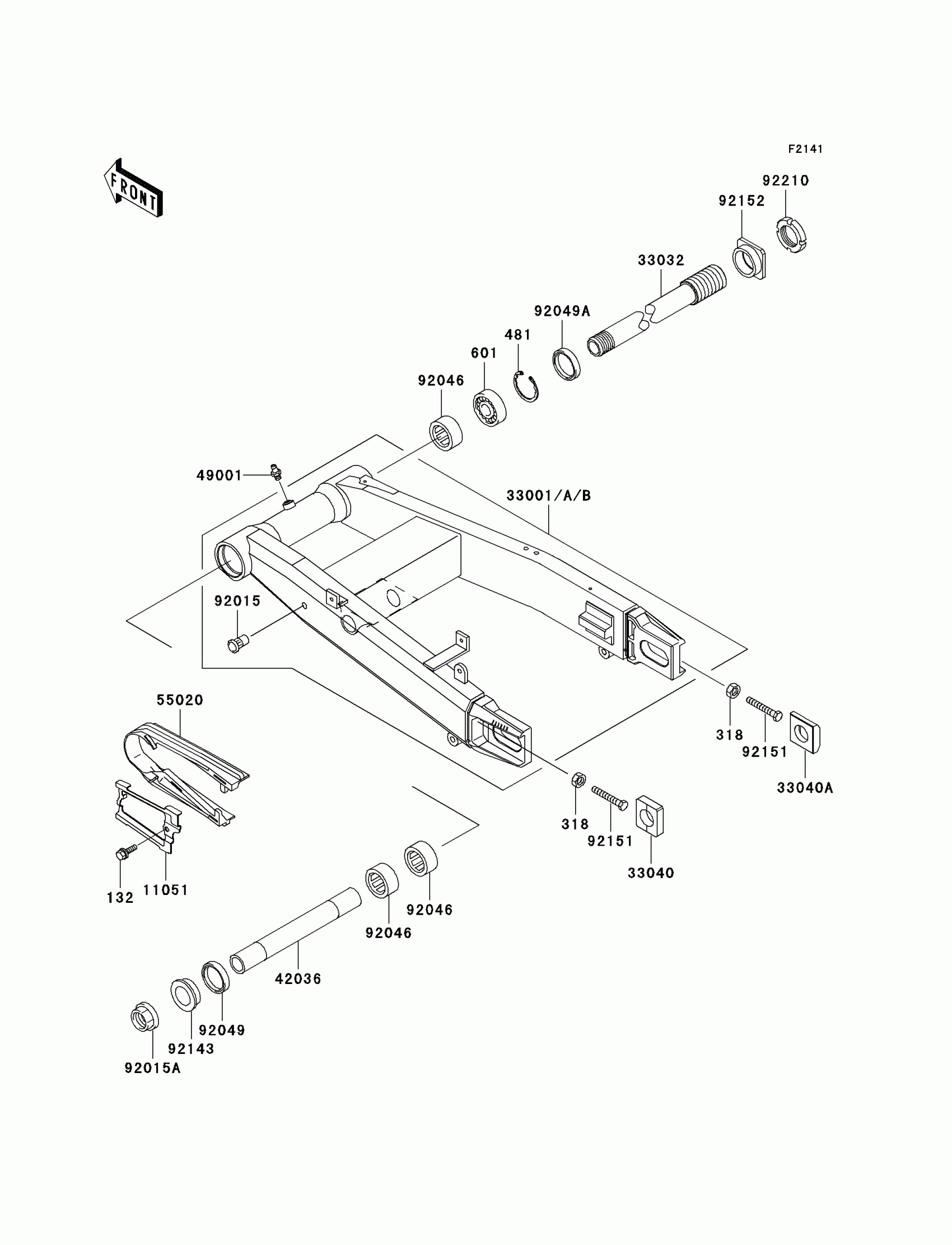

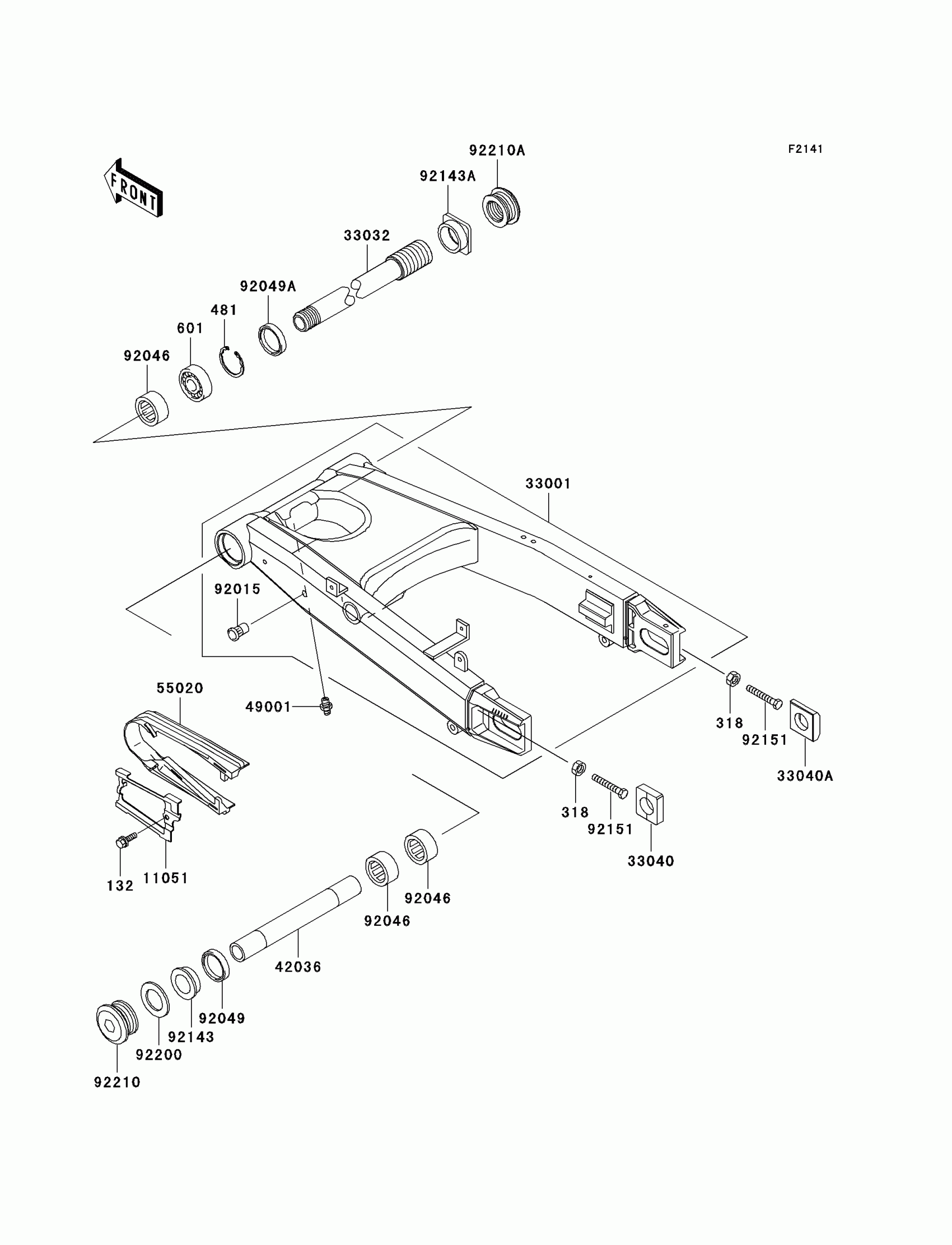

2000 Kawasaki Ninja® ZX™-12R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

481

CIRCLIP-TYPE-C,47MM

481J4700

1
Out of stock

601

BEARING-BALL,#6005U

601B6005U

1
Out of stock

11051

BRACKET,CHAIN GUARD

11051-1912

1
Out of stock

33001

ARM-COMP-SWING,SILVER

33001-1572-TX

1
Out of stock

33032

SHAFT-SWING ARM

33032-1193

1
Out of stock

33040

ADJUSTER-CHAIN,RH

33040-1114

1
Out of stock

33040A

ADJUSTER-CHAIN,RH

33040-1180

1
Out of stock

42036

SLEEVE,SWING ARM,L=224.5

42036-1312

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

55020

GUARD,CHAIN

55020-1695

1
Out of stock

92015

NUT,POP,6MM,L=16.5

92015-1792

1
Out of stock

92046

BEARING-NEEDLE,BM3520

92046-1205

1
Out of stock

92049

SEAL-OIL,MHA 35X47X5

92049-1381

1
Out of stock

92049A

SEAL-OIL,KC38X47X6

92049-1521

1
Out of stock

92143

COLLAR,SWING ARM,L=12.5

92143-1481

1
Out of stock

92143A

COLLAR,SWING ARM,L=15.5

92143-1681

1
Out of stock

92151

BOLT,8X55

92151-1578

1
Out of stock

92200

WASHER,25.5X42X2.3

92200-1084

1
Out of stock

92210

NUT,M25X1.5

92210-1191

1
Out of stock

92210A

NUT,M32X1.5

92210-1192

1
Out of stock
