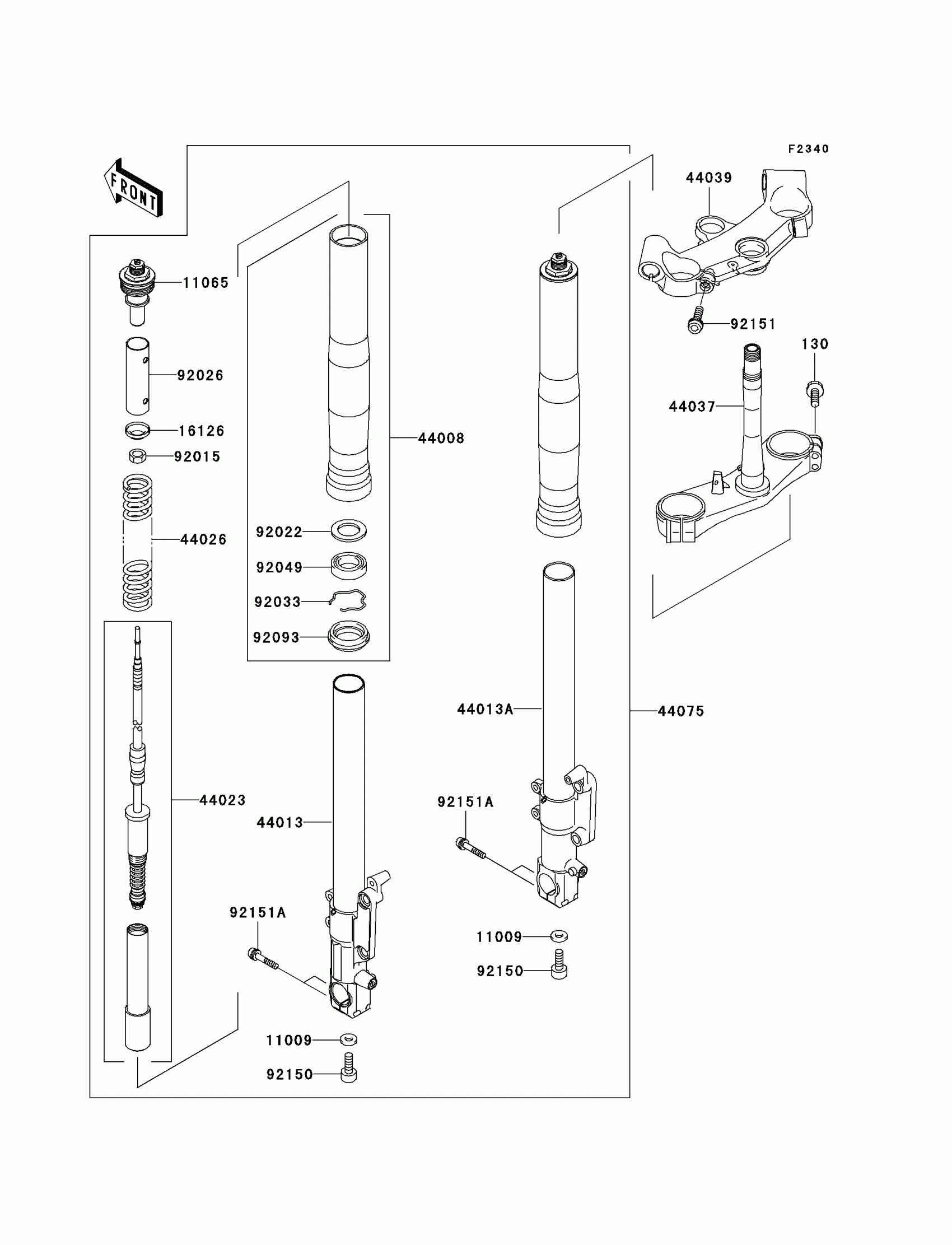

Kawasaki Ninja® ZX™-12R Front Fork Diagram

Description

Price

130

BOLT-FLANGED,8X35

130G0835

Unavailable

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11065

CAP

11065-1140

Unavailable

16126

VALVE

16126-1381

$36.17

44008

PIPE-FORK OUTER

44008-1047

Unavailable

44013

PIPE-FORK INNER,LH

44013-1469

$743.30

44013A

PIPE-FORK INNER,RH

44013-1470

$743.30

44023

CYLINDER-SET-FORK

44023-1143

Unavailable

44026

SPRING-FRONT FORK

44026-1700

Unavailable

44037

HOLDER-FORK UNDER

44037-1395

Unavailable

44039

HOLDER-FORK UPPER

44039-1298

Unavailable

44075

DAMPER-SET-FORK

44075-1105

$2,146.23

92015

NUT

92015-1905

$18.34

92022

WASHER

92022-1299

$6.55

92026

SPACER,FORK,L=109

92026-1604

$38.55

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$18.69

92093

SEAL,FORK OUTER TUBE

92093-1480

$14.02

92150

BOLT,12X22

92150-1398

$8.95

92151

BOLT,SOCKET,8X25

92151-1681

$2.75

92151A

BOLT,SOCKET,8X40

92151-1683

$7.51
