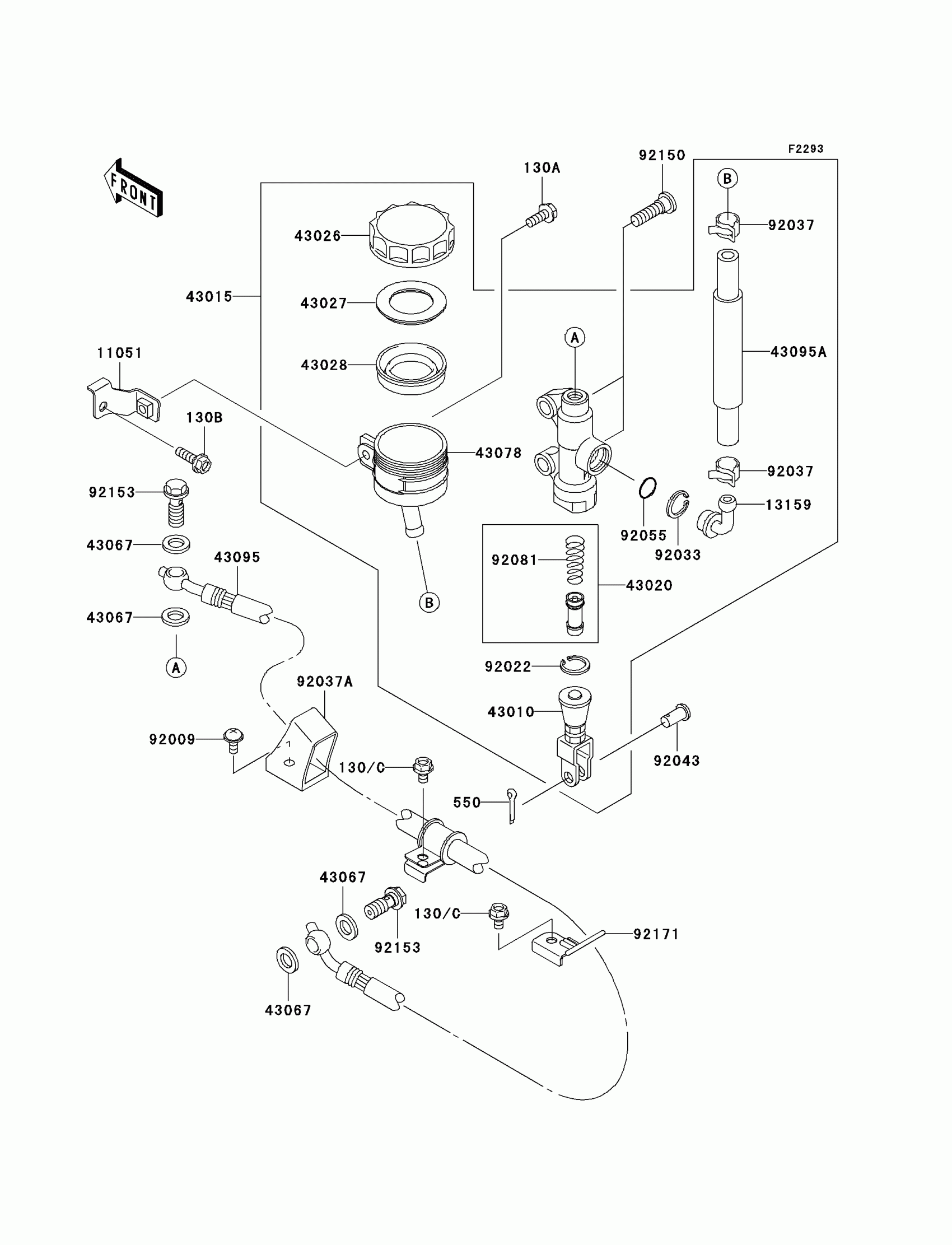

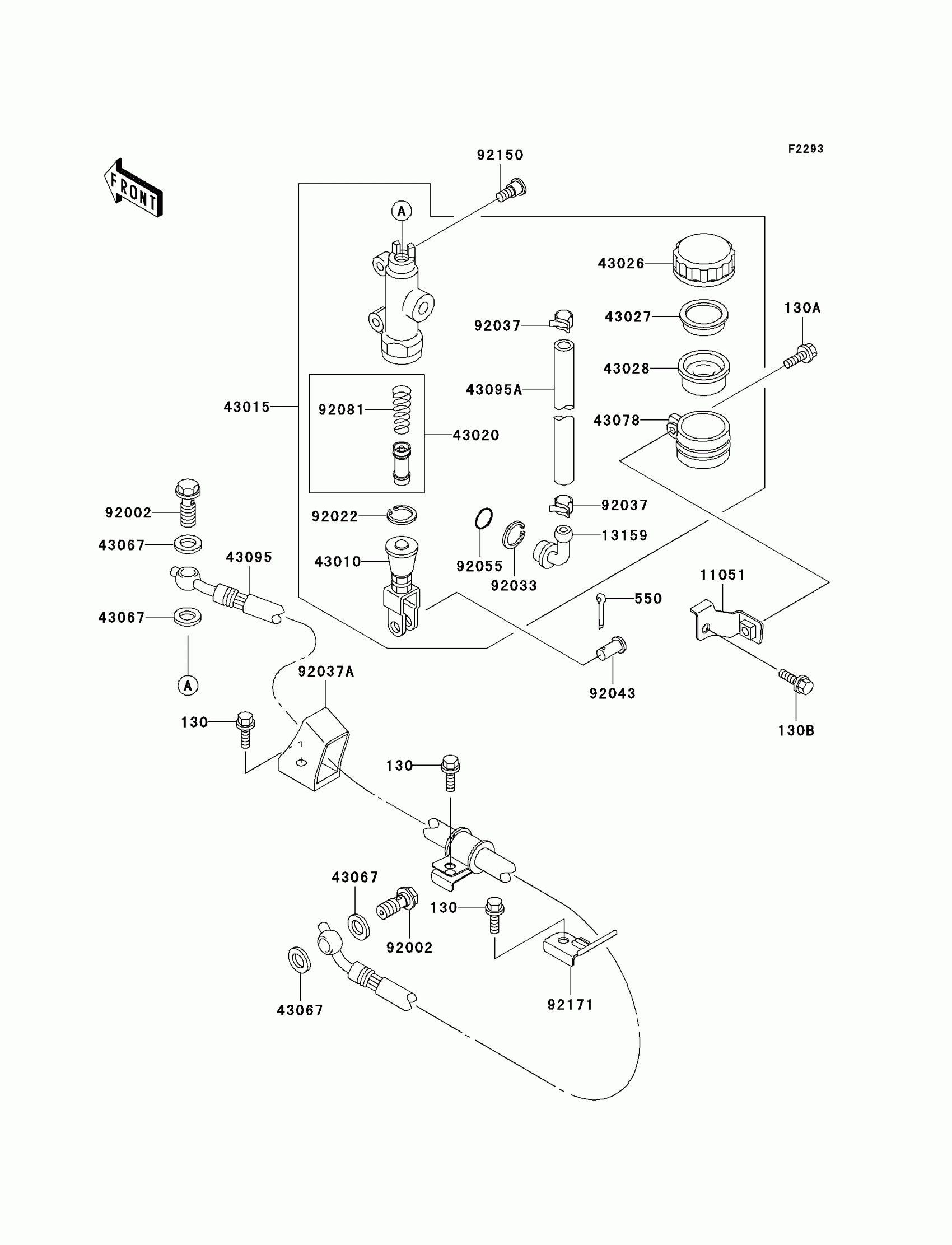

Kawasaki Ninja® ZX™-12R Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED

130J0620

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

11051

BRACKET,RESERVOIR TANK

11051-1378

$9.92

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43015

CYLINDER-ASSY-MASTER,RR

43015-1649

$410.28

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR

43095-1154

$87.98

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-1161

$38.84

92002

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92150

BOLT,SOCKET,8X30

92150-1843

$2.98

92171

CLAMP,BRAKE HOSE,RR

92171-1162

$20.63
