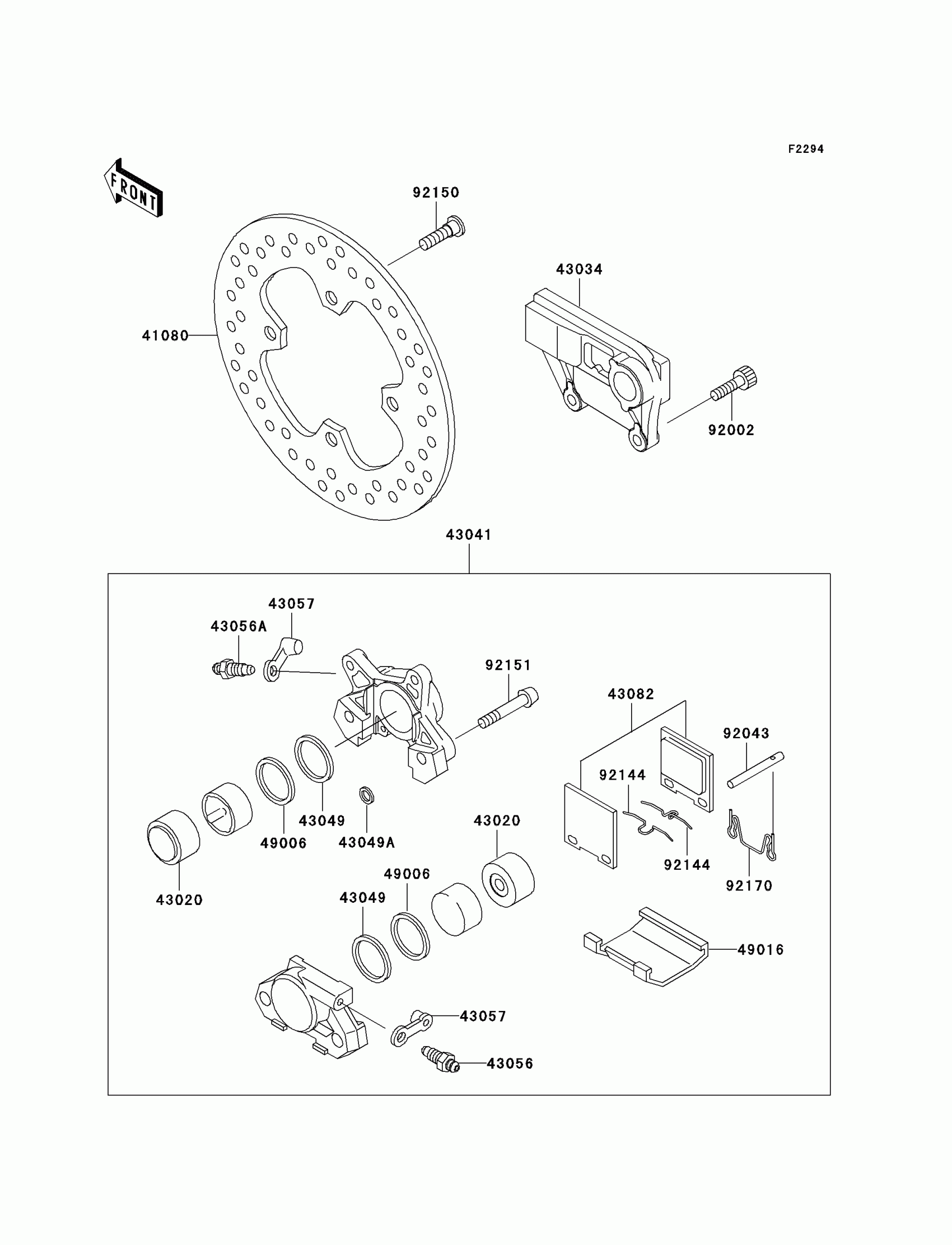

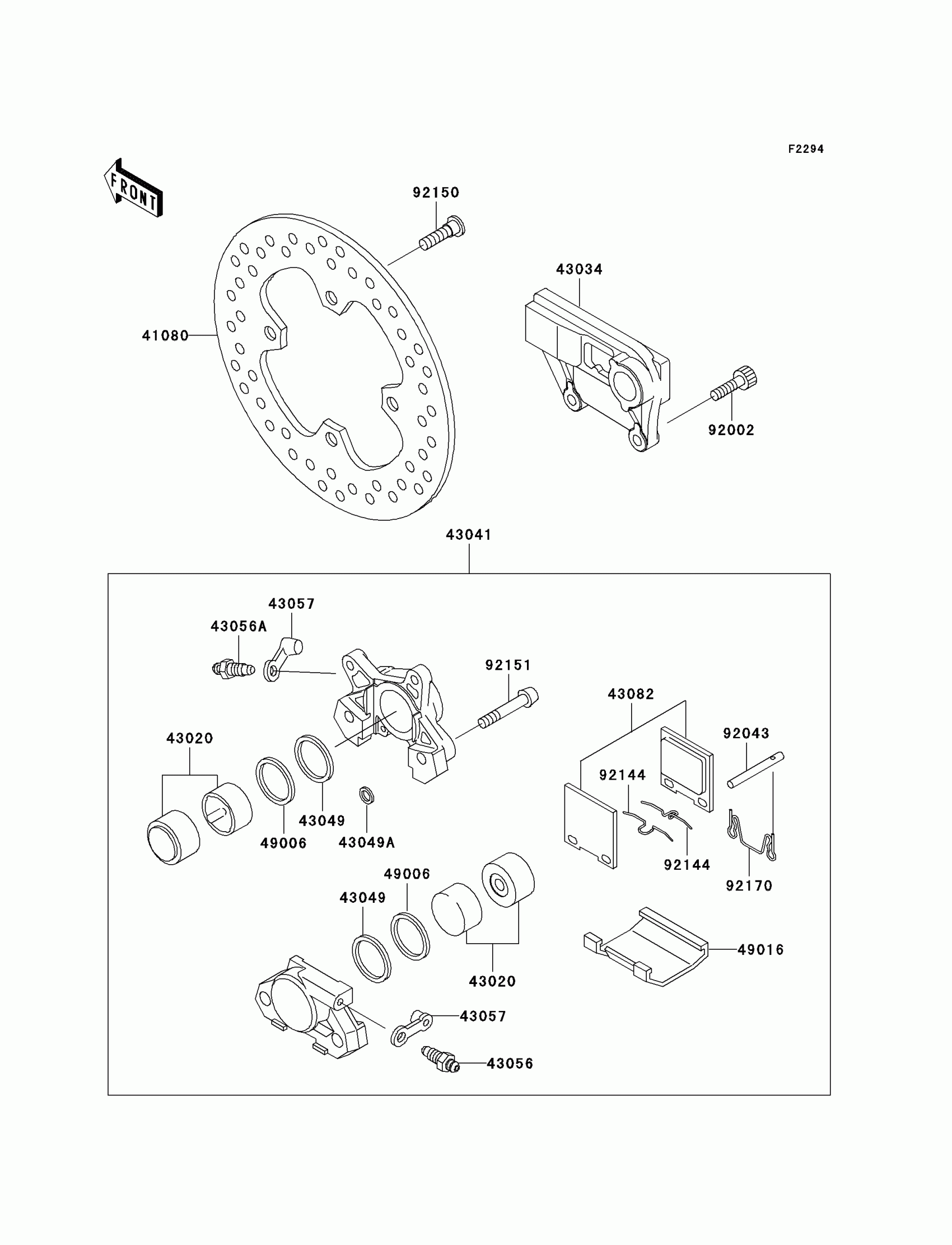

Kawasaki Ninja® ZX™-12R Rear Brake Diagram

Description

Price

41080

DISC,RR,GOLD NO.1

41080-1469-CL

$298.01

43020

PISTON-COMP-BRAKE

43020-1111

$70.84

43034

HOLDER-BRAKE,REAR CALIPER

43034-1158

$132.45

43041

CALIPER-ASSY,RR,A.GOLD

43041-1708-8Q

$412.83

43049

PACKING,PISTON SEAL

43049-001

$11.06

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1257

$72.79

49006

BOOT,PISTON SEAL

49006-1212

$23.25

49016

COVER-SEAL

49016-1145

$13.54

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92043

92043-1522

$4.39

92144

SPRING,PAD

92144-1401

$5.46

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,SOCKET,10X45

92151-1106

$11.07

92170

CLAMP

92170-1635
