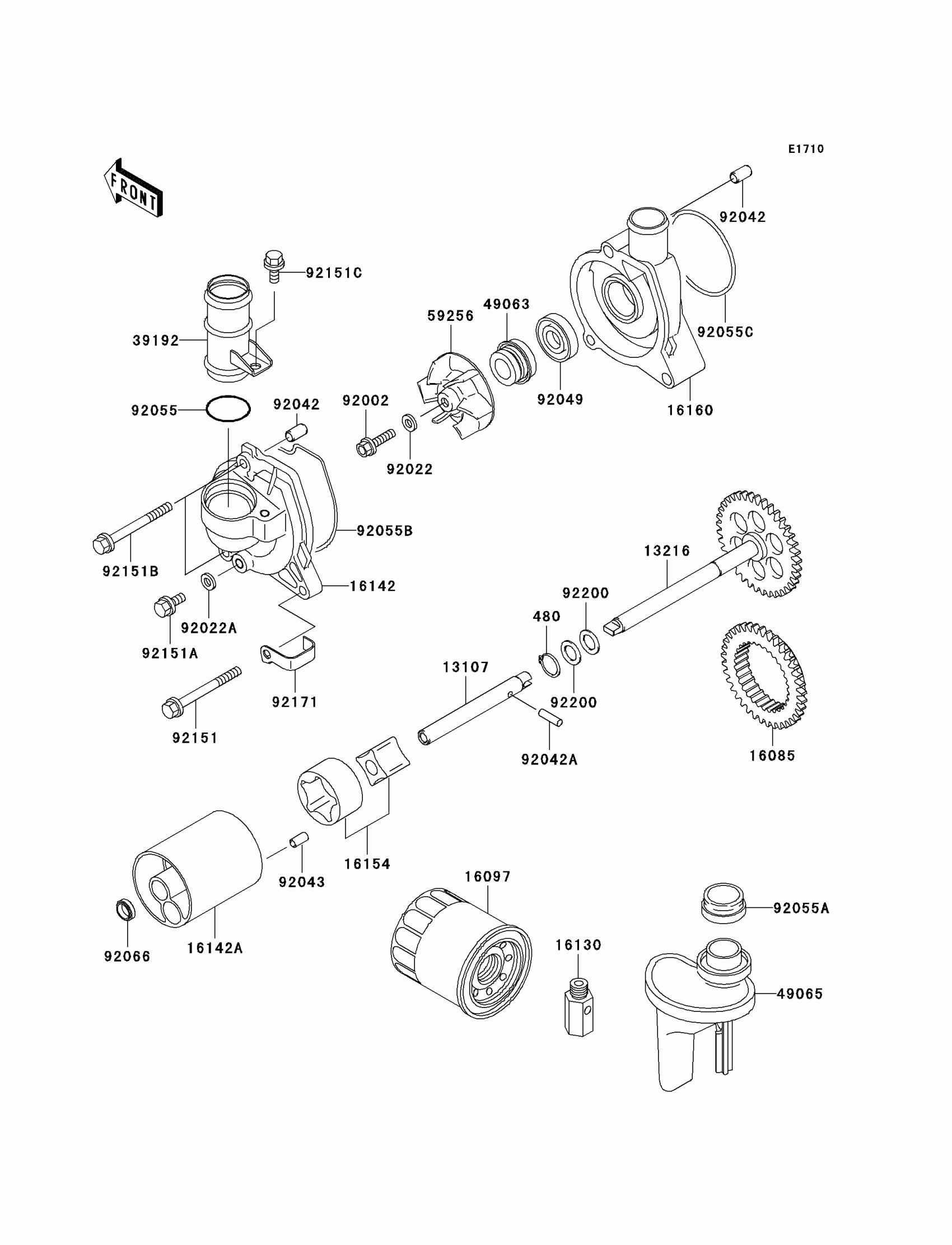

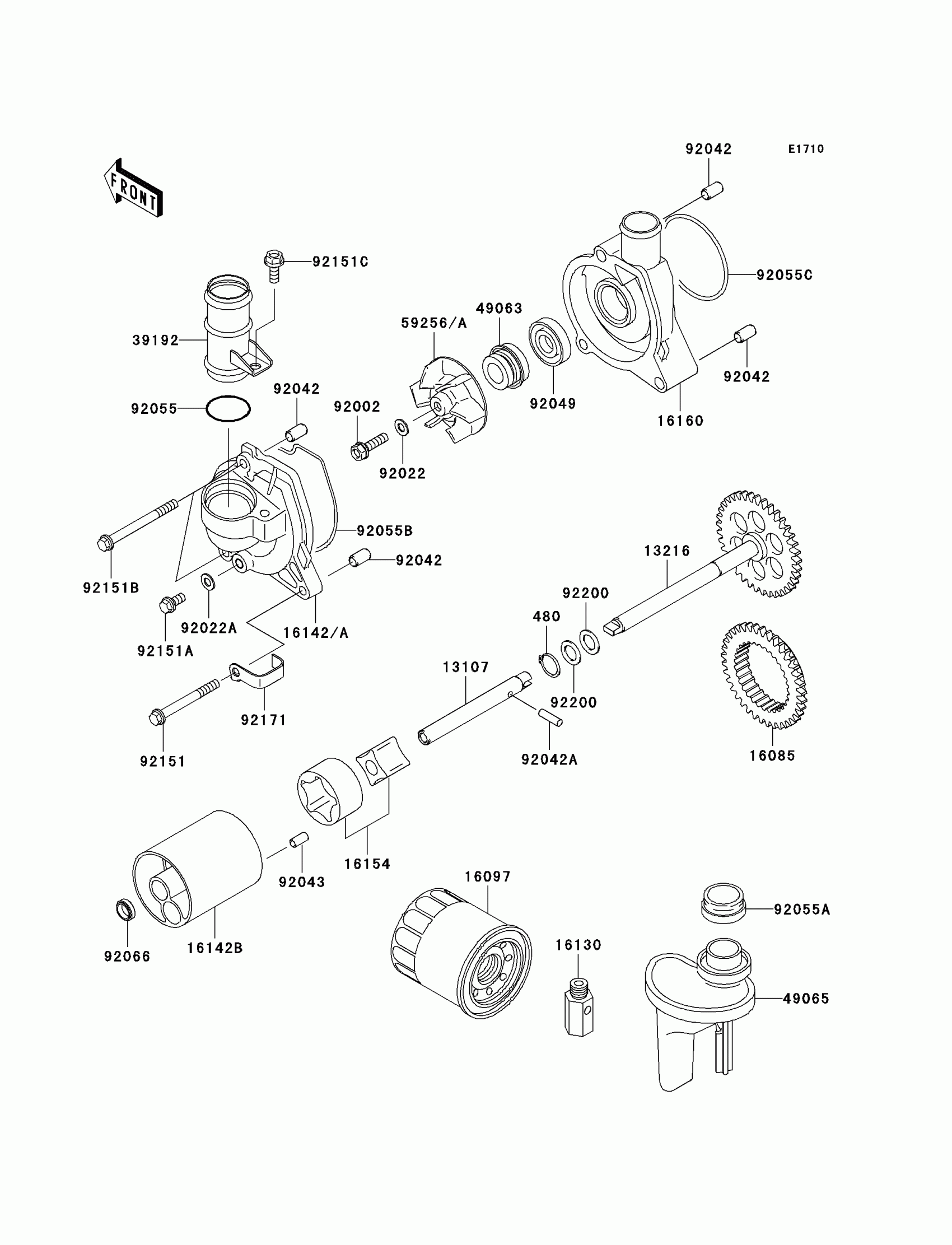

Kawasaki Ninja® ZX™-12R Oil Pump/Oil Filter Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

13107

SHAFT,PUMP,LH

13107-1419

$37.32

13216

GEAR-COMP,PUMP,RH

13216-1183

$131.06

16085

GEAR

16085-1326

$128.52

16097

FILTER-ASSY-OIL

16097-1070

$14.50

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,WATER

16142-1157

Unavailable

16142A

COVER-PUMP,OIL

16142-1165

$79.46

16154

ROTOR-PUMP

16154-1124

$70.09

16160

BODY,WATER PUMP

16160-1324

$131.06

39192

PIPE-WATER

39192-1128

$38.16

49063

SEAL-MECHANICAL,WATER PUMP

49063-1002

$20.06

49065

FILTER-OIL

49065-1084

$34.34

59256

IMPELLER

59256-1076

$46.95

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92042A

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,4.2X6X12

92043-1262

$4.31

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,27.6X3.2

92055-1328

$7.62

92055A

RING-O,OIL FILTER

92055-1503

$9.51

92055B

RING-O,WATER PUMP COVER

92055-1602

$11.75

92055C

RING-O,59.6X2.4

92055-3018

$6.22

92066

PLUG

92066-1537

$15.02

92151

BOLT,6X55

92151-1132

$4.87

92151A

BOLT,6X12

92151-1133

Unavailable

92151B

BOLT,6X65

92151-1199

$4.87

92151C

BOLT,FLANGED,6X16

92151-1774

Unavailable

92171

CLAMP

92171-1179

$10.28

92200

WASHER

92200-1009

$5.07
