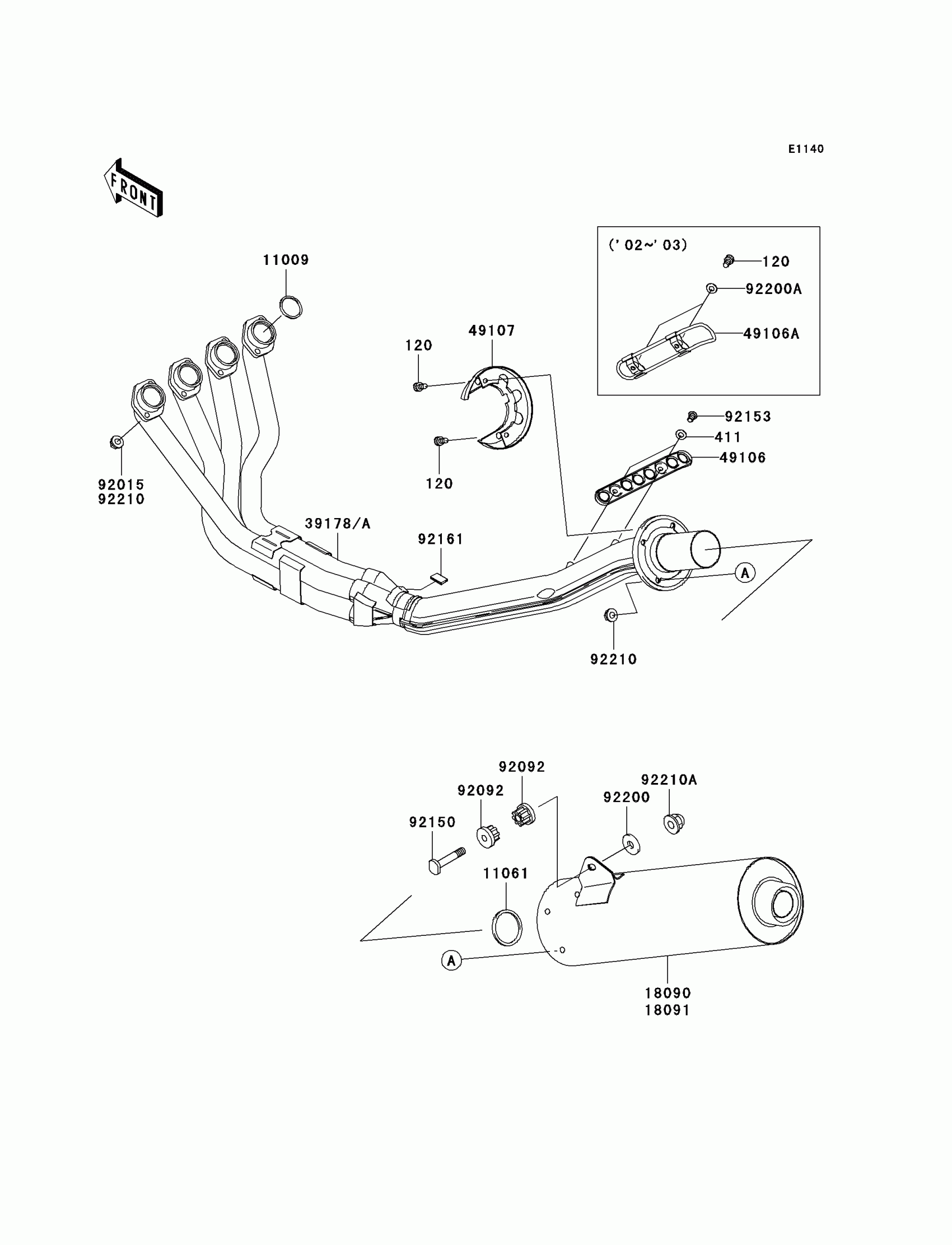

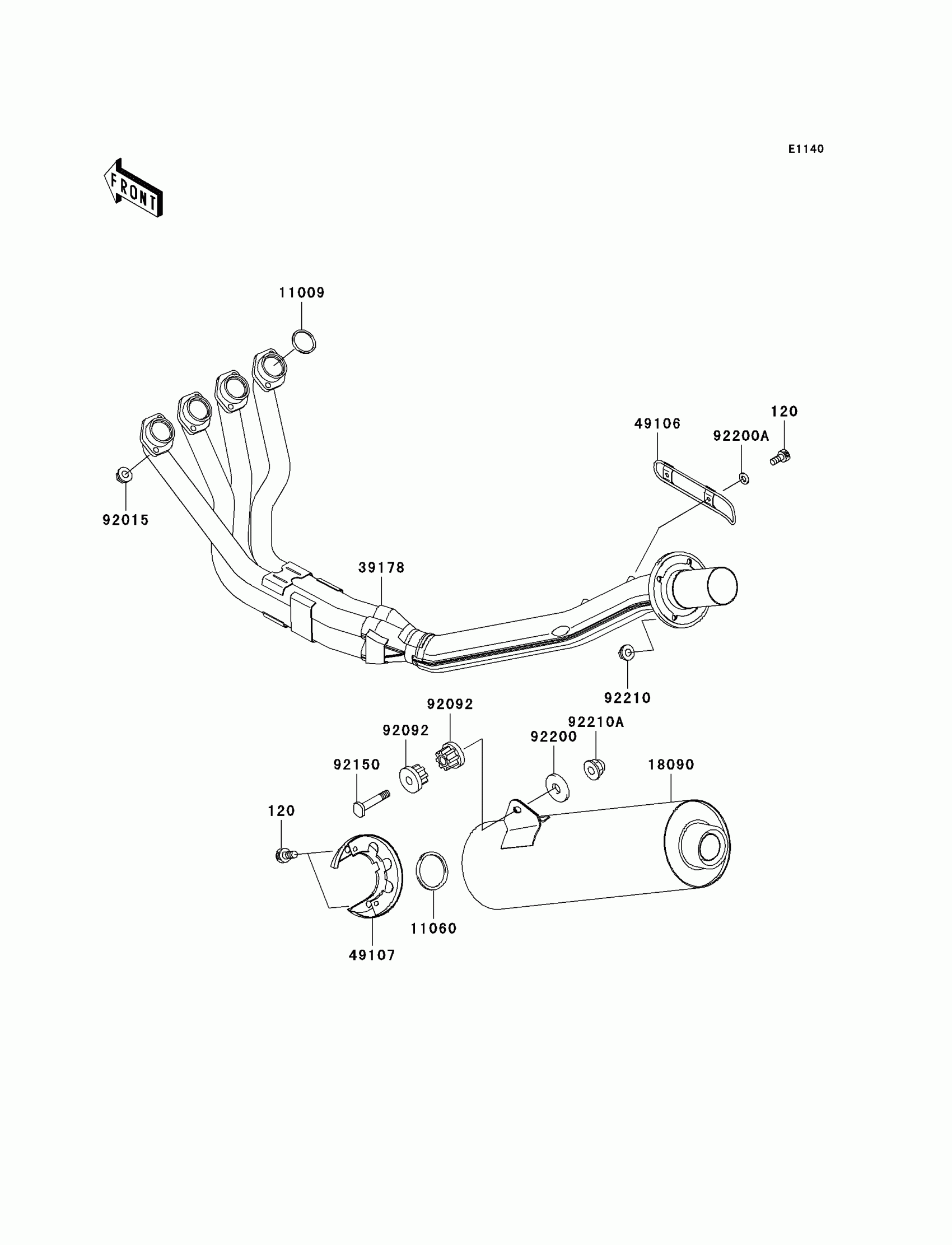

Kawasaki Ninja® ZX™-12R Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120R0610

$2.48

411

WASHER-PLAIN,6MM

411S0600

$2.06

11009

GASKET,EXHAUST PIPE H

11009-1840

$8.17

11061

GASKET,MUFFLER CONNECT

11061-1095

$28.94

18091

BODY-COMP-MUFFLER

18091-0225

$1,641.77

39178

MANIFOLD-COMP-EXHAUST

39178-0015

$1,462.76

49106

COVER-MUFFLER

49106-0009

$126.70

49107

COVER-EXHAUST PIPE,END

49107-1185

$93.11

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92150

BOLT,10X55

92150-1792

$8.66

92153

BOLT,6X12

92153-0554

$4.74

92161

DAMPER

92161-1228

$7.63

92200

WASHER,10.5X25X2.0

92200-1377

$4.18

92210

NUT,8MM

92210-1114

$2.46

92210A

NUT,CAP,10MM

92210-1121

$4.22
