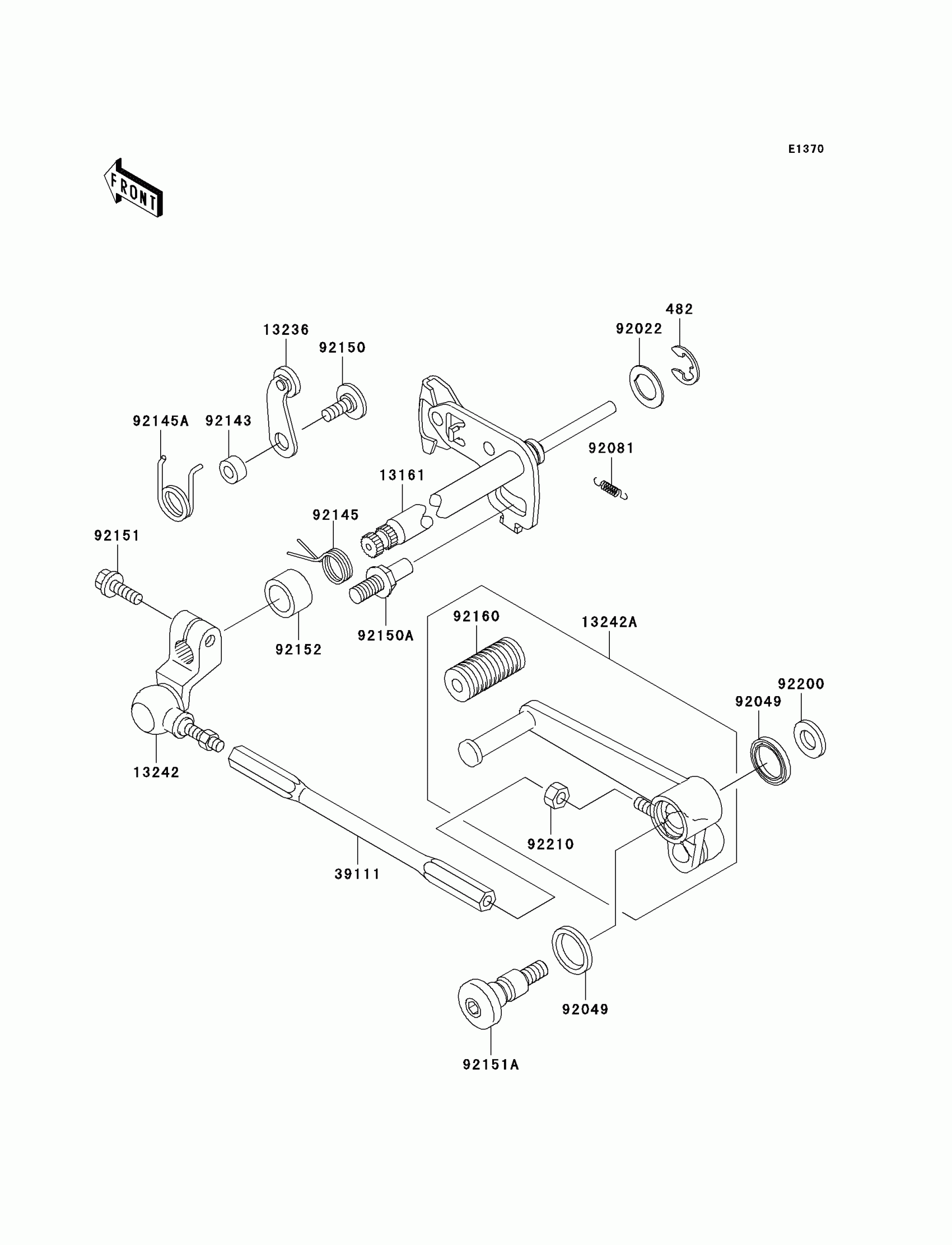

Kawasaki Ninja® ZX™-12R Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1258

Unavailable

13236

LEVER-COMP,POSITION

13236-1307

$8.26

13242

LEVER-ASSY-CHANGE,BOSS

13242-1348

$53.31

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-1363

$103.97

39111

ROD-TIE

39111-1166

$47.86

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92143

COLLAR

92143-1595

$9.51

92143A

COLLAR,13.2X19.9X12

92143-1733

$5.78

92145

SPRING

92145-1122

$9.68

92145A

SPRING

92145-1257

$4.17

92150

BOLT,SOCKET,6X16

92150-1737

$10.76

92150A

BOLT,RETURN SPRING

92150-1869

$8.58

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92151A

BOLT,CHANGE PEDAL

92151-1481

$18.46

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

92200

WASHER,8.5X25X1.5

92200-3717

$4.92

92210

NUT,6MM

92210-1100

$2.34
