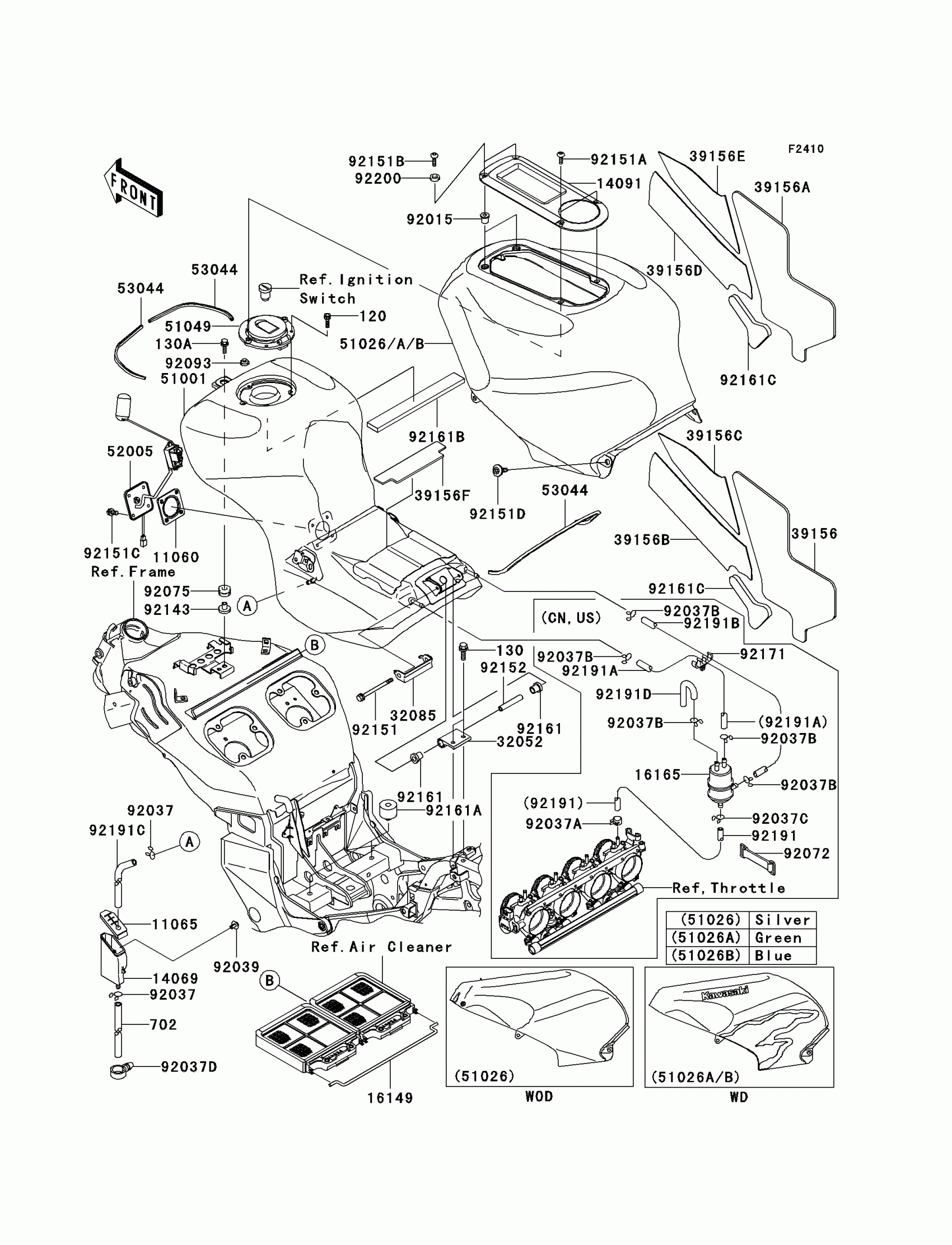

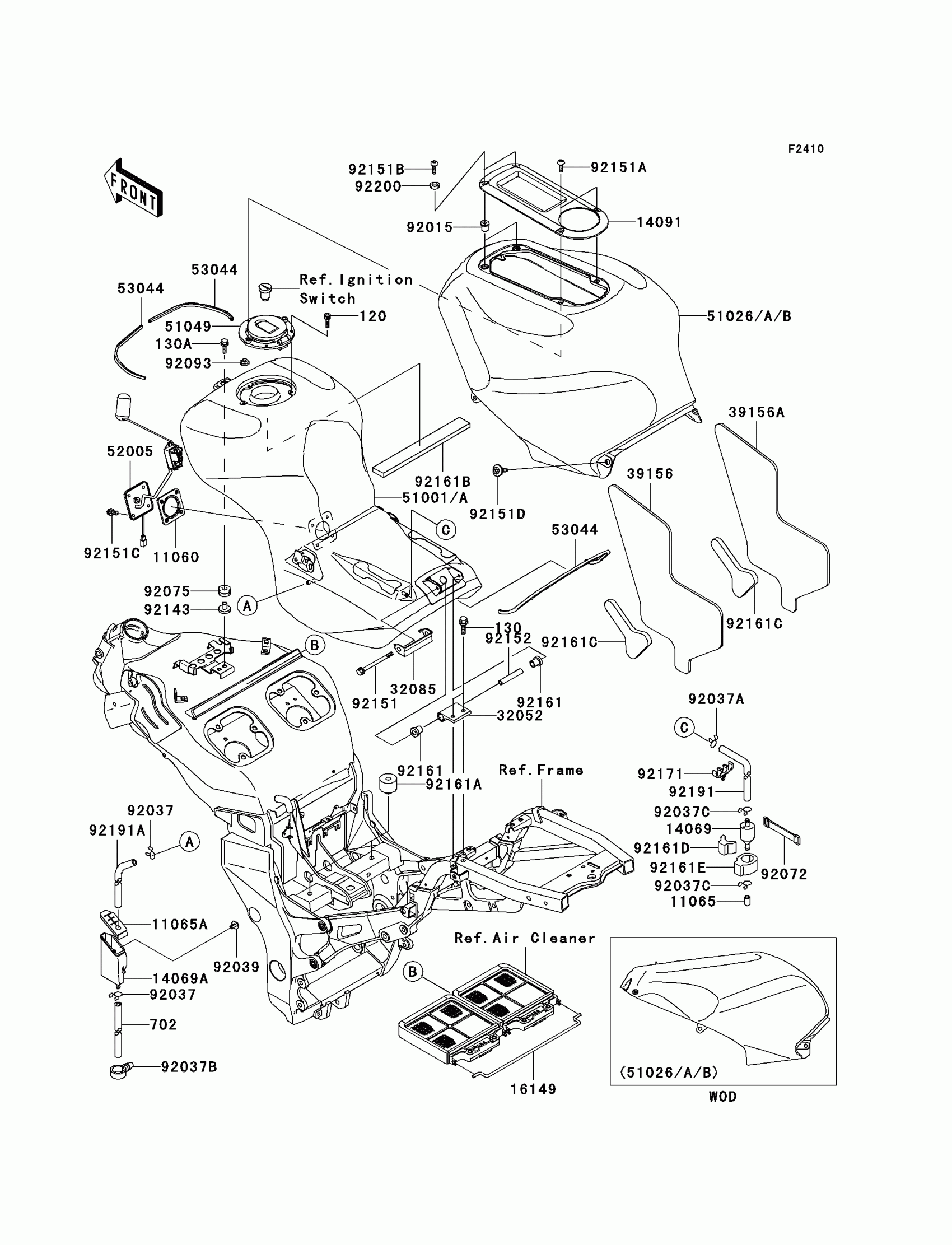

Kawasaki Ninja® ZX™-12R Fuel Tank Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

11065

CAP,BREATHER

11065-1179

$19.72

14069

BREATHER,FUEL TANK DRAIN

14069-1065

$27.84

14091

COVER,FUEL TANK COVER CAP

14091-1145

$76.61

16149

BAR,FUEL TANK

16149-1119

$10.06

32052

BRACKET-TANK,RR

32052-1500

$27.33

32085

STOPPER,FUEL TANK,RR

32085-1507

$10.28

39156

PAD,FUEL TANK COVER,RR,UPP,LH

39156-1627

$57.34

39156A

PAD,FUEL TANK COVER,RR,UPP,RH

39156-1628

$57.34

39156B

PAD,FUEL TANK COVER,FR,LWR,LH

39156-1688

$45.18

39156C

PAD,FUEL TANK COVER,FR,UPP,LH

39156-1689

$37.98

39156D

PAD,FUEL TANK COVER,FR,LWR,RH

39156-1690

$45.18

39156E

PAD,FUEL TANK COVER,FR,UPP,RH

39156-1691

$37.98

39156F

PAD,FUEL TANK

39156-1695

$6.86

51001

TANK-COMP-FUEL,M.GRAYSTONE

51001-1635-C4

$1,093.16

51026

COVER TANK,FUEL,M.P.SILVER

51026-1051-GU

Unavailable

51026A

COVER TANK,FUEL,C.L.GREEN

51026-5006-8N

Unavailable

51049

CAP-TANK,FUEL

51049-1119

$126.77

52005

GAUGE,FUEL

52005-1134

$234.70

53044

TRIM

53044-1296

$11.99

92015

NUT

92015-1700

$8.58

92037

CLAMP,TUBE

92037-010

$3.92

92037D

CLAMP,HOSE

92037-1827

$7.45

92039

RIVET

92039-1256

$2.75

92075

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92143

COLLAR

92143-1515

$20.04

92151

BOLT,6X80

92151-1200

$3.71

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED

130J0620

$0.43

130A

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

702

TUBE-RUBBER,6X9X420

702A06420

$8.49

92151A

BOLT,SOCKET,6X10

92151-1449

$2.46

92151B

BOLT,SOCKET,6X14

92151-1554

$2.61

92151C

BOLT,5X12

92151-1599

$1.91

92151D

BOLT,SOCKET,6MM

92151-1866

$7.38

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92161

DAMPER

92161-1070

$4.20

92161A

DAMPER

92161-1116

$9.19

92161B

DAMPER

92161-1117

$9.21

92161C

DAMPER,FUEL TANK COVER,RR,LWR

92161-1153

$9.21

92191C

TUBE

92191-1468

$4.17

92200

WASHER,6.2X10X1

92200-1465

$1.59

16165

SEPARATOR

16165-1001

$90.01

51026B

COVER TANK,FUEL,C.L.BLUE

51026-5007-E1

Unavailable

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92072

BAND,L=50

92072-066

$16.08

92171

CLAMP

92171-1213

$8.76

92191

TUBE,SEPARATOR-HEAD,WHITE

92191-1380

Unavailable

92191A

TUBE,SEPARATOR,BLUE

92191-1381

$13.13

92191B

TUBE,SEPARATOR,RED

92191-1382

$19.72

92191D

TUBE,SEPARATOR

92191-1654

$21.89
