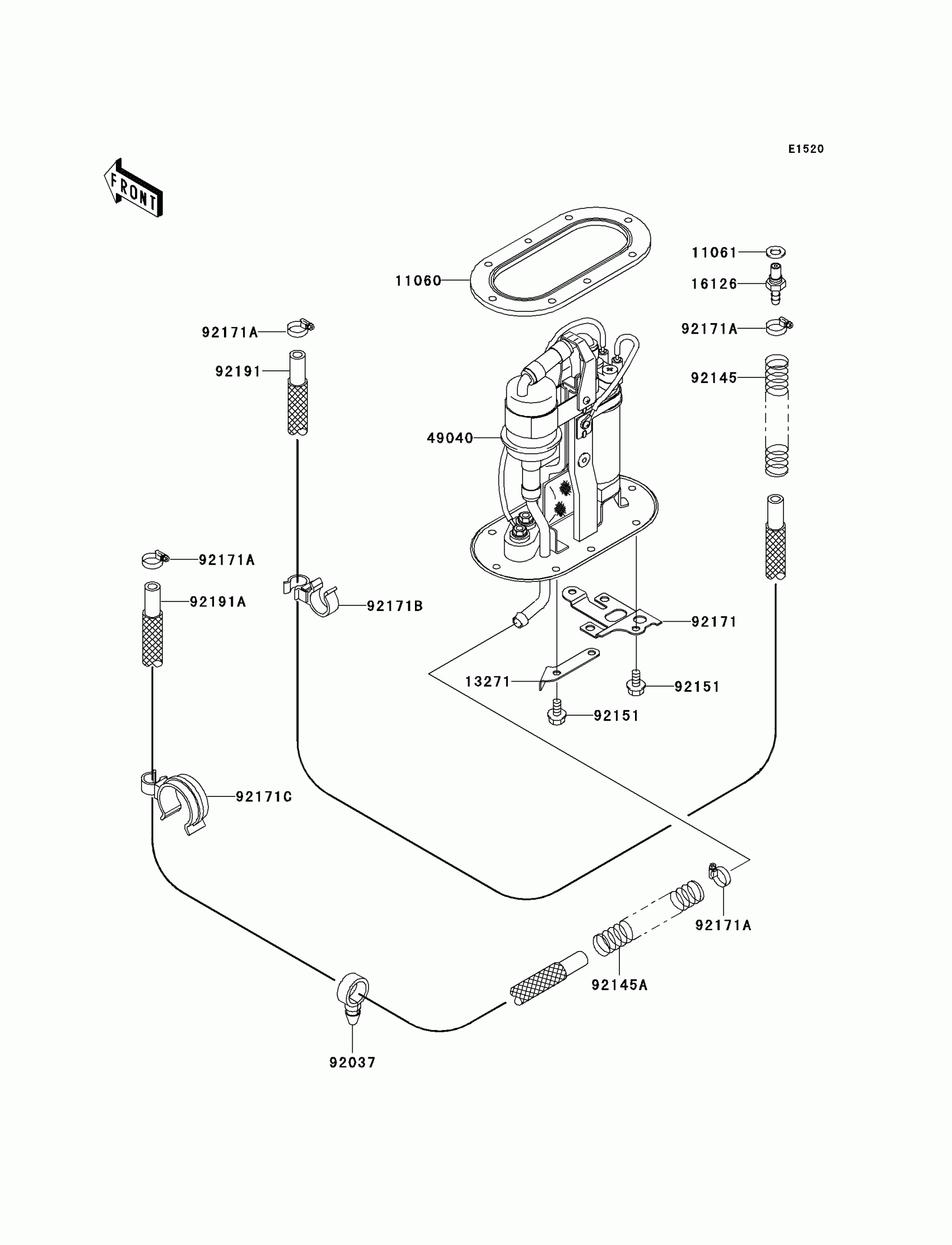

Kawasaki Ninja® ZX™-12R Fuel Pump Diagram

Description

Price

11060

GASKET

11060-1929

$49.36

11061

GASKET,14.2X22X0.30

11061-1051

Unavailable

13271

PLATE

13271-1557

Unavailable

16126

VALVE

16126-1395

Unavailable

49040

PUMP-FUEL

49040-1067

$798.00

92037

CLAMP,HOSE

92037-1827

$5.69

92145

SPRING,FUEL TUBE

92145-1373

Unavailable

92145A

SPRING,PUMP TUBE

92145-1378

$19.25

92151

BOLT,5X12

92151-1599

$1.23

92171

CLAMP

92171-1182

$5.97

92171A

CLAMP

92171-1274

$9.90

92171B

CLAMP

92171-1275

Unavailable

92171C

CLAMP

92171-1276

$5.47

92191

TUBE,7.5X13.5X630

92191-1356

$126.31

92191A

TUBE,7.5X13.5X900

92191-1456

$159.35
