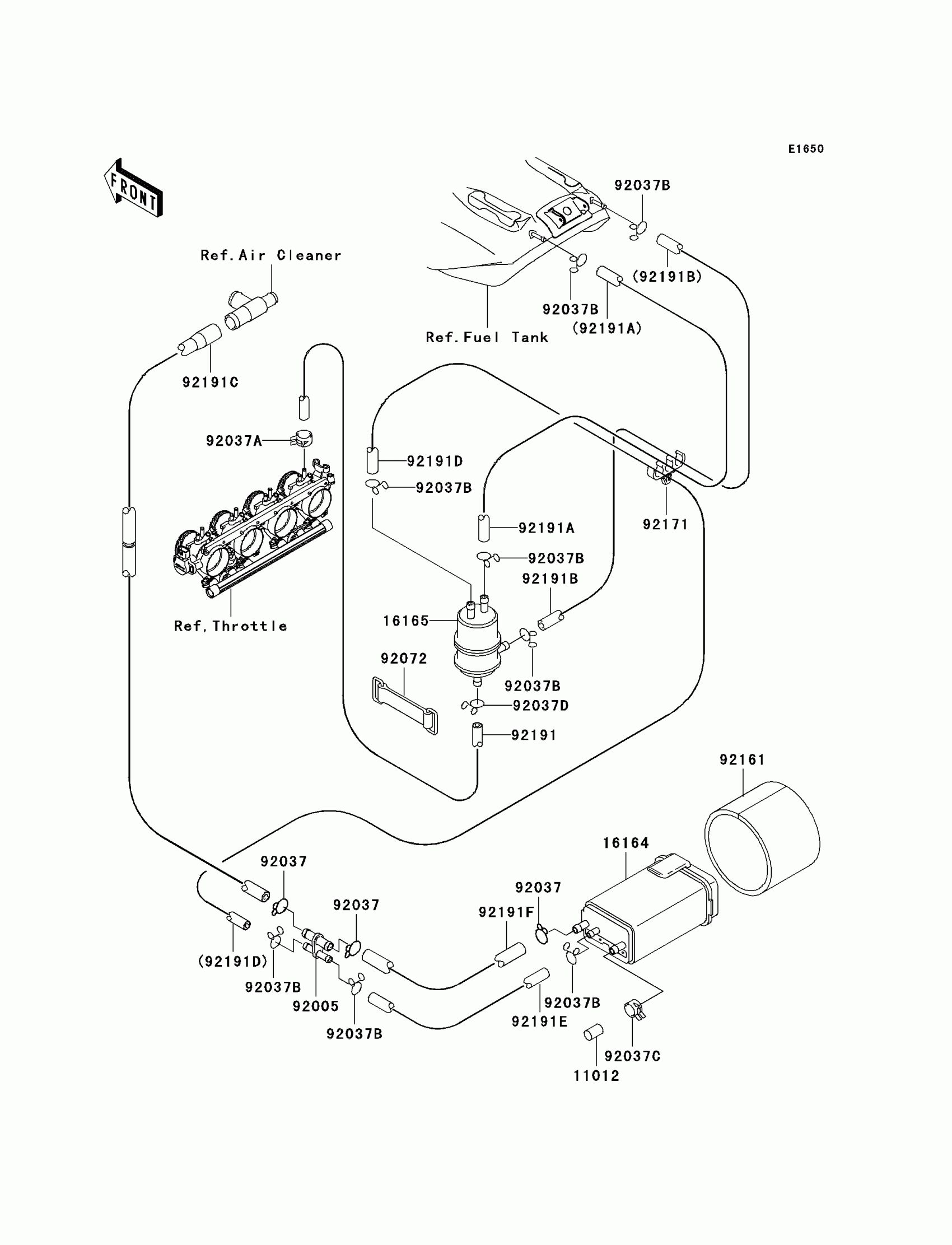

Kawasaki Ninja® ZX™-12R Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-1372

$10.53

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP,CANISTER

92037-1512

$5.71

92037D

CLAMP

92037-1712

$3.81

92072

BAND,L=50

92072-066

$12.21

92161

DAMPER

92161-1142

$8.81

92171

CLAMP

92171-1213

$8.54

92191

TUBE,SEPARATOR-HEAD,WHITE

92191-1380

Unavailable

92191A

TUBE,SEPARATOR,BLUE

92191-1381

$12.51

92191B

TUBE,SEPARATOR,RED

92191-1382

$18.42

92191C

TUBE,CANISTER-AIR SWITCH,GREEN

92191-1383

$37.68

92191D

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$14.90

92191E

TUBE

92191-1497

$8.88

92191F

TUBE

92191-1498

$7.42
