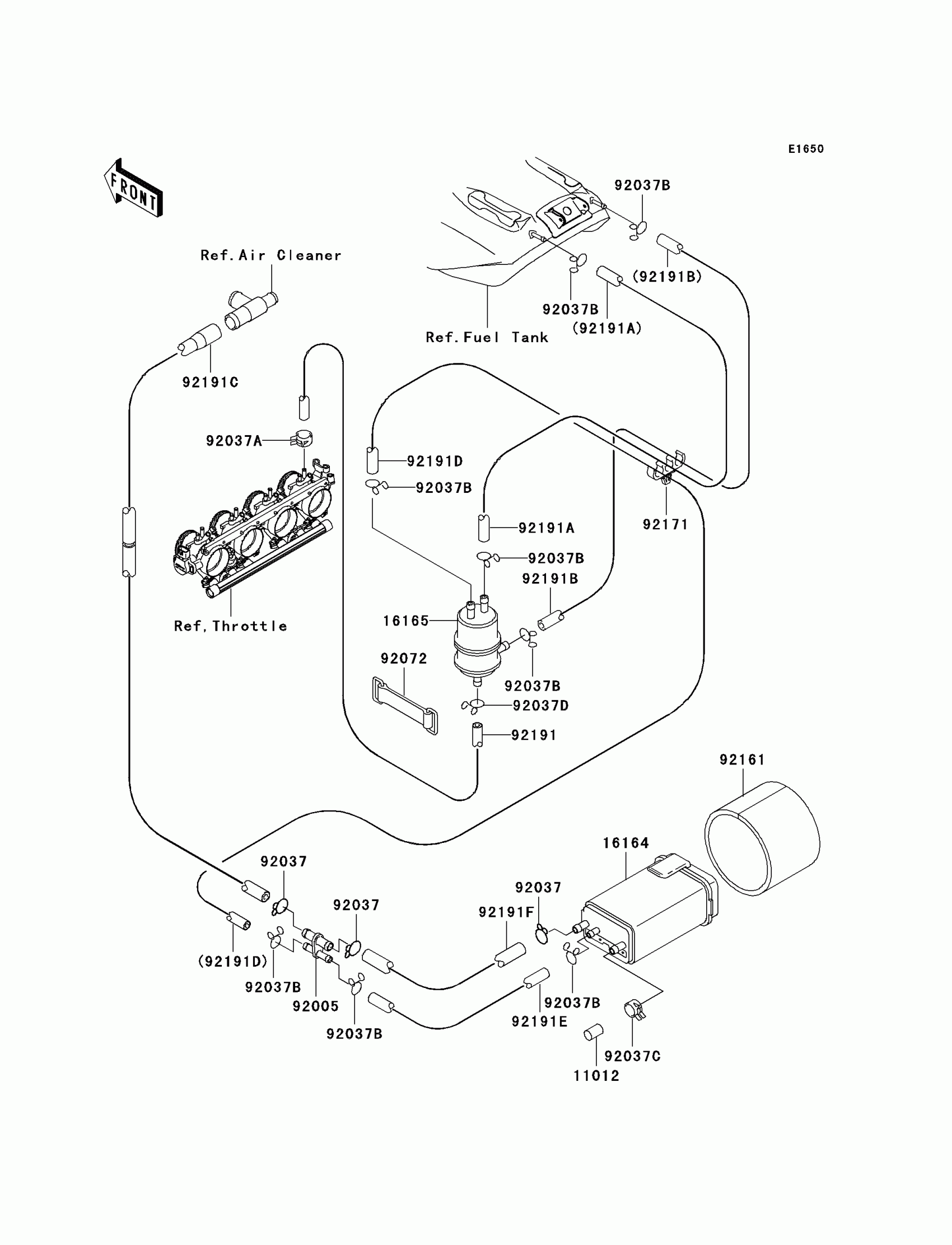

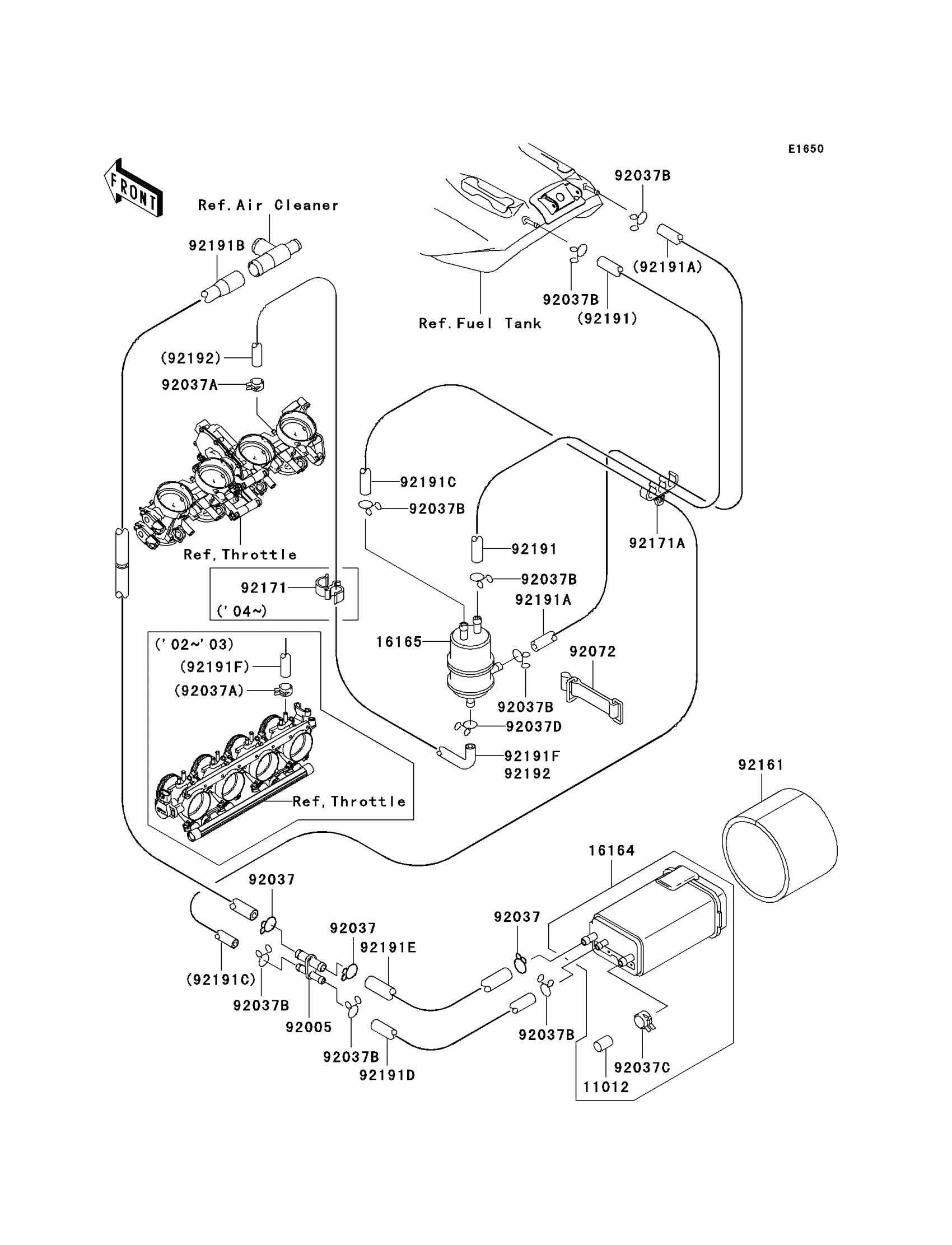

Kawasaki Ninja® ZX™-12R Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1372

$10.95

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP,CANISTER

92037-1512

$6.57

92037D

CLAMP

92037-1712

$5.00

92072

BAND

92072-1085

$18.15

92161

DAMPER

92161-1142

$9.07

92171

CLAMP

92171-0354

$5.00

92171A

CLAMP

92171-1213

$8.76

92191

TUBE,SEPARATOR,BLUE

92191-1381

$13.13

92191A

TUBE,SEPARATOR,RED

92191-1382

$19.72

92191B

TUBE,CANISTER-AIR SWITCH,GREEN

92191-1383

$36.97

92191C

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$15.08

92191D

TUBE

92191-1497

$9.13

92191E

TUBE

92191-1498

$7.54

92192

TUBE,SEPARATOR,WHITE

92192-0127

$18.13
