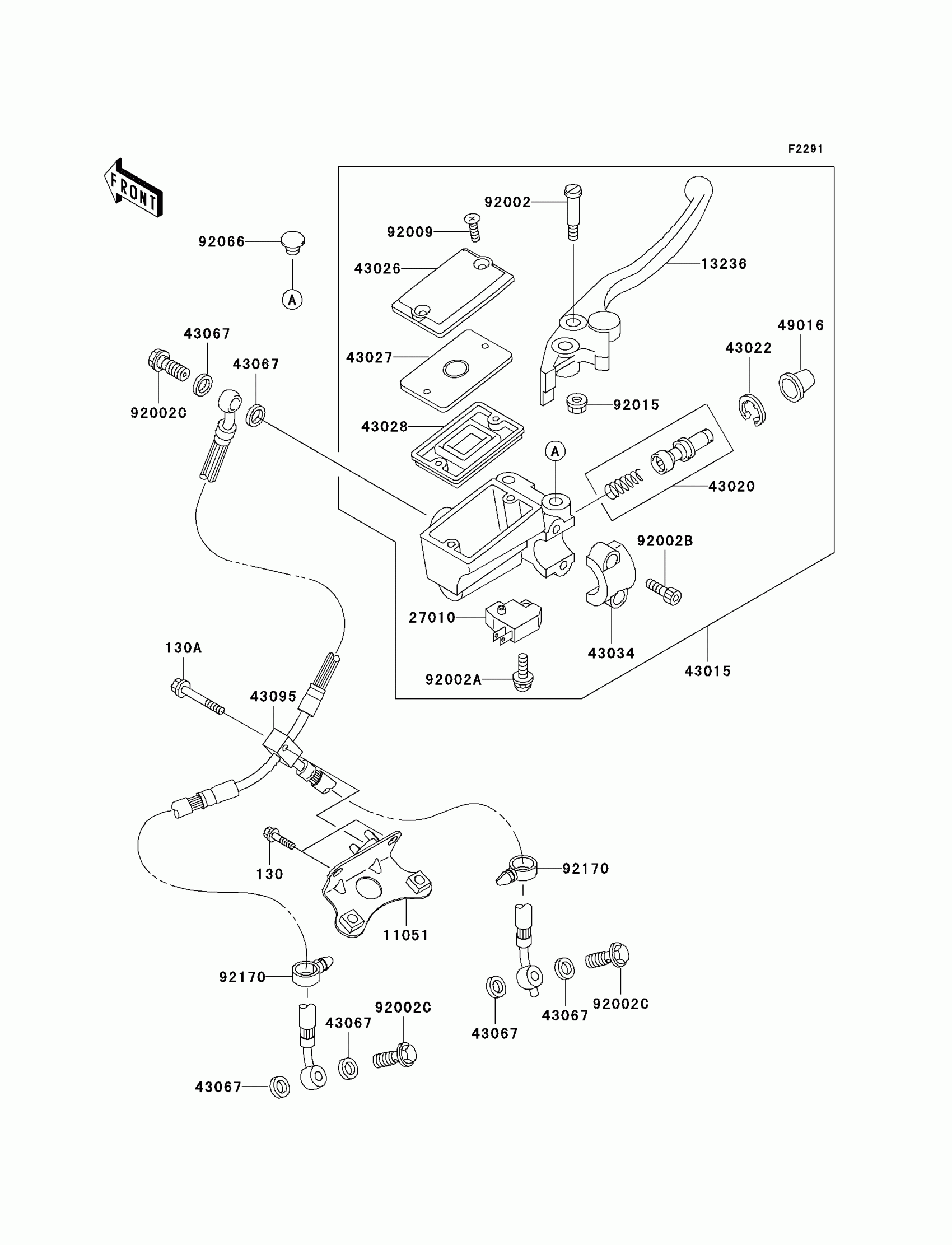

Kawasaki Ninja® ZX™-12R Front Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

11051

BRACKET,3WAY JOINT

11051-1479

$32.46

13236

LEVER-COMP,FRONT BRAKE

13236-1337

$65.56

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1648

$395.19

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

$7.68

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095

HOSE-BRAKE,FR

43095-1160

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92170

CLAMP

92170-1067

$5.69
