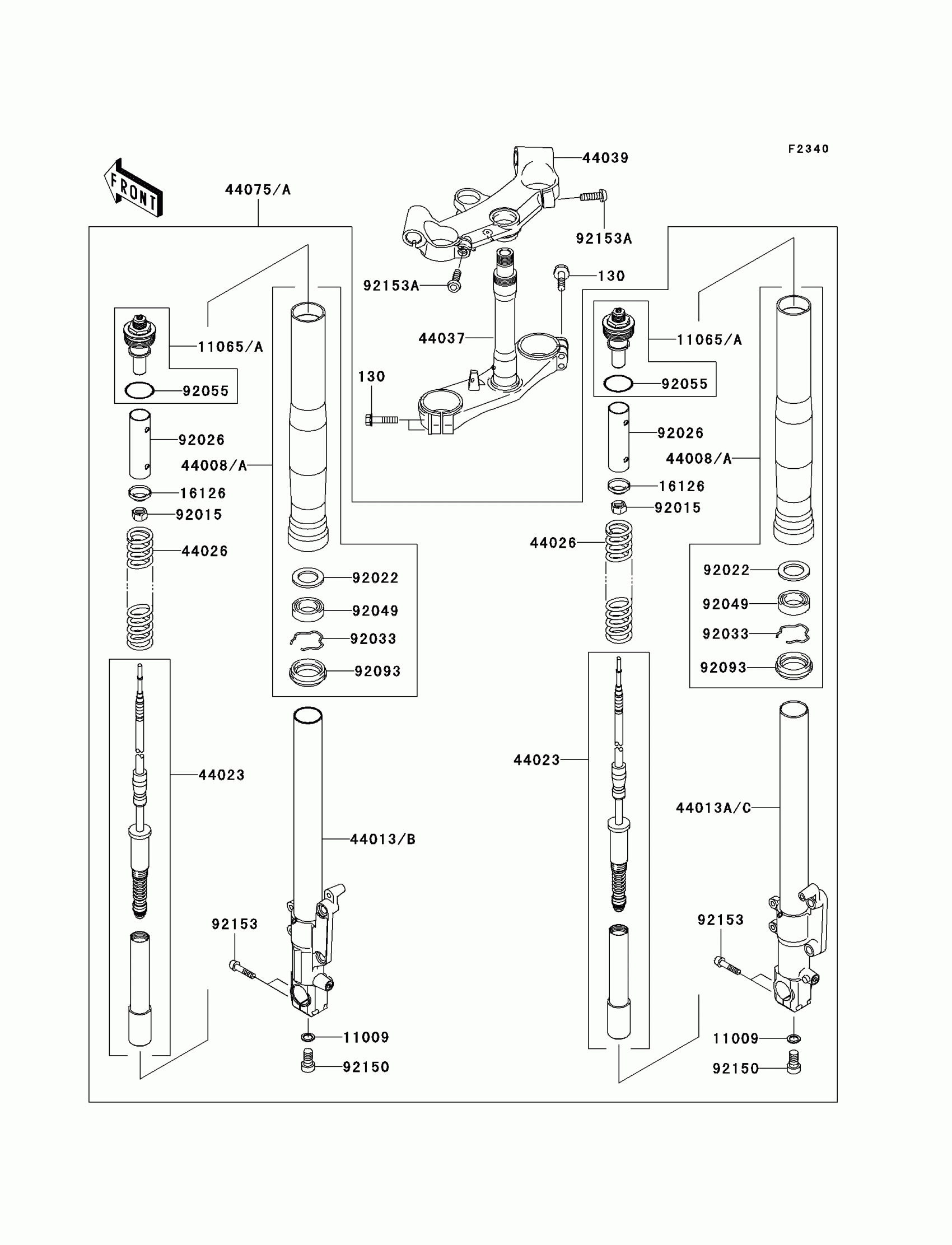

Kawasaki Ninja® ZX™-12R Front Fork(B1/B2) Diagram

Description

Price

130

BOLT-FLANGED,8X35

130G0835

Unavailable

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11065

CAP

11065-0007

$178.81

16126

VALVE

16126-1381

$36.17

44008

PIPE-FORK OUTER

44008-1047

Unavailable

44013B

PIPE-FORK INNER,LH

44013-1519

Unavailable

44013C

PIPE-FORK INNER,RH

44013-1520

Unavailable

44023

CYLINDER-SET-FORK

44023-1167

$526.34

44026

SPRING-FRONT FORK

44026-1766

$107.68

44037

HOLDER-FORK UNDER

44037-1431

$936.67

44039

HOLDER-FORK UPPER

44039-1324

$399.27

44075A

DAMPER-SET-FORK

44075-1187

$2,245.11

92015

NUT

92015-1905

$18.34

92022

WASHER

92022-1299

$6.55

92026

SPACER,FORK,L=119

92026-1621

$33.77

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$18.69

92055

RING-O,FORK,AIR TUBE

92055-1333

$4.53

92093

SEAL,FORK OUTER TUBE

92093-1480

$14.02

92150

BOLT,12X22

92150-1398

$8.95

92153

BOLT,SOCKET,8X40

92153-1178

$9.47

92153A

BOLT,SOCKET,8X25

92153-1179

$9.47
