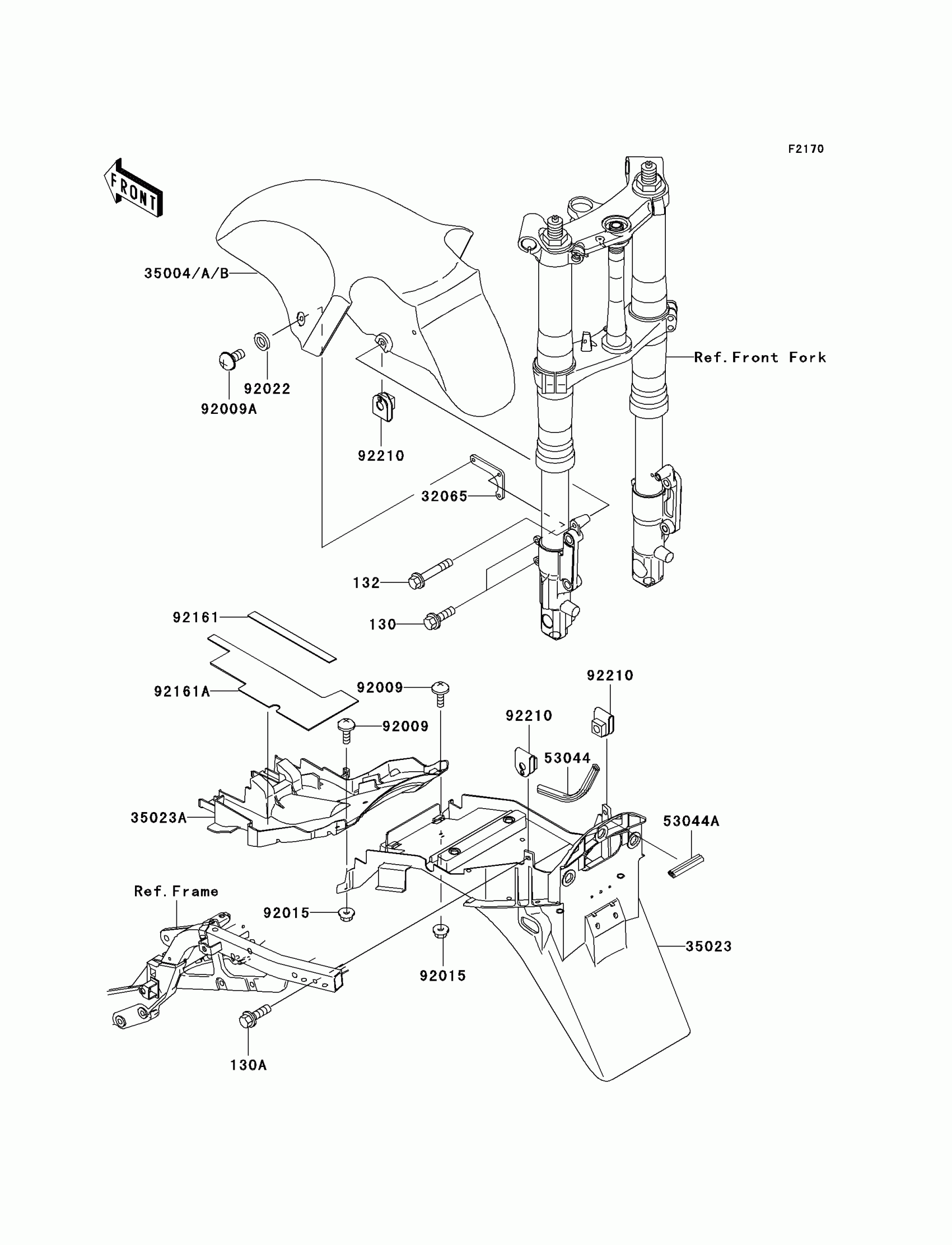

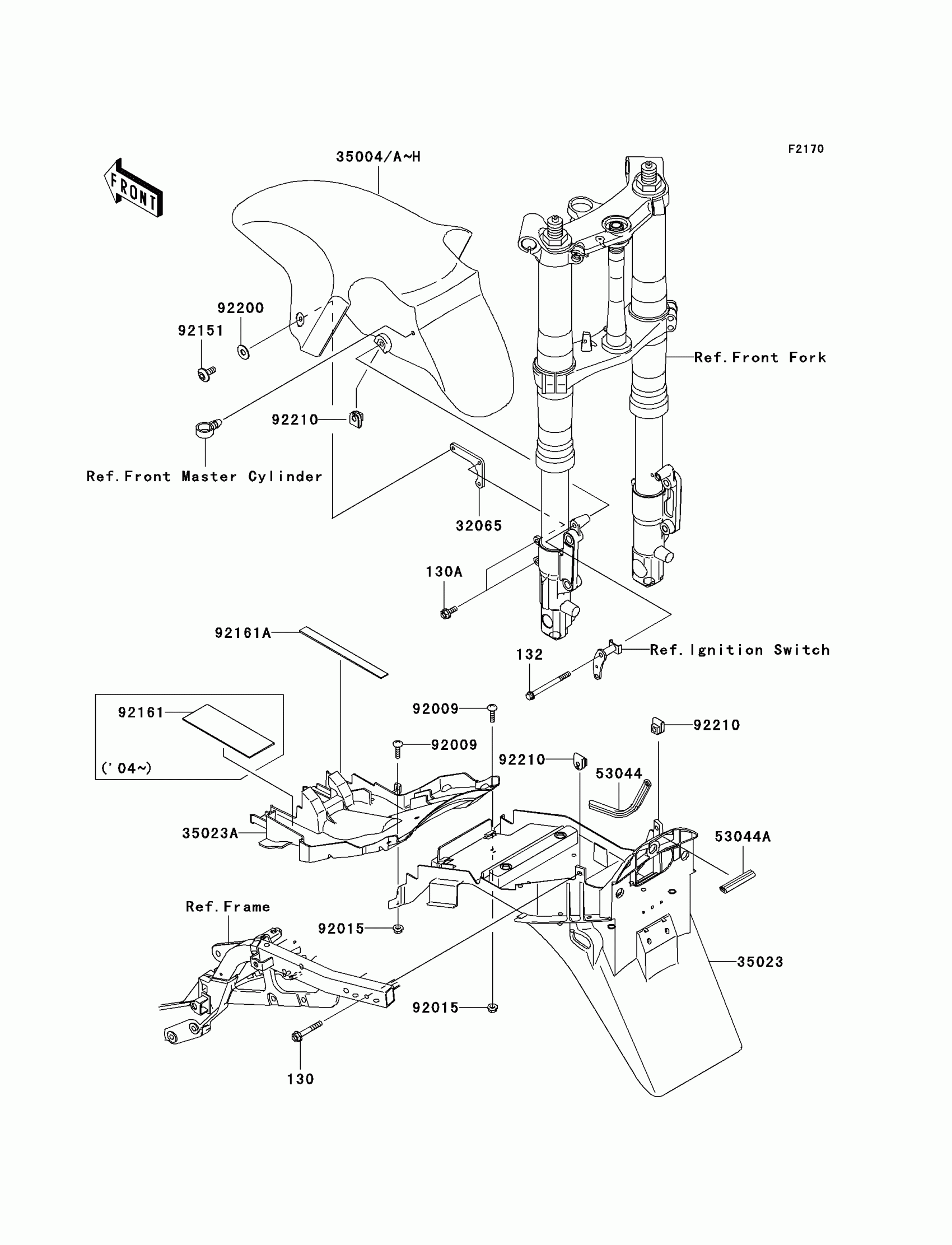

Kawasaki Ninja® ZX™-12R Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

132

BOLT-FLANGED-SMALL,6X70

132J0670

$4.89

32065

BRACKET-FENDER

32065-1358

$27.33

35004

FENDER-FRONT,C.P.RED

35004-1398-A5

$247.25

35004B

FENDER-FRONT,C.L.GREEN

35004-1398-8N

$247.25

35023

FENDER-REAR,RR

35023-1518

$116.29

35023A

FENDER-REAR,FR

35023-1542

$90.85

53044

TRIM

53044-1137

$10.65

53044A

TRIM,L=48

53044-1324

$3.69

92009

SCREW,5X20,BLACK

92009-1656

$3.96

92009A

SCREW,6X10

92009-1661

$4.31

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92022

WASHER,6.5X16X1

92022-1143

$3.92

92161

DAMPER

92161-1169

$4.62

92161A

DAMPER

92161-1183

Unavailable

92210

NUT,6MM

92210-1190

$4.92

35004A

FENDER-FRONT,M.P.SILVER

35004-1398-GU

$247.25
