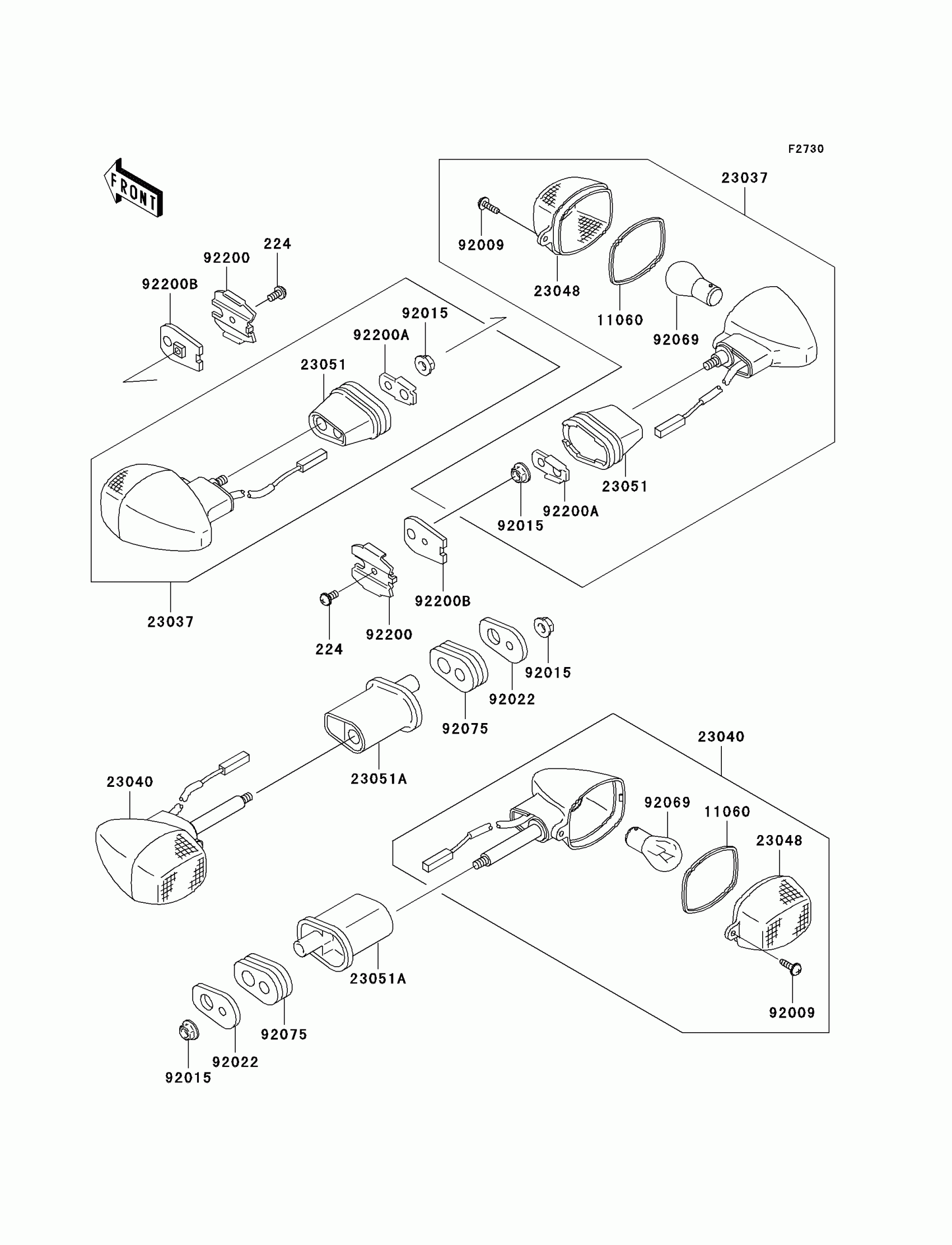

Kawasaki Ninja® ZX™-12R (European) Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224C0408

$3.67

11060

GASKET,SIGNAL LAMP

11060-1826

Unavailable

23037

LAMP-ASSY-SIGNAL,FR

23037-1392

$61.06

23040

LAMP-SIGNAL,RR

23040-1284

$63.71

23048

LENS-SIGNAL LAMP

23048-1168

$9.70

23051

BRACKET-SIGNAL LAMP,FR

23051-1207

$20.04

23051A

BRACKET-SIGNAL LAMP

23051-1248

$11.44

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

$4.13

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,SIGNAL LAMP

92022-1672

$5.59

92069

Not Available As Spare Part - Friction Washer

Unavailable

92075

DAMPER,SIGNAL LAMP

92075-1698

$9.57

92200

WASHER,SIGNAL LAMP

92200-1016

$7.62

92200A

WASHER

92200-1021

$7.62

92200B

WASHER,SIGNAL LAMP

92200-1520

$6.29
