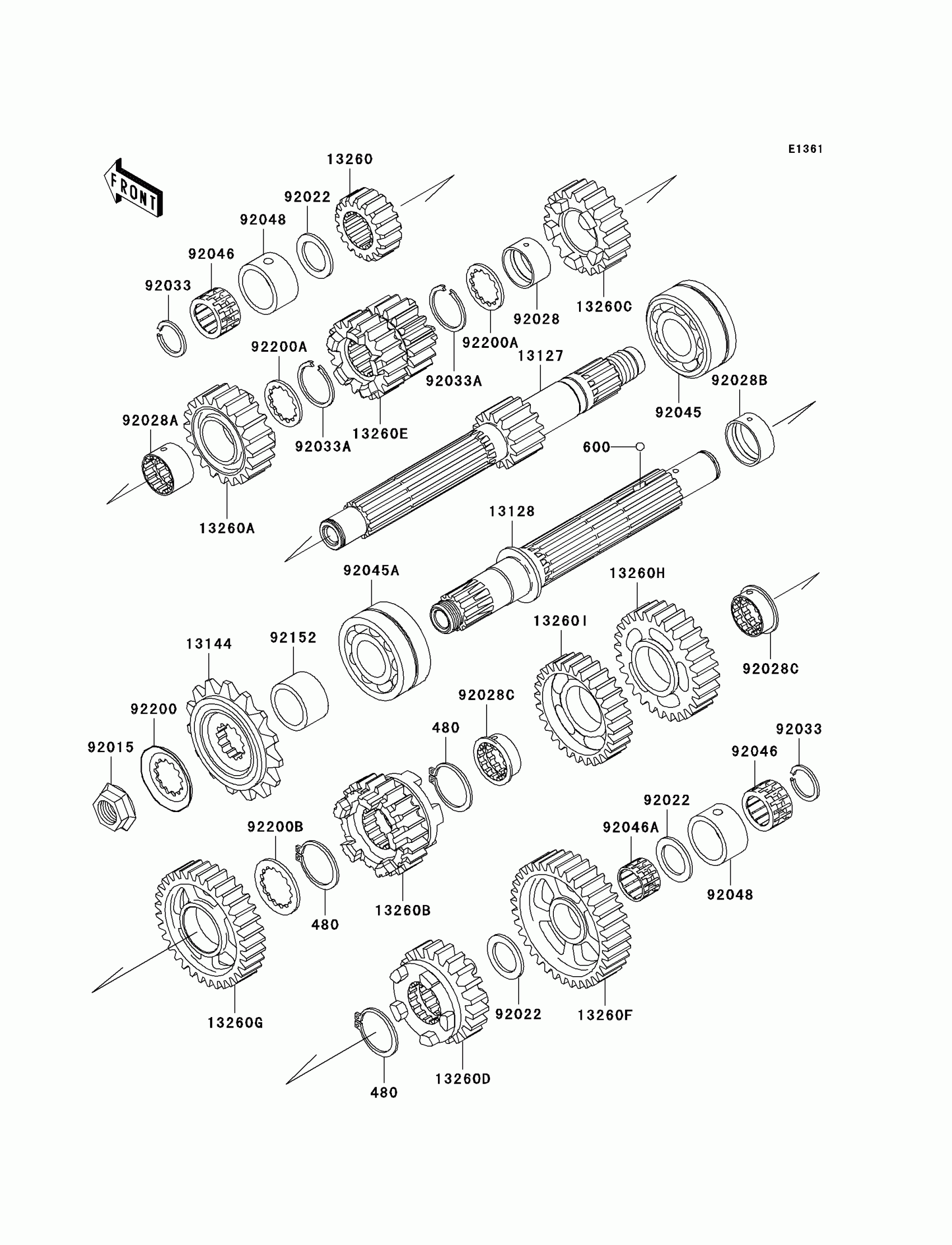

Kawasaki Ninja® ZX™-12R (European) Transmission Diagram

#

Description
Price

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,14T

13127-1274

$332.95

13128

SHAFT-TRANSMISSION OUTPUT

13128-1237

$271.53

13144

SPROCKET-OUTPUT,18T

13144-1308

$50.89

13260

GEAR,INPUT 2ND,17T

13260-1828

$153.26

13260A

GEAR,INPUT TOP,30T

13260-1831

$209.27

13260B

GEAR,OUTPUT TOP,31T

13260-1837

$220.49

13260C

GEAR,INPUT 5TH,23T

13260-1938

$223.89

13260D

GEAR,OUTPUT 5TH,26T

13260-1940

$236.32

13260E

GEAR,INPUT 3RD&4TH,25T&24T

13260-1943

$236.32

13260F

GEAR,OUTPUT LOW,34T

13260-1944

$223.89

13260G

GEAR,OUTPUT 2ND,31T

13260-1945

$223.89

13260H

GEAR,OUTPUT 3RD,36T

13260-1946

$223.89

13260I

GEAR,OUTPUT 4TH,30T

13260-1947

$223.89

92015

NUT,20MM

92015-1210

$18.81

92022

WASHER,22.3X35X1.6

92022-212

$9.91

92028

BUSHING

92028-1935

$21.19

92028A

BUSHING

92028-1936

$24.64

92028B

BUSHING

92028-1937

$14.83

92028C

BUSHING

92028-1938

$38.62

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,6305N2SH2

92045-1224

$36.90

92045A

BEARING-BALL,TM-5206NX9

92045-1377

$86.63

92046

BEARING-NEEDLE,K22X30X16.8X2

92046-1268

$19.66

92046A

BEARING-NEEDLE

92046-1269

$11.68

92048

RACE

92048-0004

$25.79

92152

COLLAR

92152-0193

$37.81

92200

WASHER,TOOTHED,23.9X45X1.0

92200-1234

$6.07

92200A

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200B

WASHER,TOOTHED,28X40X2

92200-1277

$11.99
