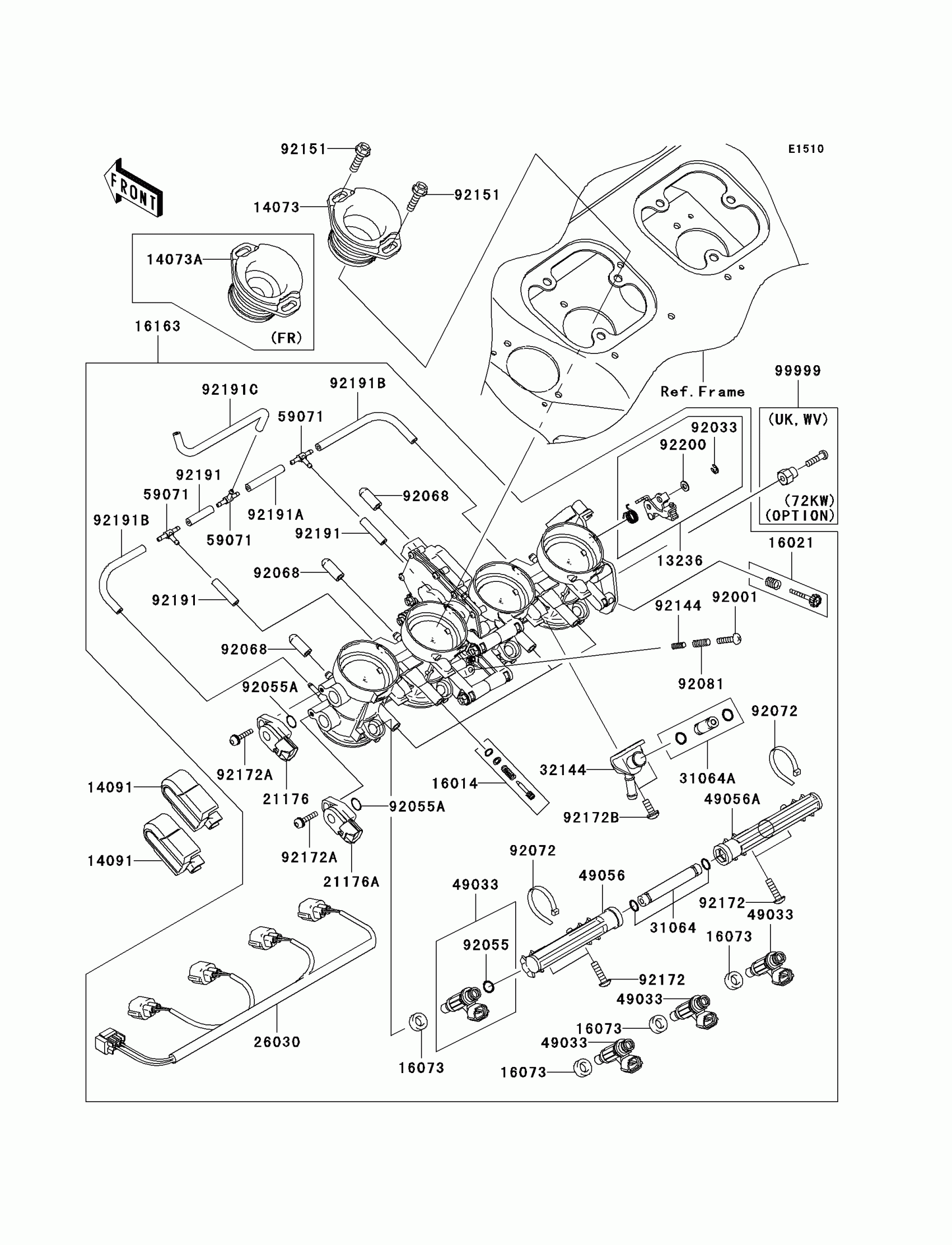

Kawasaki Ninja® ZX™-12R (European) Throttle Diagram

#

Description
Price

13236

LEVER-COMP

13236-0065

Unavailable

14091

COVER

14091-0487

$10.91

16014

SCREW-PILOT AIR

16014-0002

$20.40

16021

SCREW-THROTTLE STOP

16021-0009

$126.47

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY

16163-0043

$2,482.59

21176

SENSOR,TPS

21176-0002

$222.19

21176A

SENSOR,TPS

21176-0003

$222.19

26030

HARNESS

26030-1672

$132.35

31064

PIPE-COMP,FUEL

31064-0019

$70.40

31064A

PIPE-COMP,FUEL

31064-0020

$41.90

32144

PIPE-ASSY,FUEL

32144-0003

$41.90

49033

NOZZLE-INJECTION

49033-0003

$128.97

49056

PIPE-INJECTION

49056-0007

$114.61

49056A

PIPE-INJECTION

49056-0008

$114.61

59071

JOINT,3WAY,T

59071-3752

$7.76

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92033

RING-SNAP,FAST IDLE

92033-0004

$2.27

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92055A

RING-O

92055-1671

$3.29

92068

PLUG,12X25

92068-006

$3.25

92072

BAND,SUB-HARNESS

92072-0012

$3.81

92081

SPRING

92081-1620

$3.78

92144

SPRING

92144-1451

$9.29

92151

BOLT,6X22

92151-1236

Unavailable

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW

92172-0080

$4.42

92172B

SCREW

92172-0169

$4.42

92191

TUBE,3X7X30

92191-0025

$2.00

92191A

TUBE,3X7X45

92191-0150

$7.90

92191B

TUBE,3X7X110

92191-0151

$9.85

92191C

TUBE,3X7X160.5

92191-0152

$14.39

92200

WASHER,FAST IDLE

92200-0033

Unavailable

14073

DUCT,FUNNEL

14073-0042

$71.39

14073A

DUCT,FUNNEL

14073-0063

Unavailable

99999

KIT.,72KW

99999-0028

$12.93
