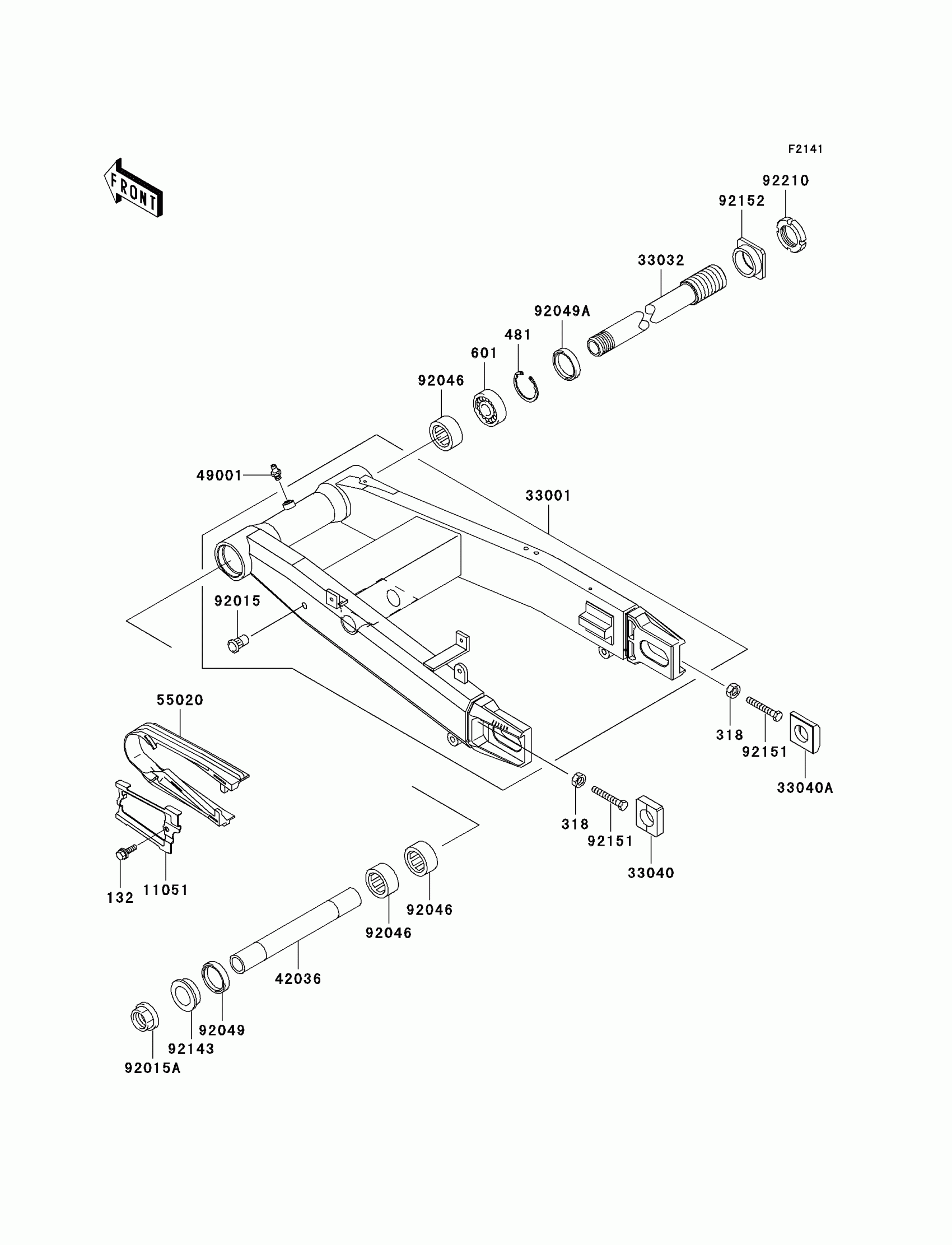

Kawasaki Ninja® ZX™-12R (European) Swingarm Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

481

CIRCLIP-TYPE-C,47MM

481J4700

$3.22

601

BEARING-BALL,#6005U

601B6005U

$25.56

11051

BRACKET,CHAIN GUARD

11051-1912

$15.81

33001

ARM-COMP-SWING,F.S.BLACK

33001-0053-8F

$1,196.17

33032

SHAFT-SWING ARM

33032-1193

$153.57

33040

ADJUSTER-CHAIN,RH

33040-1114

$14.54

33040A

ADJUSTER-CHAIN,RH

33040-1180

Unavailable

42036

SLEEVE,SWING ARM,L=224.5

42036-1312

$80.98

49001

NIPPLE-GREASE

49001-0001

$2.11

55020

GUARD,CHAIN

55020-1695

$70.98

92015

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015A

NUT,FLANGED,25MM

92015-1845

$23.68

92046

BEARING-NEEDLE,BM3520

92046-1205

$30.93

92049

SEAL-OIL,MHA 35X47X5

92049-1381

$13.00

92049A

SEAL-OIL,KC38X47X6

92049-1521

$13.32

92143

COLLAR,SWING ARM,L=12.5

92143-1481

$31.44

92151

BOLT,8X55

92151-1578

Unavailable

92152

COLLAR,SWING ARM,L=14.5

92152-1445

$33.77

92210

NUT,32MM

92210-1205

$24.88
