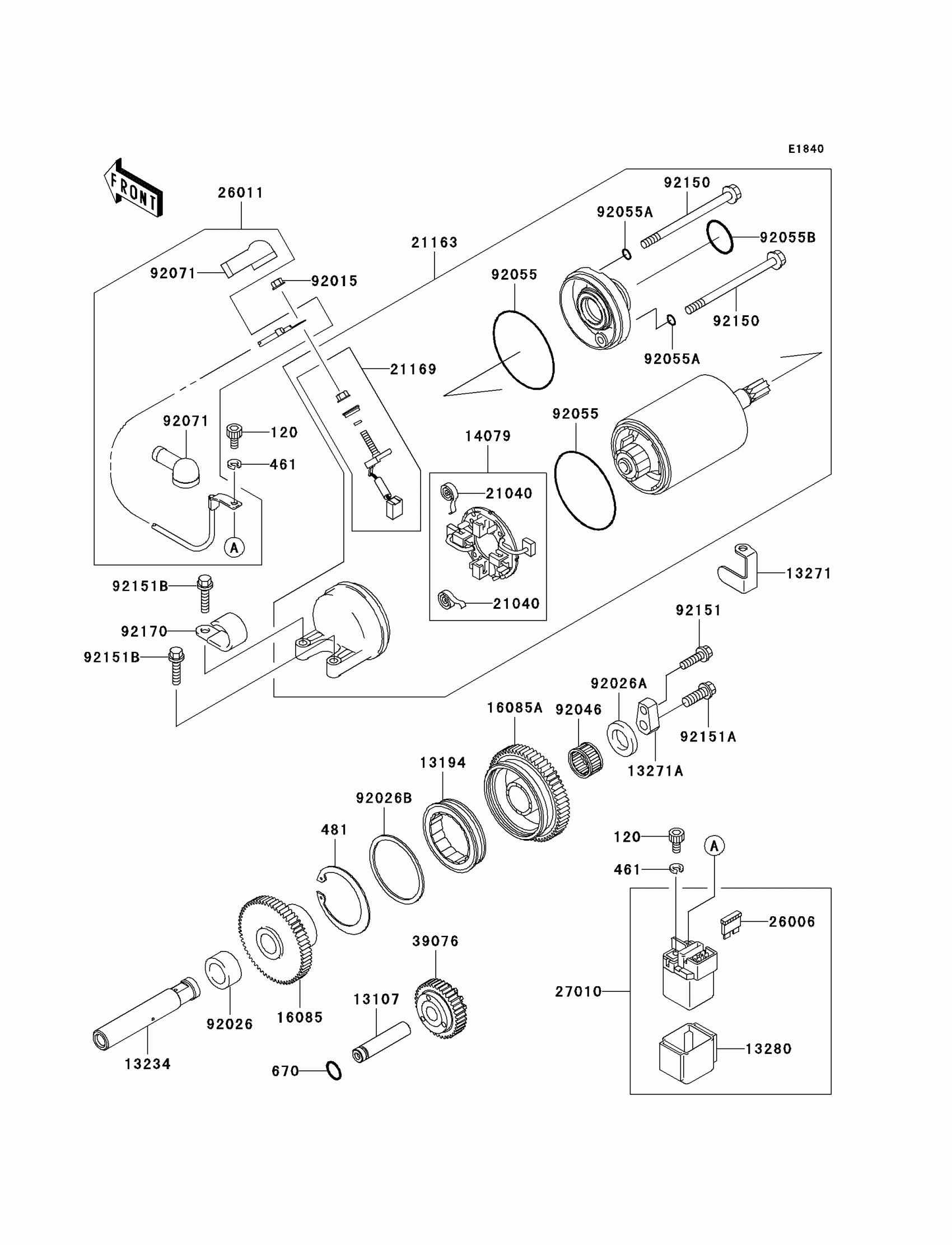

Kawasaki Ninja® ZX™-12R (European) Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120S0510

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

481

CIRCLIP

481J6200

$8.56

670

O RING,9MM

670D1509

$3.57

13107

SHAFT

13107-1422

$22.37

13194

CLUTCH-ONEWAY

13194-1111

$186.43

13234

SHAFT-COMP

13234-1114

$68.10

13271

PLATE

13271-1231

$4.10

13271A

PLATE

13271-1639

$19.42

13280

HOLDER

13280-1263

$13.05

14079

HOLDER-ASSY,STARTER

14079-0009

$99.58

16085

GEAR

16085-1328

$119.57

16085A

GEAR

16085-1343

$149.45

21040

SPRING-BRUSH

21040-0001

$7.56

21163

STARTER-ELECTRIC

21163-1302

$670.82

21169

TERMINAL,STARTER

21169-1058

$60.22

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-1749

$74.83

27010

SWITCH,MAGNETIC

27010-1446

$130.78

39076

LIMITER

39076-1074

$144.27

92015

NUT

92015-1623

$4.59

92026

SPACER,LH

92026-1541

$10.22

92026A

SPACER,RH

92026-1542

$13.66

92026B

SPACER,ONEWAY CLUTCH

92026-1550

$8.07

92046

BEARING-NEEDLE

92046-1288

$15.24

92055

RING-O,62MM

92055-1260

$9.80

92055A

RING-O,4.5MM

92055-1261

$2.29

92055B

RING-O,24.4X3.1

92055-1262

$11.90

92071

GROMMET,STARTER TERMINAL

92071-1120

$12.80

92150

BOLT

92150-1237

$7.46

92151

BOLT,6X22

92151-1411

$2.02

92151A

BOLT,8X22

92151-1543

$2.15

92151B

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92170

CLAMP,HARNESS

92170-1900

$5.46
