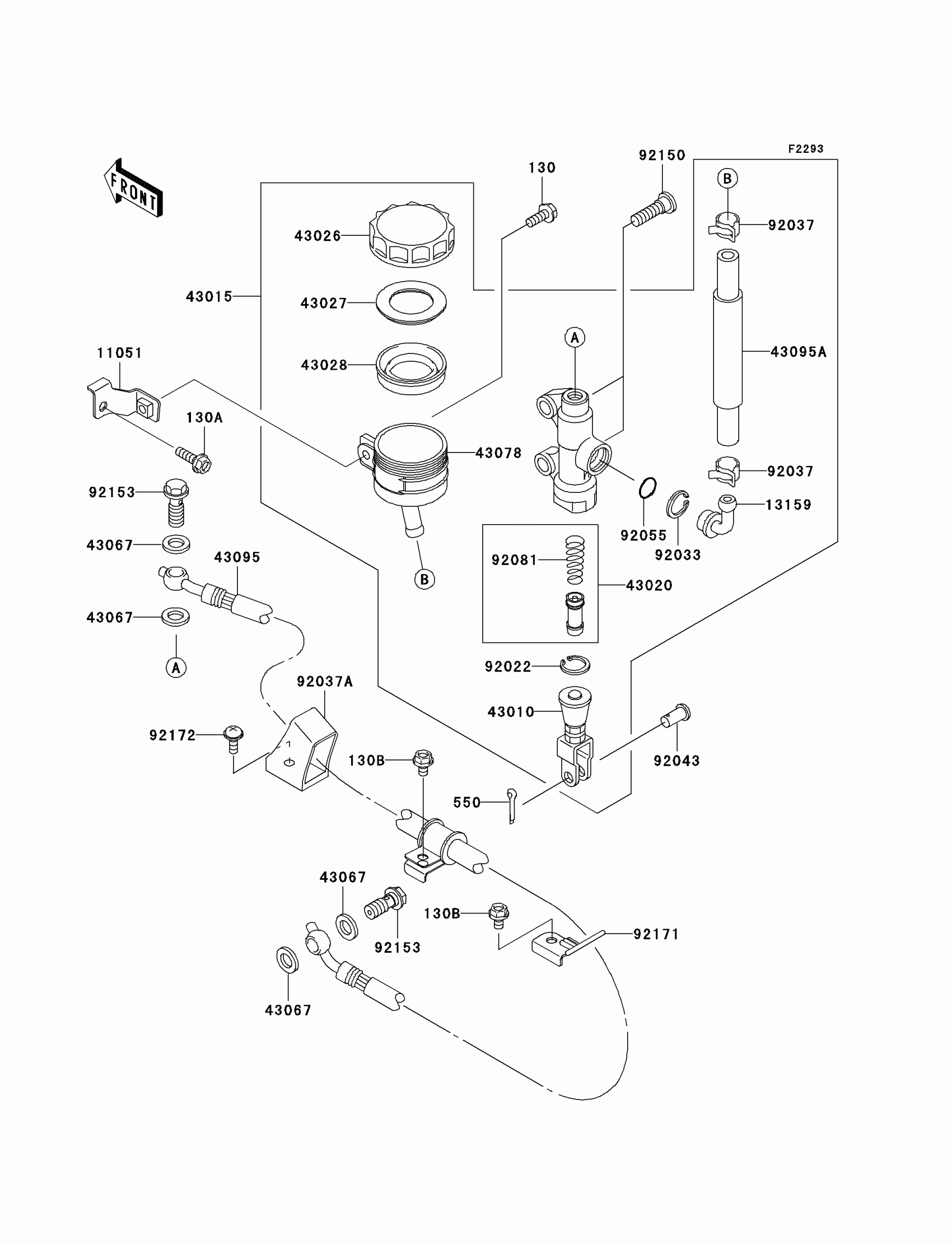

Kawasaki Ninja® ZX™-12R (European) Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED

130J0620

$0.43

130B

BOLT-FLANGED,6X10

130L0610

$2.33

550

PIN COTTER 2.0X15

550D2015

$1.04

11051

BRACKET,RESERVOIR TANK

11051-1378

$10.28

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1055

$69.04

43015

CYLINDER-ASSY-MASTER,RR

43015-1649

$401.82

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095

HOSE-BRAKE,RR

43095-0090

$86.32

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-1161

$38.11

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92037A

CLAMP,HOSE

92037-1896

$23.23

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,SOCKET,8X30

92150-1843

$3.90

92153

BOLT,OIL,L=23

92153-0627

$5.48

92171

CLAMP,BRAKE HOSE,RR

92171-1162

$22.01

92172

SCREW,6X14

92172-0004

$2.80
