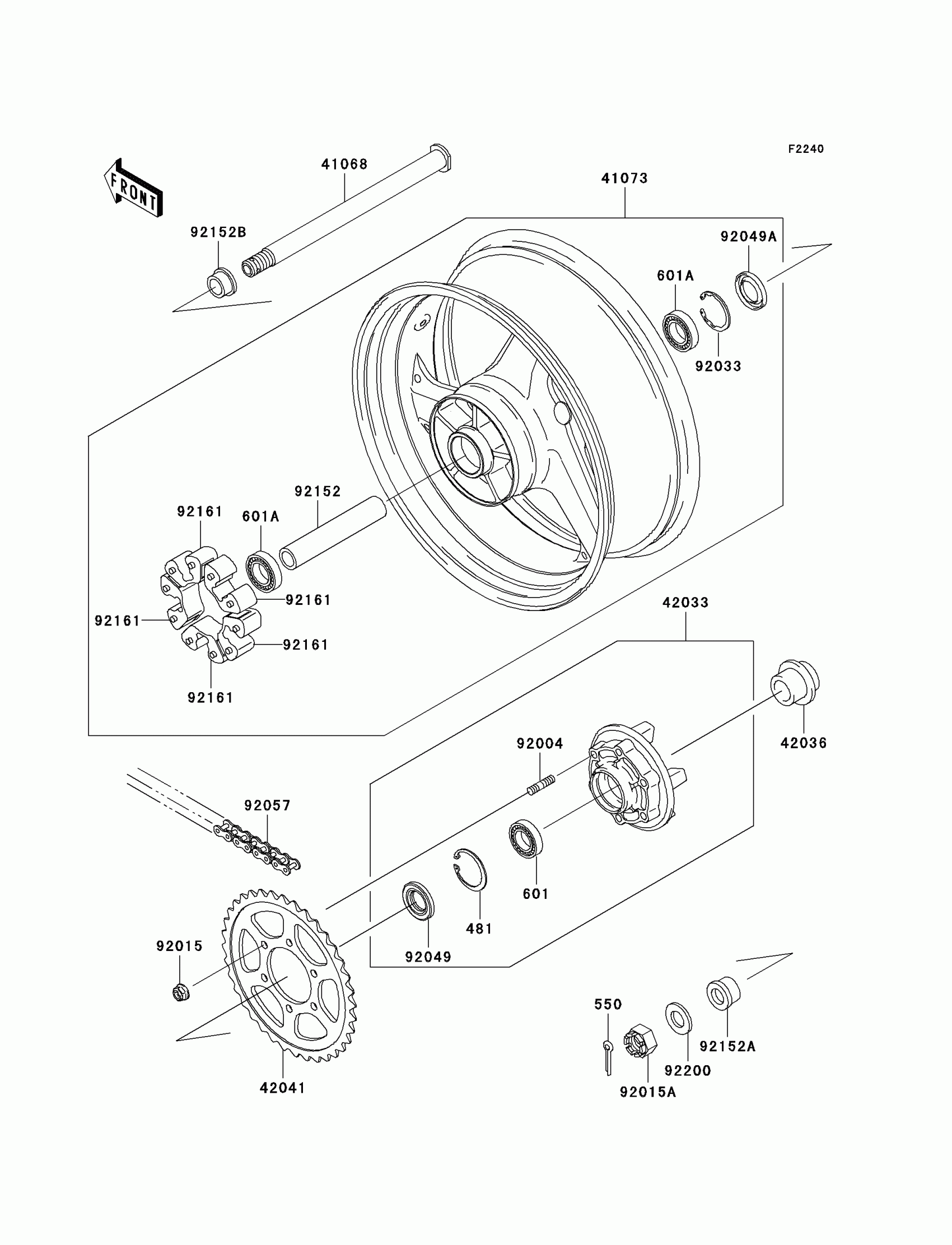

Kawasaki Ninja® ZX™-12R (European) Rear Hub Diagram

Description

Price

481

CIRCLIP

481J5500

$8.84

550

PIN-COTTER,4.0X40

550D4040

$1.36

601

BEARING-BALL,#6006G

601B6006G

$29.13

601A

BEARING-BALL

601B6205UU

$29.62

41068

AXLE,RR

41068-1416

$119.69

41073

WHEEL-ASSY,RR,C.GOLD

41073-1681-457

$1,189.37

42033

COUPLING-ASSY,RR HUB

42033-1203

$303.47

42036

SLEEVE,RR HUB,L=22

42036-1279

$29.08

42041

SPROCKET-HUB,46T

42041-1523

$112.77

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,CASTLE,24MM

92015-1844

$13.60

92033

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,PJN40556

92049-1263

$17.95

92049A

SEAL-OIL,RR HUB

92049-1375

$19.15

92057

CHAIN,DRIVE,DID50ZVM3X116L

92057-1477

Unavailable

92152

COLLAR,RR HUB,L=152.5

92152-1080

$33.49

92152A

COLLAR,RR AXLE,LH,L=16.5

92152-1181

$36.93

92152B

COLLAR,RR AXLE,RH,L=16

92152-1246

$25.14

92161

DAMPER,SHOCK,RR HUB

92161-1286

$28.94

92200

WASHER,25.5X38X3.2

92200-1479

Unavailable
