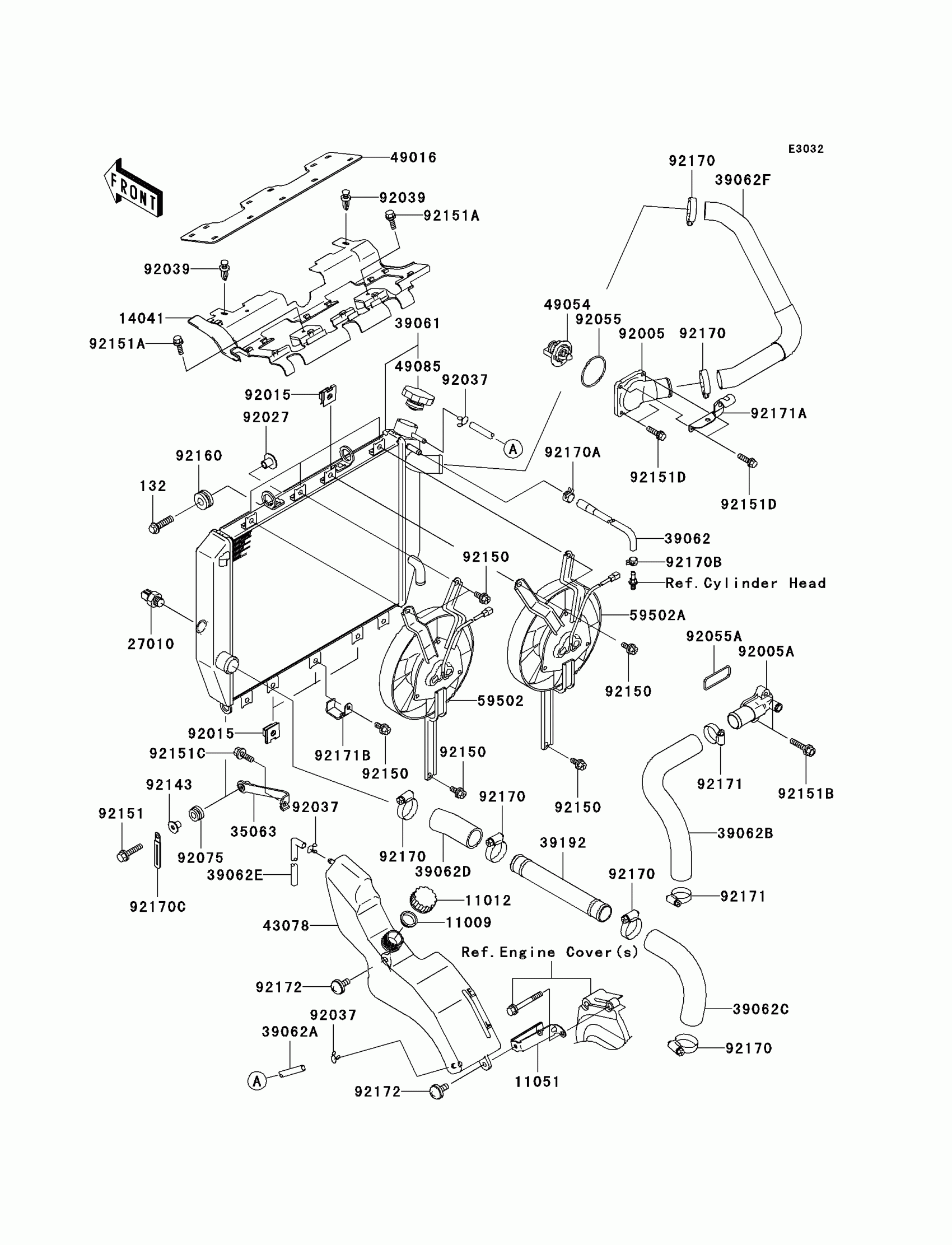

Kawasaki Ninja® ZX™-12R (European) Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11051

BRACKET

11051-1435

$15.16

14041

COVER-COMP

14041-1170

$136.20

27010

SWITCH

27010-1443

$135.39

35063

STAY

35063-1058

$32.18

39061

RADIATOR-ASSY

39061-1304

$1,237.66

39062

HOSE-COOLING,RADIATOR

39062-0063

$19.16

39062A

HOSE-COOLING,RADIATOR-RESERVE

39062-1719

$19.41

39062B

HOSE-COOLING,PUMP-CYLINDER

39062-1792

$57.98

39062C

HOSE-COOLING,PIPE-PUMP

39062-1795

$39.37

39062D

HOSE-COOLING,RADIATOR-PIPE

39062-1807

$25.05

39062E

HOSE-COOLING

39062-1862

$22.93

39062F

HOSE-COOLING,HEAD-RADIATOR

39062-1863

$104.27

39192

PIPE-WATER

39192-1129

$53.88

43078

RESERVOIR

43078-0016

$95.85

49016

COVER-SEAL,COVER-COMP

49016-1214

$21.77

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$53.94

59502

FAN-ASSY,LH

59502-1143

$780.32

59502A

FAN-ASSY,RH

59502-1144

$780.32

92005

FITTING

92005-1362

$38.32

92005A

FITTING

92005-1364

$38.62

92015

NUT

92015-1487

$4.80

92027

COLLAR,FUEL TANK FITT

92027-1134

$10.28

92037

CLAMP,TUBE

92037-147

$7.34

92039

RIVET

92039-1227

$1.81

92055

RING-O,53.5X2.6

92055-112

$6.63

92055A

RING-O

92055-1402

$7.84

92075

DAMPER,RUBBER

92075-1123

$5.00

92143

COLLAR

92143-1353

$8.58

92150

BOLT,6X12

92150-1186

$3.37

92151

BOLT,FLANGED,6X25

92151-1225

$2.46

92151A

BOLT,6X12

92151-1239

$2.46

92151B

BOLT,FLANGED,6X25

92151-1546

$2.37

92151C

BOLT,FLANGED,6X16

92151-1774

Unavailable

92151D

BOLT

92151-1776

$2.34

92160

DAMPER

92160-1007

$5.52

132

BOLT-FLANGED-SMALL,8X30

132J0830

$4.15

92170

CLAMP

92170-1036

$8.72

92170A

CLAMP

92170-1201

$5.33

92170B

CLAMP

92170-1493

$5.00

92170C

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-1215

$14.02

92171B

CLAMP,RADIATOR

92171-1465

$14.32

92172

SCREW,6X14

92172-0004

$2.80
