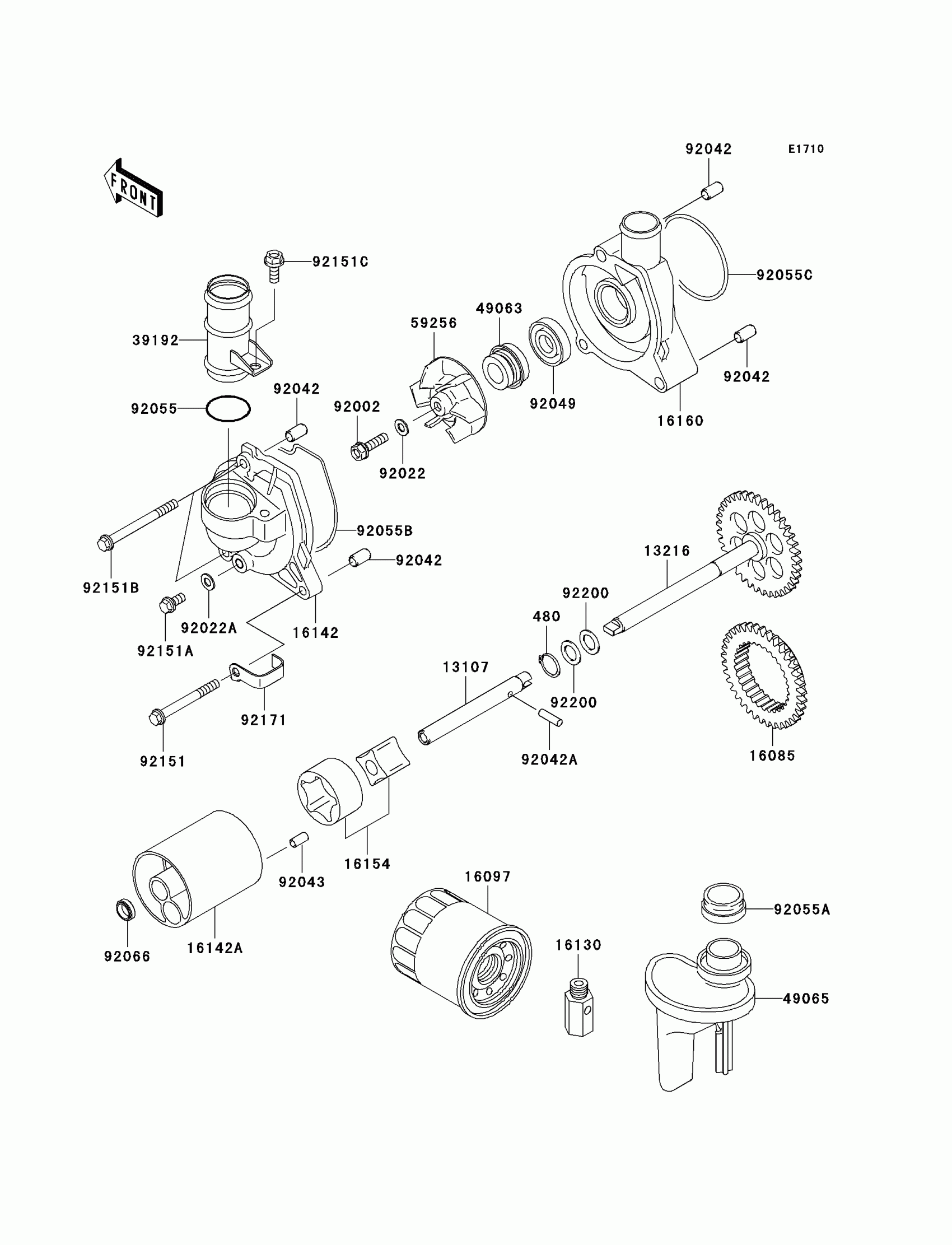

Kawasaki Ninja® ZX™-12R (European) Oil Pump Diagram
#
Description
Price
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
13107
SHAFT,PUMP,LH
13107-1419
$37.32
13216
GEAR-COMP,PUMP,RH
13216-1183
$131.06
16085
GEAR
16085-1326
$128.52
16097
FILTER-ASSY-OIL
16097-0002
$14.50
16130
VALVE-ASSY-RELIEF
16130-1058
$41.98
16142
COVER-PUMP,WATER
16142-0016
$139.89
16142A
COVER-PUMP,OIL
16142-1168
$79.46
16154
ROTOR-PUMP
16154-1133
$83.61
16160
BODY,WATER PUMP
16160-1324
$131.06
39192
PIPE-WATER
39192-1128
$38.16
49063
SEAL-MECHANICAL
49063-1055
$20.06
49065
FILTER-OIL
49065-1084
$34.34
59256
IMPELLER
59256-0001
$46.95
92002
BOLT,6X22
92002-1154
$4.69
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,6.2X11X1
92022-304
$3.65
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92042A
PIN,DOWEL,4X15.8
92042-014
$0.43
92043
PIN,4.2X6X12
92043-1262
$4.31
92049
SEAL-OIL,SC 11 28.55 5
92049-1336
Unavailable
92055
RING-O,27.6X3.2
92055-1328
$7.62
92055A
RING-O,OIL FILTER
92055-1503
$9.51
92055B
RING-O,WATER PUMP COVER
92055-1602
$11.75
92055C
RING-O,59.6X2.4
92055-3018
$6.22
92066
PLUG
92066-1537
$15.02
92151
BOLT,6X55
92151-1132
$4.87
92151A
BOLT,6X12
92151-1133
Unavailable
92151B
BOLT,6X65
92151-1199
$4.87
92151C
BOLT,FLANGED,6X16
92151-1774
Unavailable
92171
CLAMP
92171-1179
$10.28
92200
WASHER
92200-1009
$5.07
