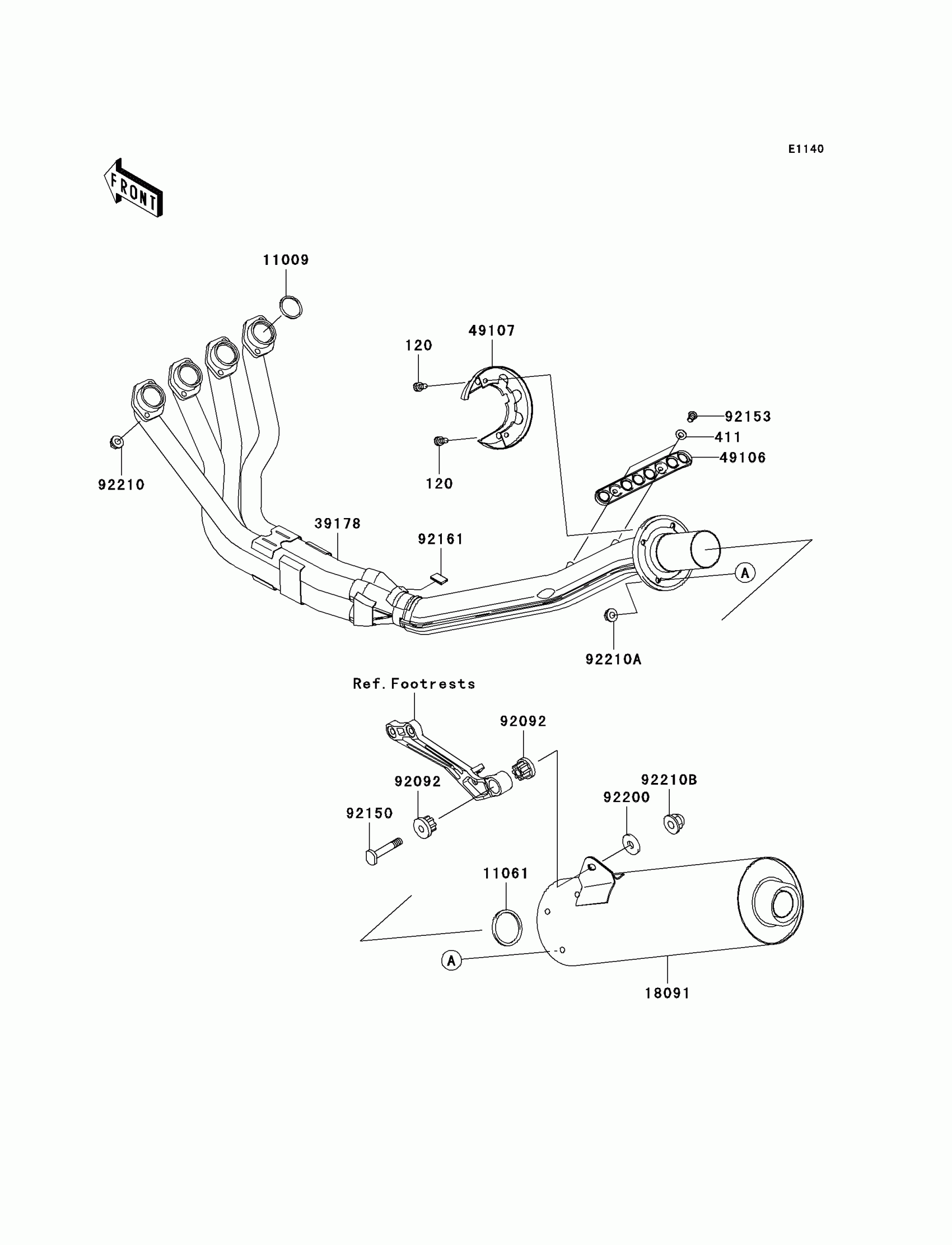

Kawasaki Ninja® ZX™-12R (European) Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120R0610

$1.76

411

WASHER-PLAIN,6MM

411S0600

$1.49

11009

GASKET,EXHAUST PIPE H

11009-1840

$6.23

11061

GASKET,MUFFLER CONNECT

11061-1095

$29.50

18091

BODY-COMP-MUFFLER

18091-0224

Unavailable

39178

MANIFOLD-COMP-EXHAUST

39178-0015

$1,501.05

49106

COVER-MUFFLER

49106-0009

$129.35

49107

COVER-EXHAUST PIPE,END

49107-1185

$94.91

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

92150

BOLT,10X55

92150-1792

$8.44

92153

BOLT,6X12

92153-0554

$4.22

92161

DAMPER

92161-1228

$7.51

92200

WASHER,10.5X25X2.0

92200-1377

$3.19

92210

NUT,8MM

92210-0121

$1.62

92210A

NUT,8MM

92210-1114

$1.76

92210B

NUT,CAP,10MM

92210-1121

$3.22
