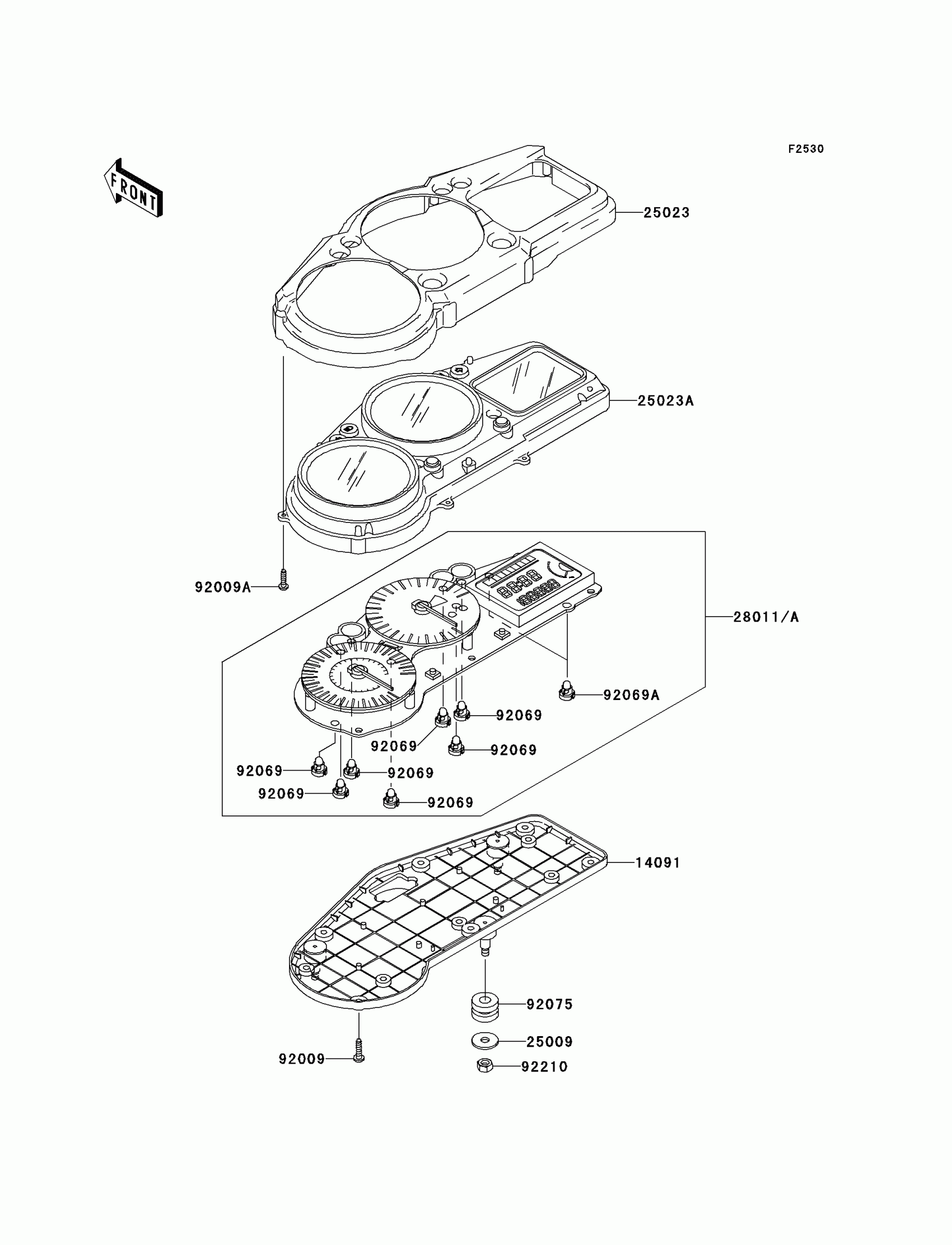

Kawasaki Ninja® ZX™-12R (European) Meter(s) Diagram

Description

Price

14091

COVER,METER HOUSING

14091-1503

$152.68

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25023

COVER-METER CASE,UPP

25023-1262

$203.90

25023A

COVER-METER CASE

25023-1263

$56.48

92009

SCREW,4X16,BLACK

92009-1158

$3.20

92009A

SCREW,TAPPING,3X14

92009-1592

$3.25

92069

BULB,T3.4,12V1.1W

92069-1110

$5.90

92069A

BULB,T3,12V0.7W

92069-1113

$7.59

92075

DAMPER

92075-1435

$4.84

92210

NUT,5MM

92210-1124

$1.95

28011

METER,SPEED&TACHO,KPH

28011-0020

$938.10

28011A

METER,SPEED&TACHO,MPH

28011-0021

Unavailable
