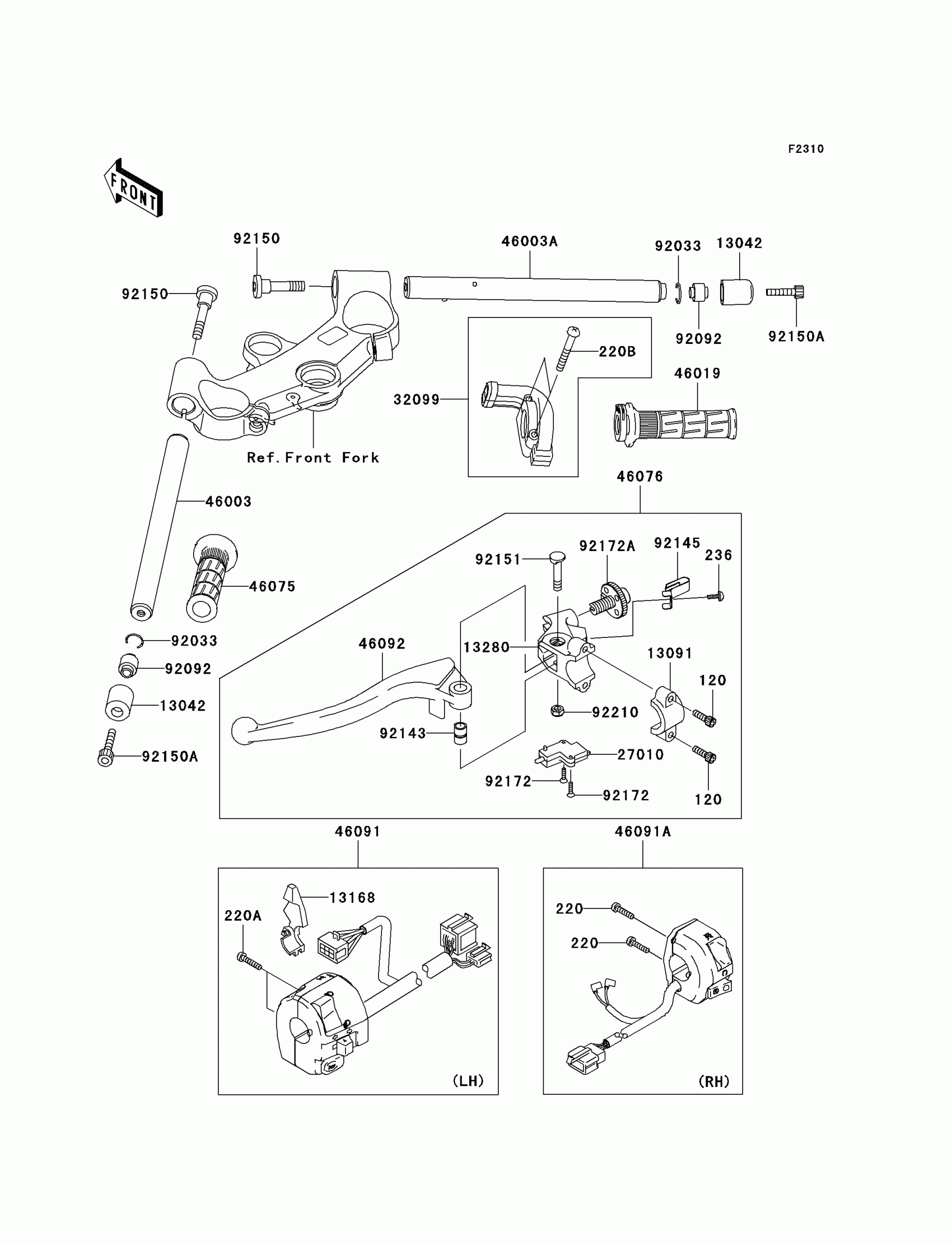

Kawasaki Ninja® ZX™-12R (European) Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

220

SCREW-PAN-CROS,5X22

220C0522

$1.11

220A

SCREW-PAN-CROS,5X25

220C0525

$3.52

220B

SCREW-PAN-CROS,5X35

220C0535

$2.06

236

SCREW-PAN-WSP-CROS,4X10

236C0410

$1.52

13042

WEIGHT,HANDLE

13042-1006

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1624

$35.87

13168

LEVER,CHOKE

13168-1516

$9.37

13280

HOLDER,CLUTCH LEVER

13280-1160

$47.20

27010

SWITCH,CLUTCH,BLACK

27010-1094

$28.59

32099

CASE,THROTTLE CABLE

32099-1193

$41.24

46003

HANDLE,LH

46003-1523

$127.56

46003A

HANDLE,RH

46003-1550

$132.04

46019

GRIP-ASSY,THROTTLE

46019-1095

$54.17

46075

GRIP,HANDLE,LH

46075-1144

$20.96

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0015

$70.76

46091

HOUSING-ASSY-CONTROL,LH

46091-0030

$209.94

46091A

HOUSING-ASSY-CONTROL,RH

46091-1809

$156.89

46092

LEVER-GRIP,CLUTCH

46092-1214

$19.94

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92092

BUSHING-RUBBER,HANDLE

92092-1018

Unavailable

92143

COLLAR

92143-1351

$17.91

92145

SPRING

92145-1286

$5.95

92150

BOLT,SOCKET,10X37

92150-1469

$7.75

92150A

BOLT,SOCKET,8X30

92150-1604

$5.78

92151

BOLT

92151-1523

$7.45

92172

SCREW,3X16

92172-0183

$2.15

92172A

SCREW,ADJUST NUT

92172-1060

$39.14

92210

NUT,LOCK,6MM

92210-0006

$2.46
