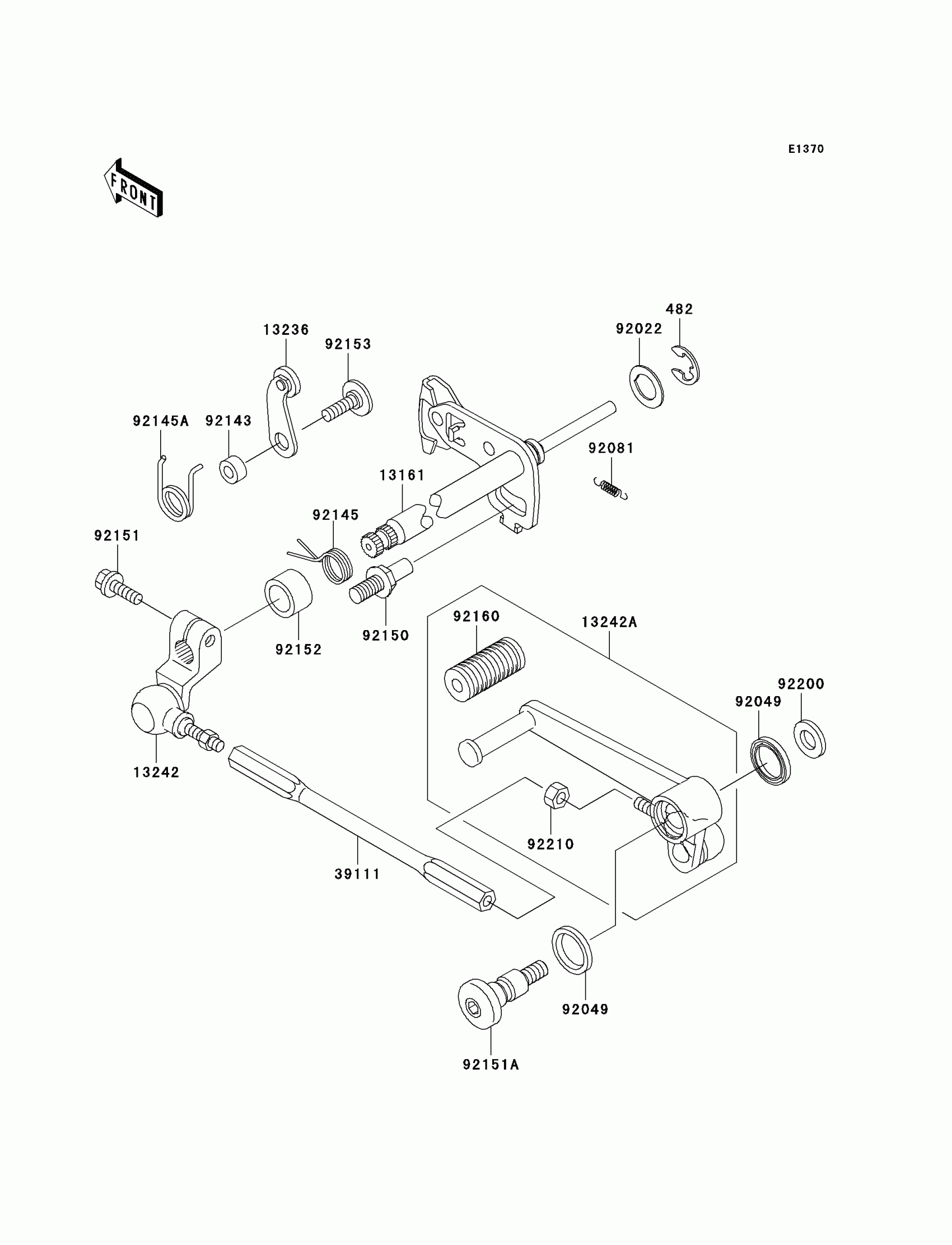

Kawasaki Ninja® ZX™-12R (European) Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

13161

LEVER-COMP-CHANGE SHAFT

13161-1283

$95.71

13236

LEVER-COMP,POSITION

13236-1307

$8.08

13242

LEVER-ASSY-CHANGE,BOSS

13242-1348

$56.82

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-1363

$105.99

39111

ROD-TIE

39111-1166

$48.79

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92049

SEAL-OIL,VB13193

92049-1398

$4.67

92081

SPRING,PAWL RETURN

92081-1708

$5.66

92143

COLLAR

92143-1595

$9.22

92145

SPRING

92145-1122

$9.37

92145A

SPRING

92145-1257

$3.75

92150

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92151A

BOLT,CHANGE PEDAL

92151-1481

Unavailable

92152

COLLAR,14.2X19.9X12.0

92152-1383

$3.19

92153

BOLT,6X20

92153-0896

$5.59

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85

92200

WASHER,8.5X25X1.5

92200-3717

$4.34

92210

NUT,6MM

92210-1100

$1.68
