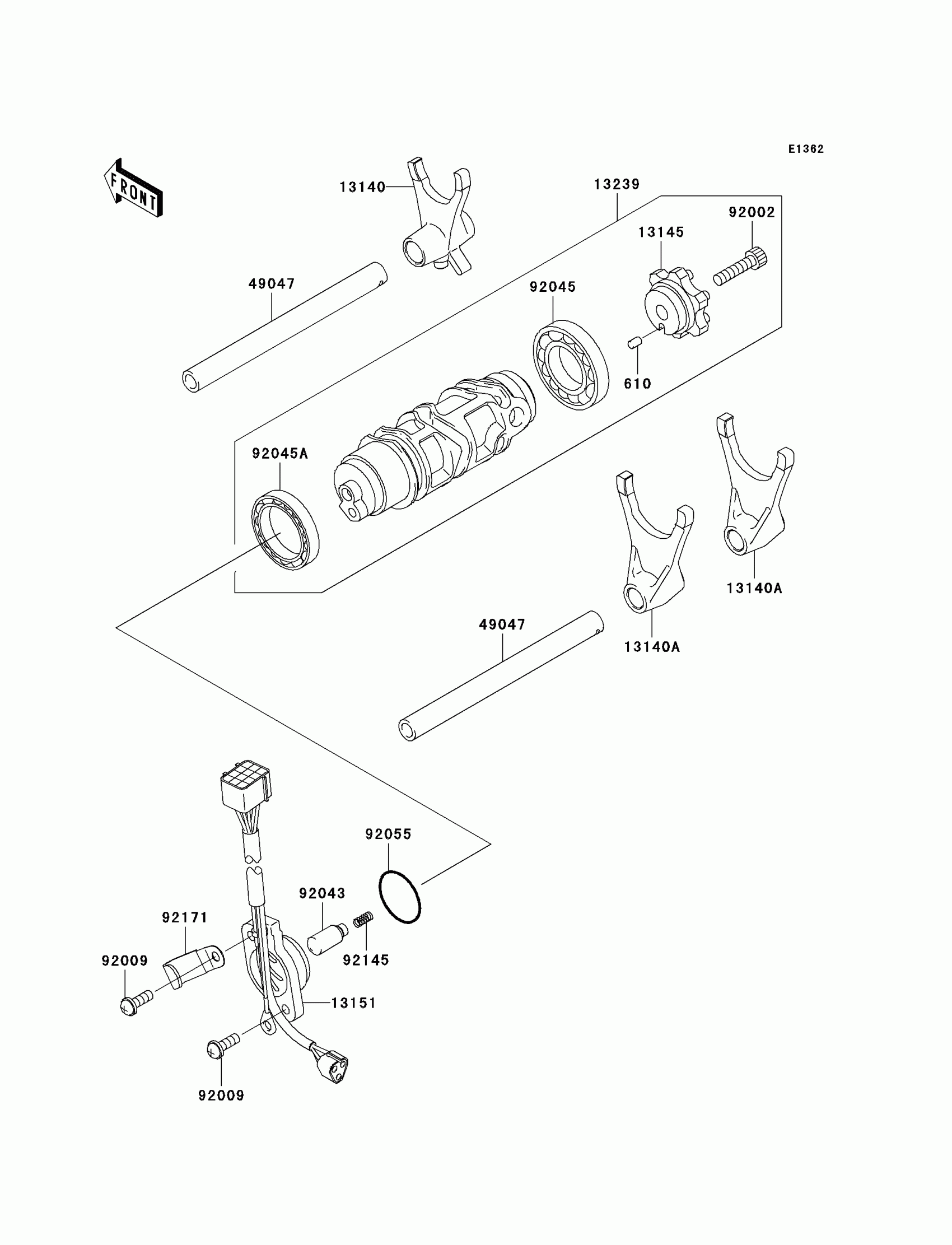

Kawasaki Ninja® ZX™-12R (European) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X6

610A0406

$4.31

13140

FORK-SHIFT,INPUT

13140-1290

$134.72

13140A

FORK-SHIFT,OUTPUT

13140-1291

$127.36

13145

CAM-CHANGE DRUM

13145-1090

$65.11

13151

SWITCH-COMP,NEUTRAL

13151-0014

$144.71

13239

DRUM-ASSY-CHANGE

13239-0011

$293.38

49047

ROD-SHIFT

49047-1103

$29.24

92002

BOLT,SOCKET,6X25

92002-1696

$1.94

92009

SCREW

92009-1895

$1.83

92043

92043-1654

$3.74

92045

BEARING-BALL,16005

92045-1045

$28.25

92045A

BEARING-BALL,6806

92045-1152

$45.82

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-1414

$4.14

92171

CLAMP

92171-1126

$9.21
