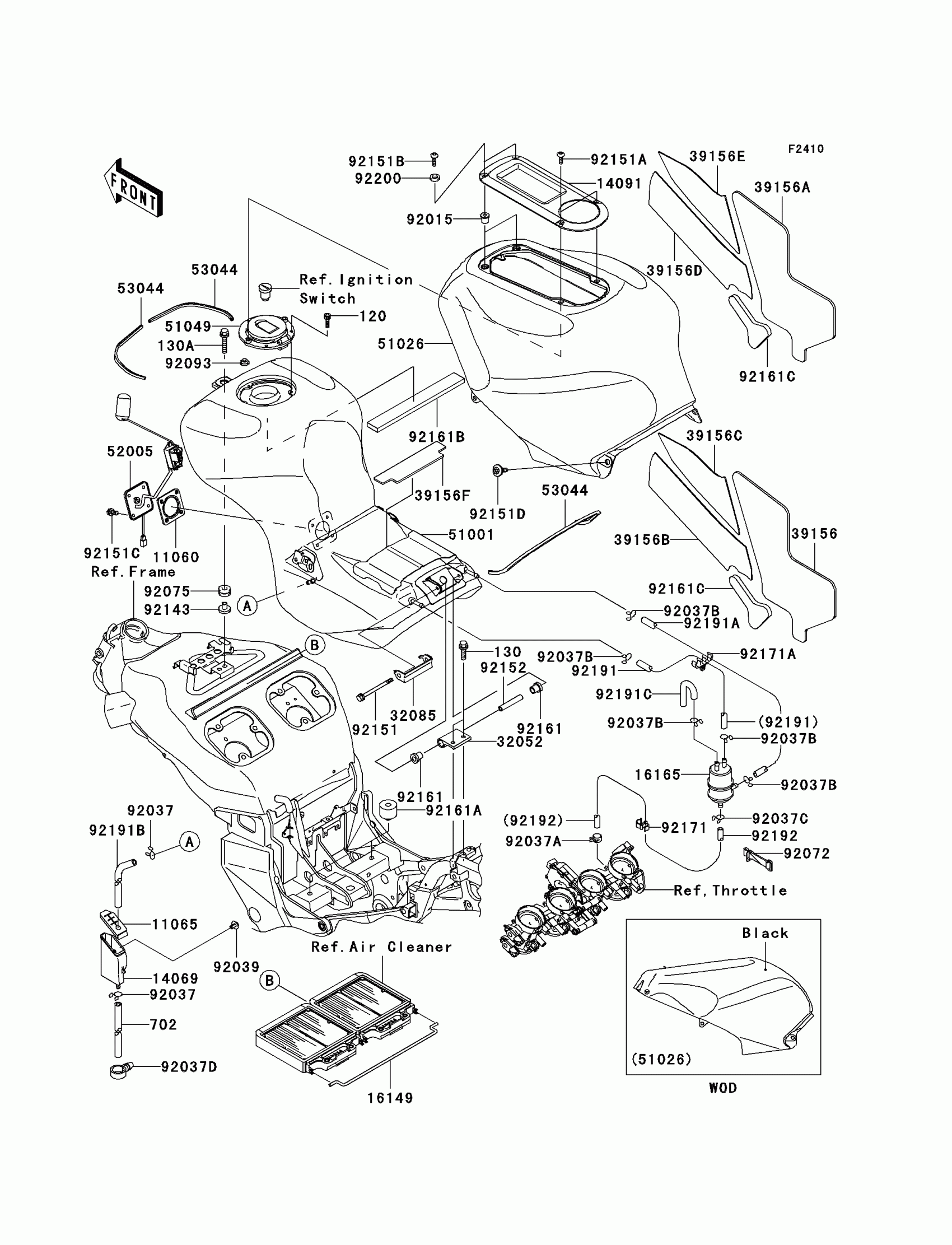

Kawasaki Ninja® ZX™-12R (European) Fuel Tank Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

11065

CAP,BREATHER

11065-1179

$18.42

14069

BREATHER,FUEL TANK DRAIN

14069-1065

$26.14

14091

COVER,FUEL TANK COVER CAP

14091-1145

$78.08

16149

BAR,FUEL TANK

16149-1119

$9.73

16165

SEPARATOR

16165-1001

$79.83

32052

BRACKET-TANK,RR

32052-1500

$25.66

32085

STOPPER,FUEL TANK,RR

32085-1507

$9.92

39156

PAD,FUEL TANK COVER,RR,UPP,LH

39156-1627

$58.46

39156A

PAD,FUEL TANK COVER,RR,UPP,RH

39156-1628

$58.46

39156B

PAD,FUEL TANK COVER,FR,LWR,LH

39156-1688

$46.06

39156C

PAD,FUEL TANK COVER,FR,UPP,LH

39156-1689

$38.71

39156D

PAD,FUEL TANK COVER,FR,LWR,RH

39156-1690

$46.06

39156E

PAD,FUEL TANK COVER,FR,UPP,RH

39156-1691

$38.71

39156F

PAD,FUEL TANK

39156-1695

$5.95

51001

TANK-COMP-FUEL,M.GRAYSTONE

51001-1666-713

$1,212.61

51026

COVER TANK,FUEL,P.M.BLACK

51026-1051-218

Unavailable

51049

CAP-TANK,FUEL

51049-1145

$118.62

52005

GAUGE,FUEL

52005-1158

$239.67

53044

TRIM

53044-1296

$11.49

92015

NUT

92015-1700

$6.55

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP

92037-1712

$3.81

92037D

CLAMP,HOSE

92037-1827

$5.69

92039

RIVET

92039-1256

$1.99

92072

BAND

92072-1085

$13.69

92075

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92143

COLLAR

92143-1515

$16.82

92151

BOLT,6X80

92151-1200

$3.27

92151A

BOLT,SOCKET,6X10

92151-1449

$1.57

92151B

BOLT,SOCKET,6X14

92151-1554

$2.15

92151C

BOLT,5X12

92151-1599

$1.23

92151D

BOLT,SOCKET,6MM

92151-1866

$7.29

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED

130J0620

Unavailable

130A

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

702

TUBE-RUBBER,6X9X420

702A06420

$8.29

92152

COLLAR,6.8X10X60

92152-1182

$3.69

92161

DAMPER

92161-1070

$3.76

92161A

DAMPER

92161-1116

$8.93

92161B

DAMPER

92161-1117

$8.95

92161C

DAMPER,FUEL TANK COVER,RR,LWR

92161-1153

$8.95

92171

CLAMP

92171-0354

$4.42

92171A

CLAMP

92171-1213

$8.54

92191

TUBE,SEPARATOR,BLUE

92191-1381

$12.51

92191A

TUBE,SEPARATOR,RED

92191-1382

$18.42

92191B

TUBE

92191-1468

$3.75

92191C

TUBE,SEPARATOR

92191-1654

$20.51

92192

TUBE,SEPARATOR,WHITE

92192-0127

$16.97

92200

WASHER,6.2X10X1

92200-1465

$1.20
