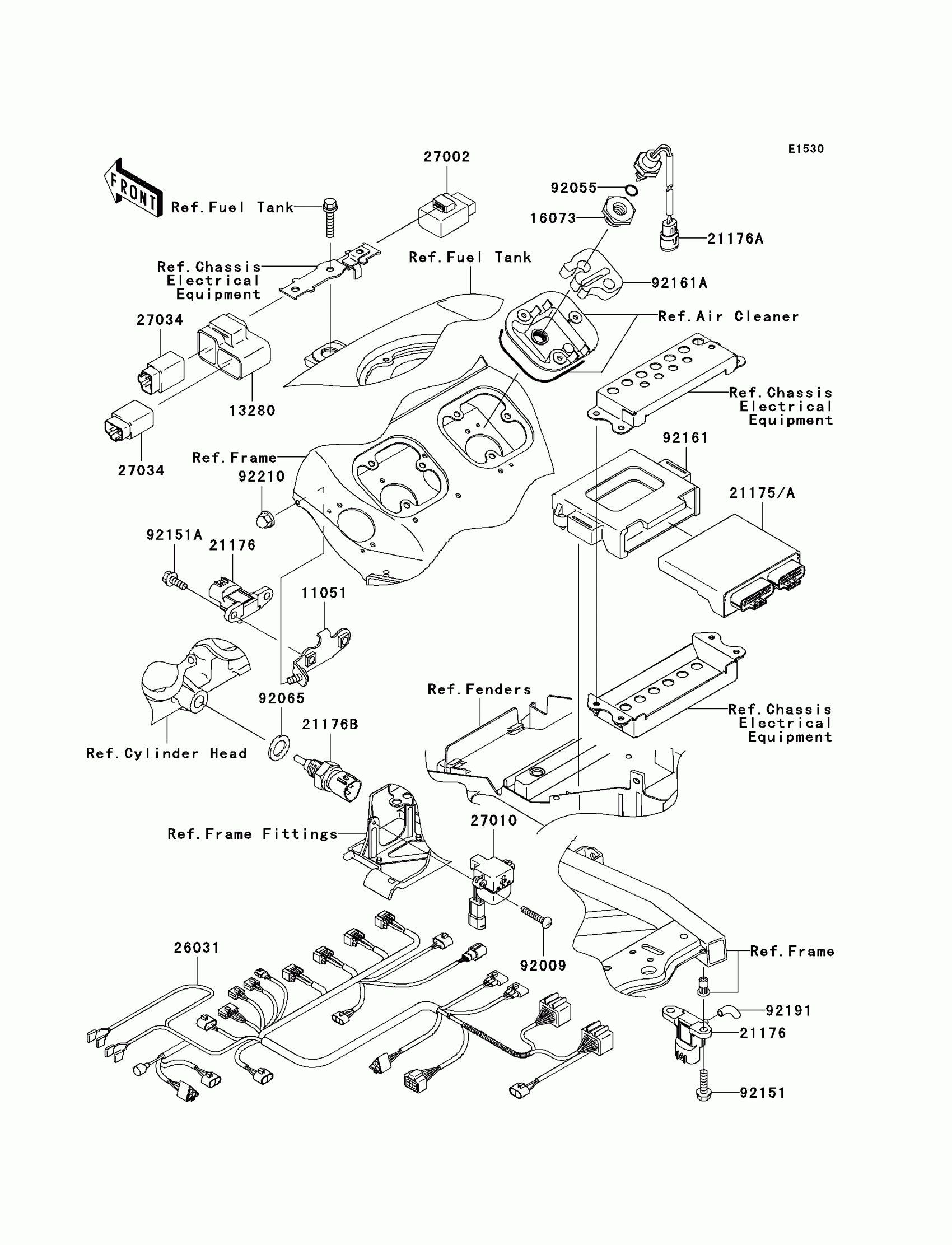

Kawasaki Ninja® ZX™-12R (European) Fuel Injection Diagram

Description

Price

11051

BRACKET

11051-1660

$16.29

13280

HOLDER,RELAY ASSY

13280-1274

$12.37

16073

INSULATOR

16073-1121

$10.28

21176

SENSOR,PRESSURE

21176-1095

$149.36

21176A

SENSOR,AIR TEMPERATURE

21176-1097

$127.53

21176B

SENSOR,WATER TEMPERATURE

21176-1098

$79.84

26031

HARNESS

26031-0137

$390.12

27002

RELAY-ASSY

27002-1062

$45.39

27010

SWITCH

27010-1426

$231.98

27034

RELAY,FAN

27034-1073

$38.34

92009

SCREW,4X20

92009-1897

$1.58

92055

RING-O,ID=9.5

92055-1386

$3.92

92065

GASKET,12X22X2

92065-097

$0.74

92151

BOLT,6X22

92151-1236

Unavailable

92151A

BOLT,FLANGED,6X16

92151-1774

Unavailable

92161

DAMPER,CONTROL UNIT

92161-0181

$25.85

92161A

DAMPER

92161-1144

$7.61

92191

TUBE

92191-1499

$4.58

92210

NUT,CAP,6MM

92210-1252

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-0028

$1,267.89

21175A

CONTROL UNIT-ELECTRONIC

21175-0036

Unavailable
