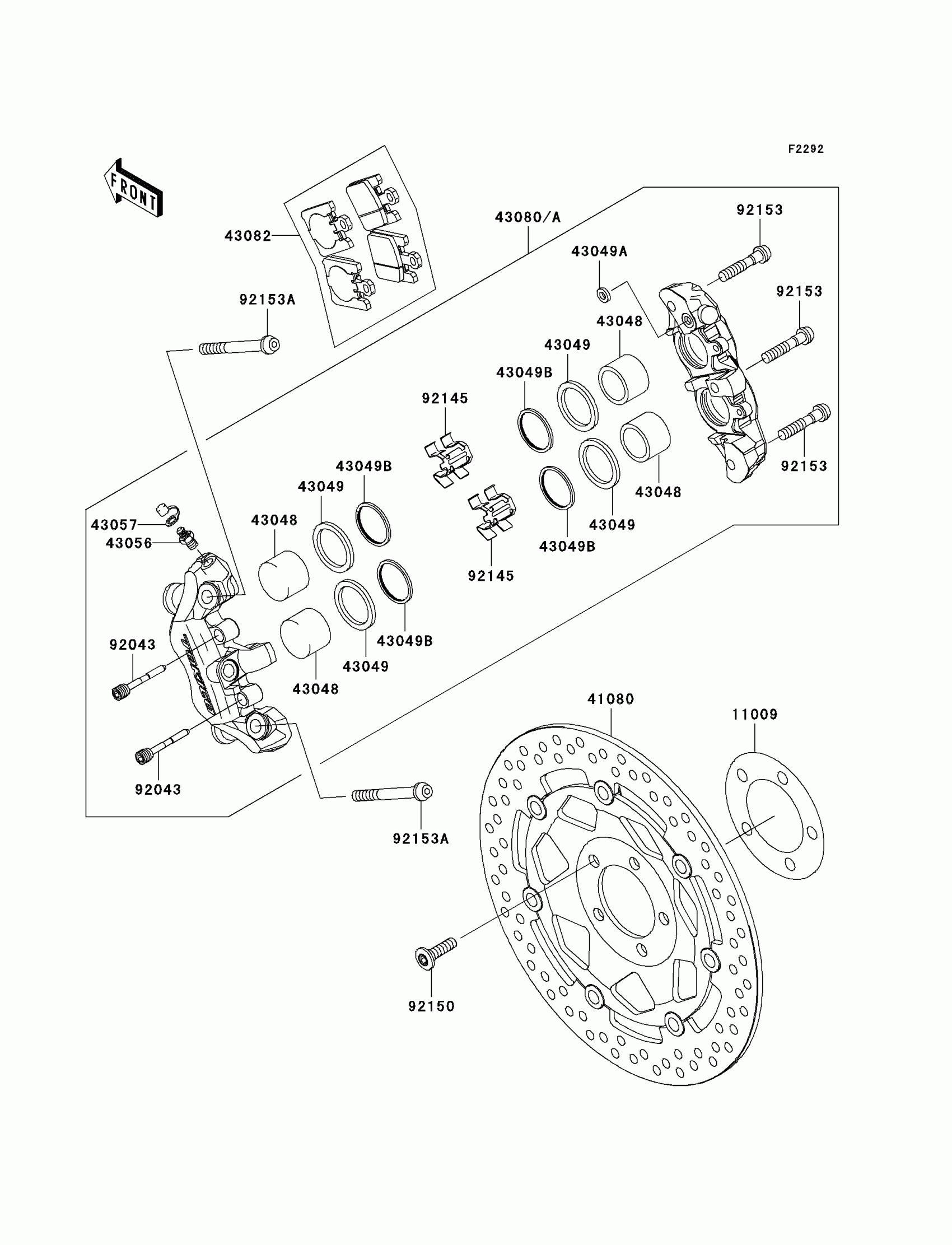

Kawasaki Ninja® ZX™-12R (European) Front Brake Diagram

Description

Price

11009

GASKET,DISC PLATE

11009-1754

$17.92

41080

DISC,FR,HOUSING GLD+DISC SIL

41080-0001-488

$461.30

43048

PISTON-CALIPER

43048-0004

Unavailable

43049

PACKING,PISTON

43049-0003

$10.41

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43049B

PACKING,WIPER

43049-1107

$8.41

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH,GOLD

43080-0017-483

$427.46

43080A

CALIPER-SUB-ASSY,FR,RH,GOLD

43080-0018-483

$427.46

43082

PAD-ASSY-BRAKE

43082-0030

$76.49

92043

PIN,PAD

92043-1709

$6.38

92145

SPRING,PAD

92145-1568

$16.44

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92153

BOLT,SOCKET,8X40

92153-0360

$4.20

92153A

BOLT,SOCKET,10X60

92153-0577

$5.41
