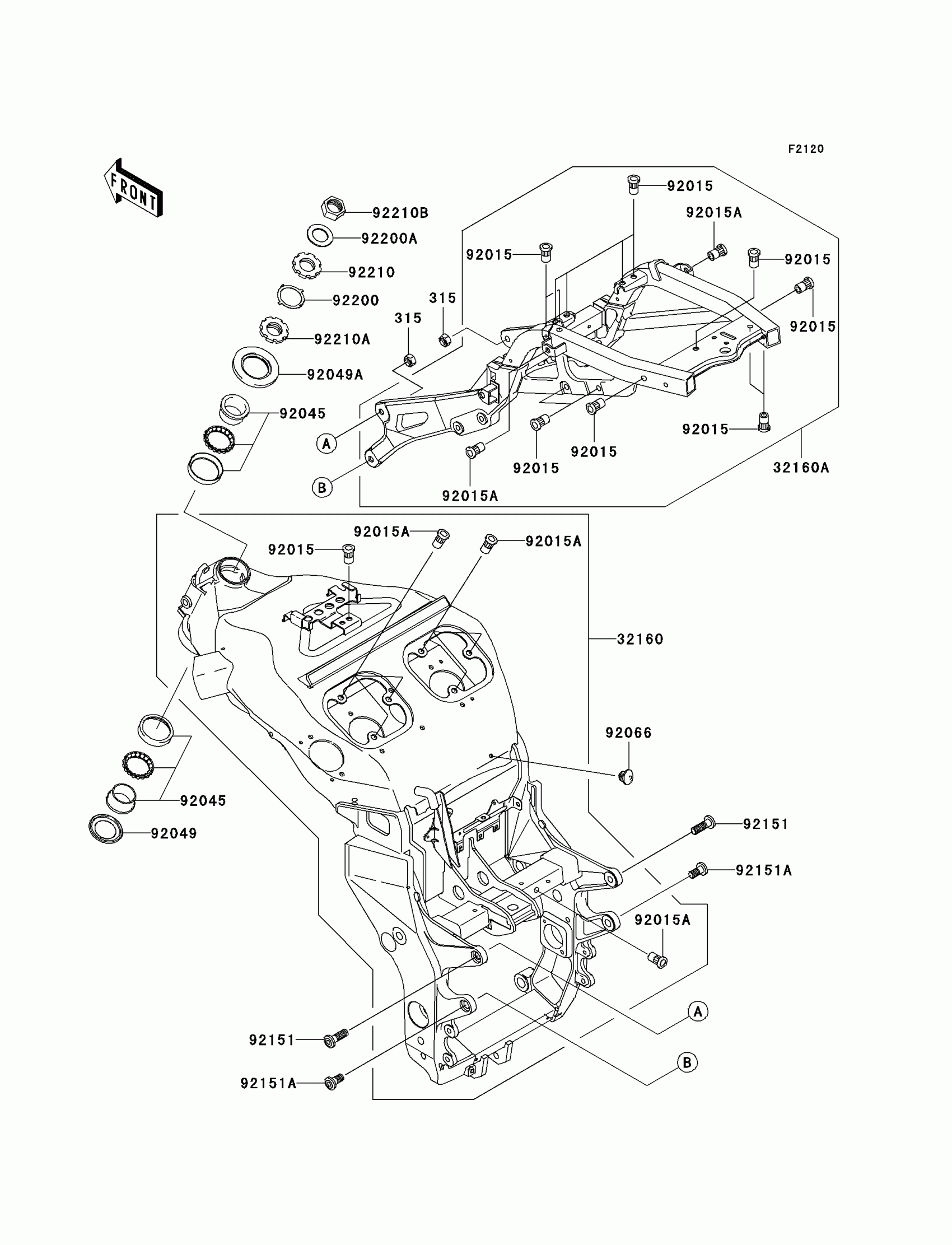

Kawasaki Ninja® ZX™-12R (European) Frame Diagram

Description

Price

315

NUT-HEX-FINE,10MM

315G1000

$1.55

32160

FRAME-COMP,AL,FR,F.S.BLACK

32160-1774-8F

$3,382.69

32160A

FRAME-COMP,AL,RR,F.S.BLACK

32160-1778-8F

$963.81

92015

NUT,POP,6MM,L=15

92015-1791

$4.69

92015A

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$24.41

92066

PLUG

92066-1547

$3.62

92151

BOLT,SOCKET,10X30

92151-1372

$7.62

92151A

BOLT,SOCKET,10X20

92151-1557

$2.80

92200

WASHER

92200-0036

$5.00

92200A

WASHER,25.5X42X2.3

92200-1084

$7.62

92210

NUT,STEERING STEM 35MM

92210-0062

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0077

$18.37

92210B

NUT,25MM

92210-1334

$34.00
