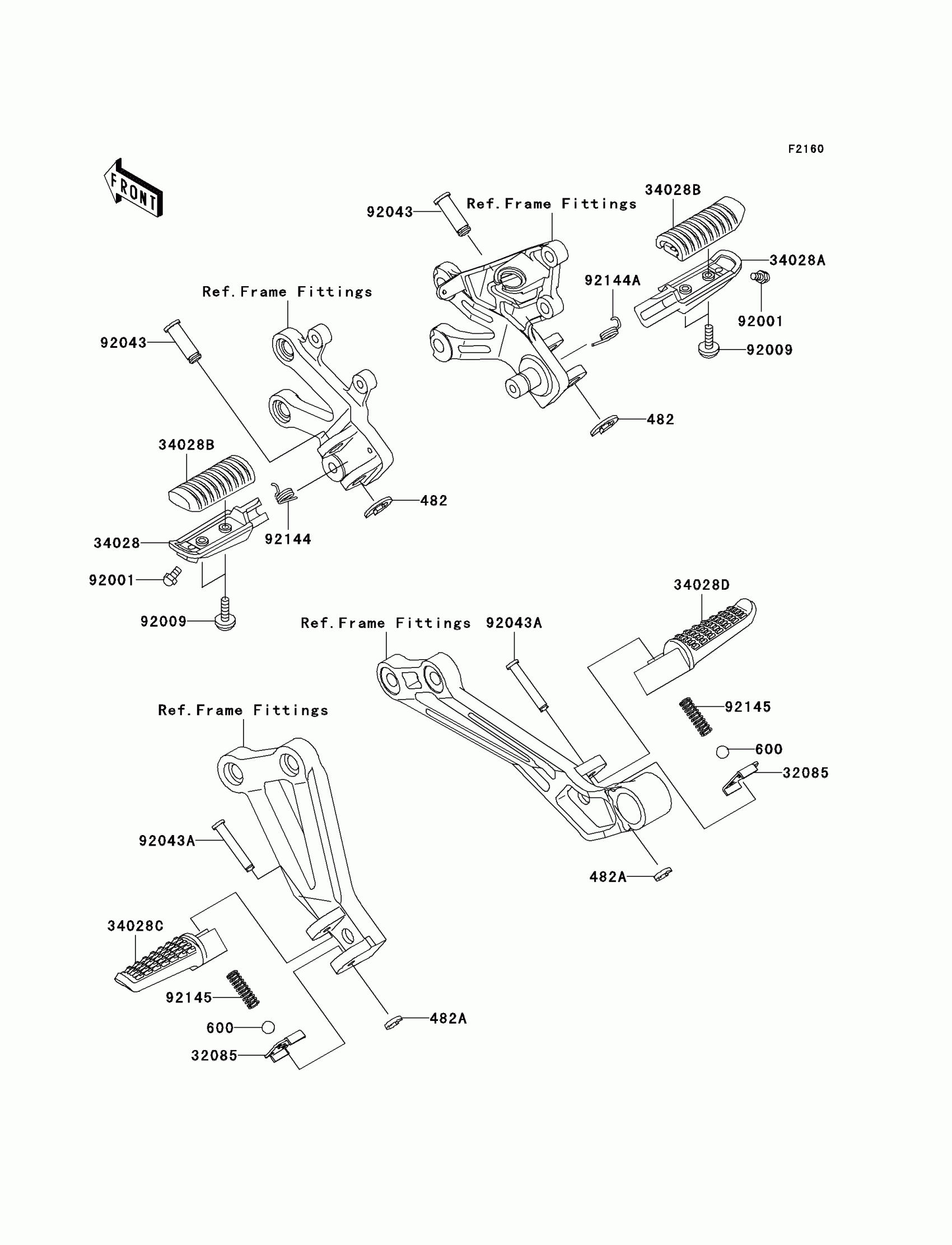

Kawasaki Ninja® ZX™-12R (European) Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62

32085

STOPPER,REAR STEP

32085-0046

$2.90

34028

STEP,FR,LH

34028-1428

$45.52

34028A

STEP,FR,RH

34028-1429

$45.52

34028B

STEP,RUBBER

34028-1430

$22.74

34028C

STEP,RR,LH

34028-1480

$70.39

34028D

STEP,RR,RH

34028-1481

$70.39

92001

BOLT,BANK SENSOR

92001-1905

$7.31

92009

SCREW,5X14

92009-1404

$3.94

92043

PIN,12X42.5

92043-1594

$6.00

92043A

PIN,6X40

92043-1595

$2.34

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51

92145

SPRING

92145-1319

$1.81
