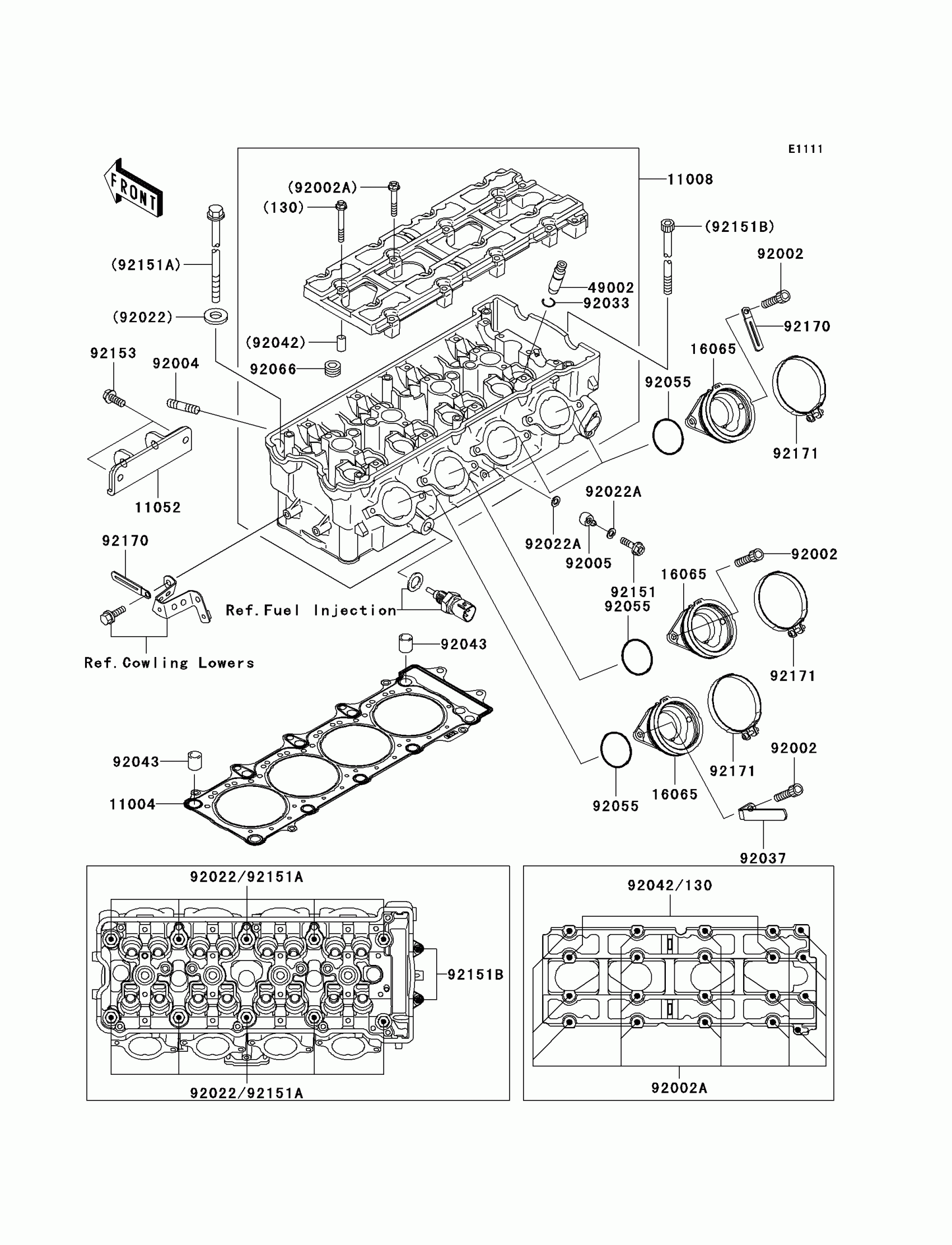

Kawasaki Ninja® ZX™-12R (European) Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X50

130Z0650

Unavailable

11004

GASKET-HEAD

11004-1369

$149.66

11008

HEAD-COMP-CYLINDER

11008-0071

$3,220.68

11052

BRACKET,CYLINDER HEAD

11052-1542

$25.17

16065

HOLDER-CARBURETOR

16065-1377

$39.49

49002

GUIDE-VALVE

49002-1140

Unavailable

92002

BOLT,6X16

92002-1143

$2.99

92002A

BOLT,6X40

92002-1756

$3.57

92004

STUD,8X22

92004-1249

$2.95

92005

FITTING

92005-1346

$15.12

92022

WASHER,11.5X20.5X1.6

92022-1720

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1247

$2.98

92037

CLAMP

92037-1679

$4.18

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,14X14

92043-1593

$5.00

92055

RING-O,47X1.9

92055-1600

$7.00

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92151

BOLT,BANJO,6X20

92151-1329

$9.07

92151A

BOLT,11X168

92151-1513

$13.40

92151B

BOLT,SOCKET,7X120

92151-1804

$11.15

92153

BOLT,8X20

92153-0892

$2.17

92170

CLAMP

92170-1514

$3.29

92171

CLAMP

92171-1089

$13.34
