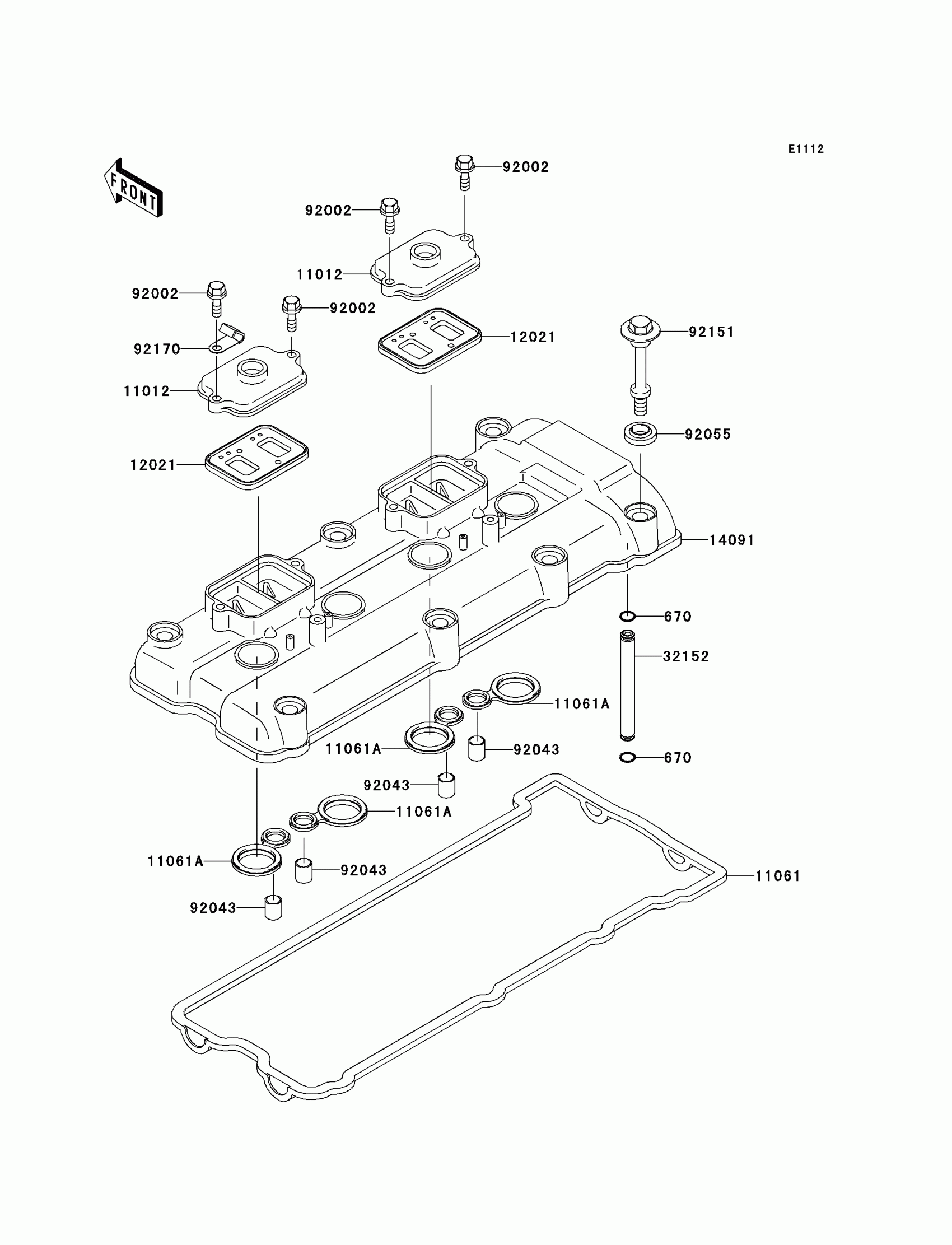

Kawasaki Ninja® ZX™-12R (European) Cylinder Head Cover Diagram

Description

Price

670

O RING,7MM

670D1507

$1.24

11012

CAP,REED VALVE

11012-1758

$31.15

11061

GASKET,HEAD COVER

11061-0090

$63.16

11061A

GASKET,SPARK PLUG HOLE

11061-0105

$8.59

12021

VALVE-ASSY-REED

12021-1129

$90.33

14091

COVER,HEAD

14091-0228

$454.91

32152

PIPE,OIL

32152-1544

$12.66

92002

BOLT,6X20

92002-1237

$3.29

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,HEAD COVER BOLT

92055-1352

$7.62

92151

BOLT,HEAD COVER

92151-1221

$7.00

92170

CLAMP,HARNESS

92170-1900

$5.46
