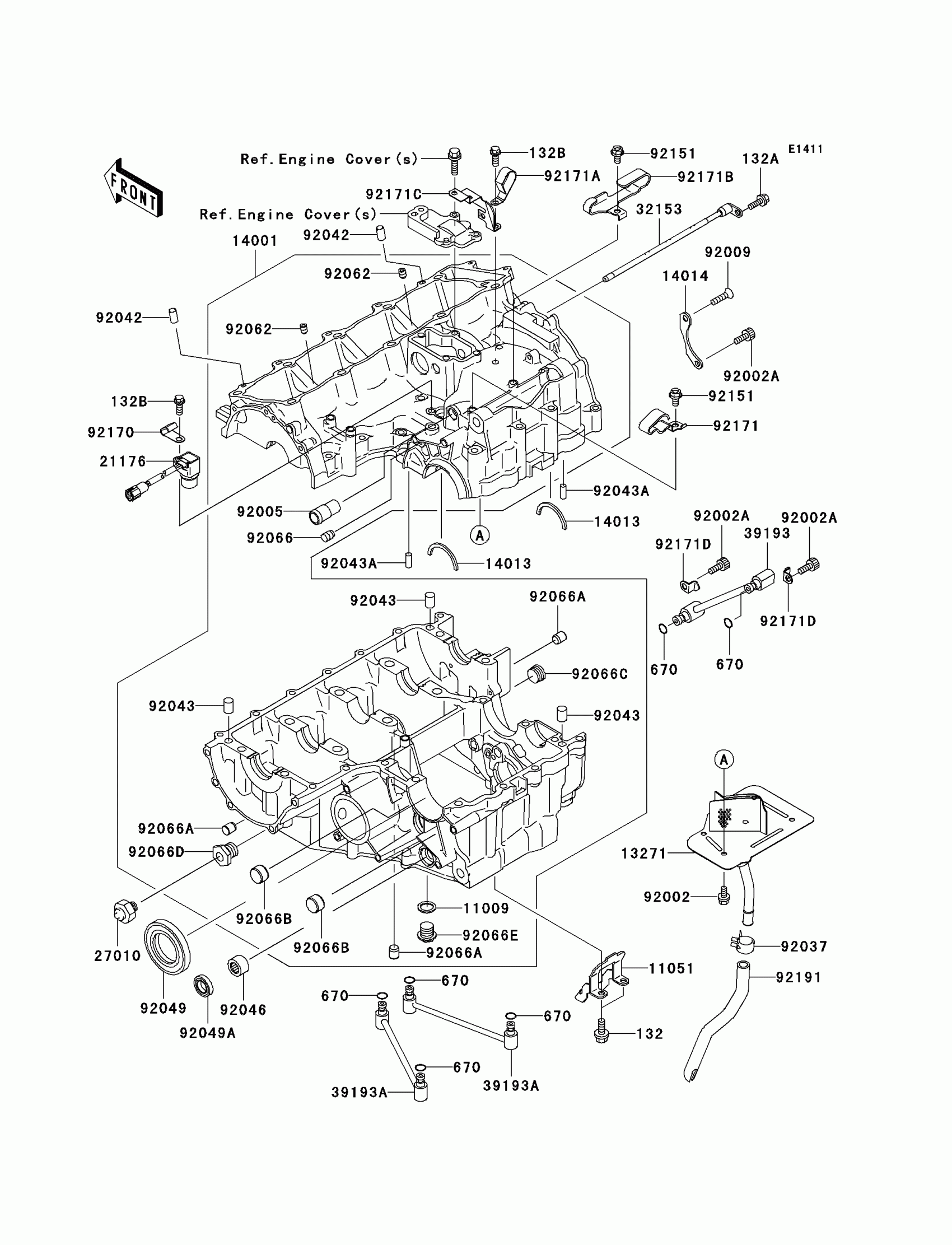

Kawasaki Ninja® ZX™-12R (European) Crankcase Diagram

#

Description
Price

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

11051

BRACKET,TUBE

11051-1334

$10.61

13271

PLATE,BREATHER

13271-1228

$85.51

14001

SET-CRANKCASE

14001-1295

$1,981.33

14013

RING-POSITION,T=1.98

14013-1004

$3.78

14014

PLATE-POSITION

14014-1140

$6.83

21176

SENSOR,SPEED

21176-0046

$158.12

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32153

PIPE,OIL

32153-1139

$91.43

39193

PIPE-OIL,RH

39193-1063

$40.17

39193A

PIPE-OIL,OIL PAN

39193-1064

$40.17

92002

BOLT,6X10

92002-1449

$3.68

92002A

BOLT,SOCKET,6X16

92002-1778

$3.81

92005

FITTING,BREATHER

92005-1238

$10.85

92009

SCREW,6X16

92009-1360

$3.29

92037

CLAMP

92037-1678

$9.80

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10X14

92043-1506

$2.30

92043A

PIN,6X16

92043-1690

$3.81

92046

BEARING-NEEDLE,7E-HK1412

92046-037

$17.53

92049

SEAL-OIL,SD40X62X8

92049-1510

Unavailable

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92062

NOZZLE,5X6,SILVER

92062-1086

$3.69

92066

PLUG

92066-042

$5.02

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$5.66

92066B

PLUG

92066-1110

$5.66

92066C

PLUG,PT3/8X12

92066-1252

$4.88

92066D

PLUG,PT3/8X3

92066-1513

$13.20

92066E

PLUG,DRAIN

92066-2196

$2.98

92151

BOLT,6X12

92151-1239

$1.76

92170

CLAMP,HARNESS

92170-1900

$5.46

92171

CLAMP

92171-0190

$13.15

92171A

CLAMP

92171-1099

$5.97

92171B

CLAMP

92171-1133

$22.73

92171C

CLAMP

92171-1217

$16.86

92171D

CLAMP,OIL PIPE,RH

92171-1439

$2.19

92191

TUBE,BREATHER

92191-1602

$46.06

132

BOLT-FLANGED-SMALL,6X12

132H0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

132B

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

670

O RING,7MM

670D1507

$1.24
