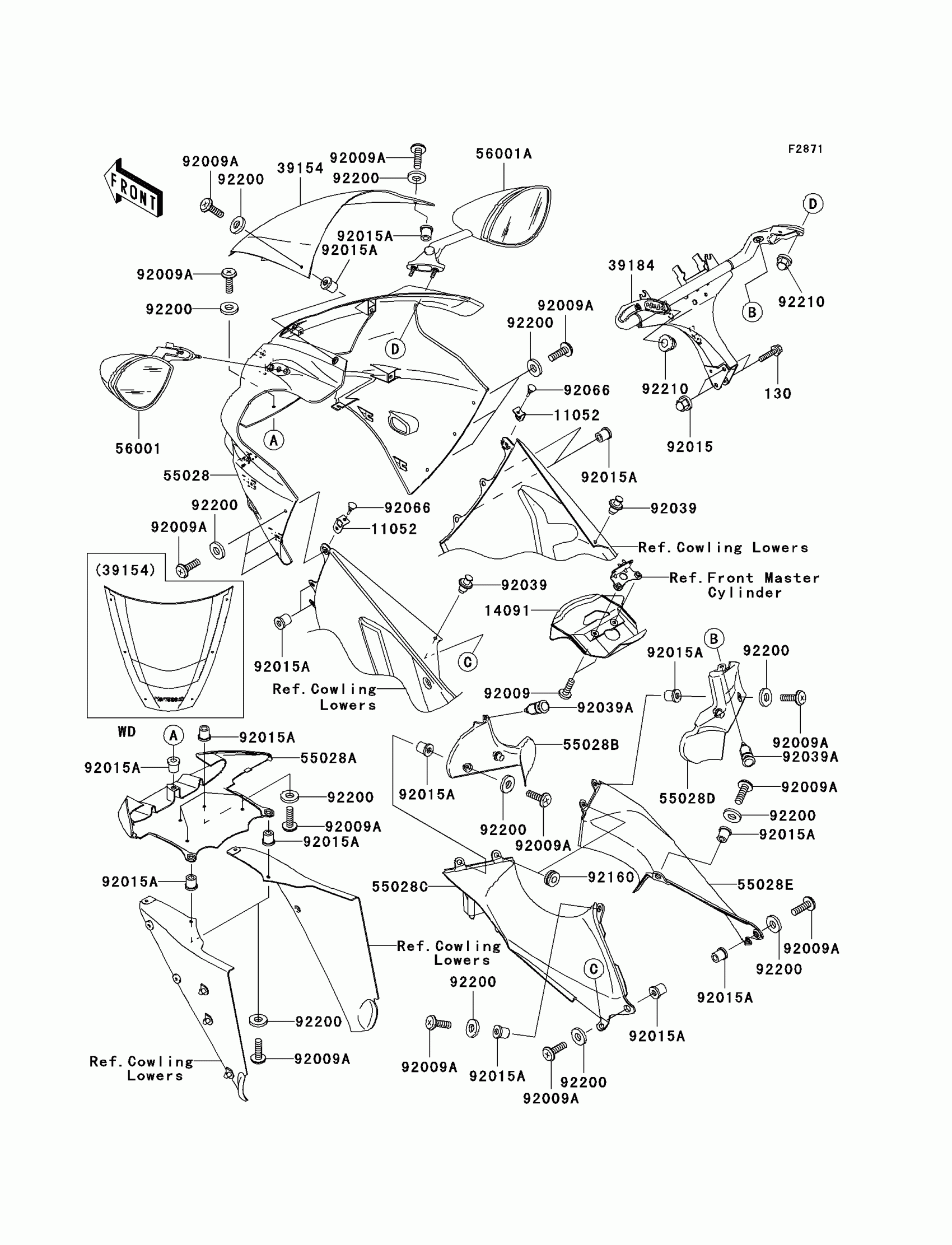

Kawasaki Ninja® ZX™-12R (European) Cowling Diagram

Description

Price

130

BOLT-FLANGED,8X40

130J0840

Unavailable

11052

BRACKET

11052-1657

$4.92

14091

COVER,UNDER BRACKET

14091-1211

$44.77

39154

WINDSHIELD

39154-5018

$435.15

39184

BRACKET-ASSY,MIRROR&METER

39184-0002

$595.26

55028

COWLING,UPP,P.M.BLACK

55028-1425-218

Unavailable

55028A

COWLING,DUCT,M.F.C.GRAY

55028-1426-263

$235.00

55028B

COWLING,INNER,LH,FR,M.F.C.GRAY

55028-1434-263

$100.96

55028C

COWLING,INNER,LH,RR,M.F.C.GRAY

55028-1435-263

$232.20

55028D

COWLING,INNER,RH,FR,M.F.C.GRAY

55028-1436-263

$100.96

55028E

COWLING,INNER,RH,RR,M.F.C.GRAY

55028-1437-263

$232.20

56001

MIRROR-ASSY,LH

56001-1574

Unavailable

56001A

MIRROR-ASSY,RH

56001-1575

Unavailable

92009

SCREW,6X10

92009-1661

$3.29

92009A

SCREW,5X16

92009-1909

$1.47

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015A

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-1227

$1.33

92039A

RIVET

92039-1286

$2.53

92066

PLUG

92066-1576

$4.12

92160

DAMPER

92160-1278

$3.35

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

92210

NUT,CAP,6MM

92210-0003

$0.60
