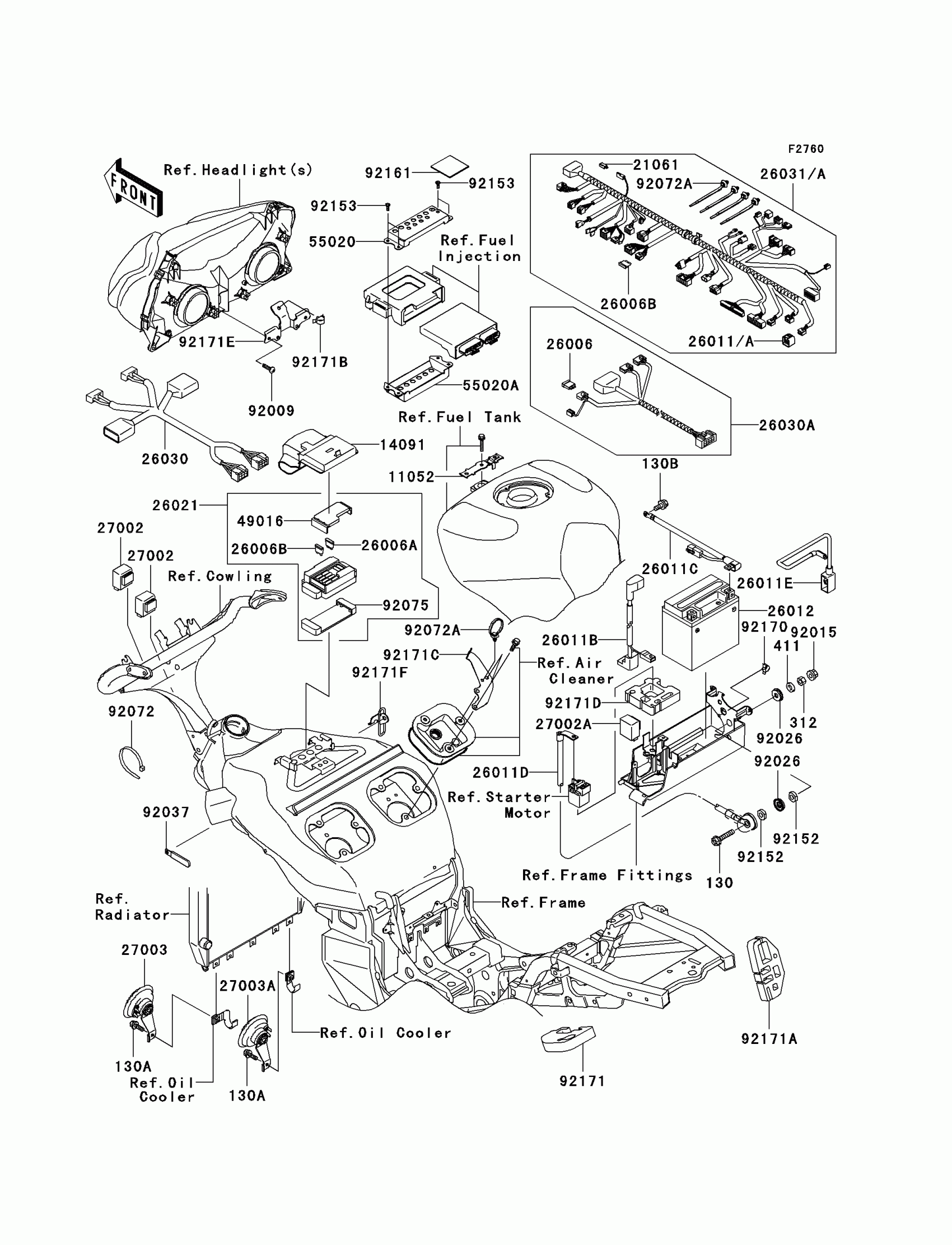

Kawasaki Ninja® ZX™-12R (European) Chassis Electrical Equipment Diagram

#

Description
Price

11052

BRACKET,FUSE

11052-1830

$14.86

14091

COVER,JUNCTION BOX

14091-1499

$30.83

21061

RECTIFIER

21061-0001

$29.81

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A

26006-1075

$4.86

26011B

WIRE-LEAD,BATTERY(+)

26011-1730

$46.91

26011C

WIRE-LEAD,BATTERY(-)

26011-1731

$35.65

26011D

WIRE-LEAD,SUB

26011-1762

$59.01

26011E

WIRE-LEAD,(+),JUMP START

26011-1772

$62.58

26012

BATTERY,YTX14-BS,12V 12AH

26012-1334

$125.31

26021

JUNCTION BOX

26021-1106

$183.70

26030

HARNESS,FR

26030-1779

Unavailable

26030A

HARNESS,SUB

26030-1959

$134.11

27002

RELAY-ASSY

27002-1086

$32.97

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN,LH

27003-1418

$89.63

27003A

HORN,RH

27003-1419

$89.63

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

55020

GUARD,ECU

55020-0115

$21.32

55020A

GUARD,ECU

55020-0116

$23.71

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92026

SPACER

92026-1575

$5.19

92037

CLAMP,HARNESS,L=100

92037-1636

$7.56

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92152

COLLAR

92152-1252

$4.15

92153

SCREW-PAN OUN-SIDE,5X12

92153-0781

$3.71

92161

DAMPER

92161-0180

$2.00

92170

CLAMP,HARNESS

92170-1494

$6.54

130

BOLT-FLANGED,6X30

130H0630

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X10

130V0610

Unavailable

312

NUT-HEX

312H0600

$1.32

411

WASHER-PLAIN,6MM

411E0600

$1.03

92171

CLAMP,HARNESS

92171-0375

$10.19

92171A

CLAMP,HARNESS

92171-1256

$8.95

92171B

CLAMP,HARNESS

92171-1269

$4.27

92171C

CLAMP,HARNESS

92171-1371

$8.32

92171D

CLAMP,HARNESS

92171-1459

$11.25

92171E

CLAMP,HEAD LAMP COUPLER

92171-1481

$20.10

92171F

CLAMP,HARNESS&CABLE

92171-1486

$20.10

26011

WIRE-LEAD

26011-0036

Unavailable

26011A

WIRE-LEAD

26011-0037

$12.41

26031

HARNESS,MAIN

26031-0134

Unavailable

26031A

HARNESS,MAIN

26031-0135

$827.67
