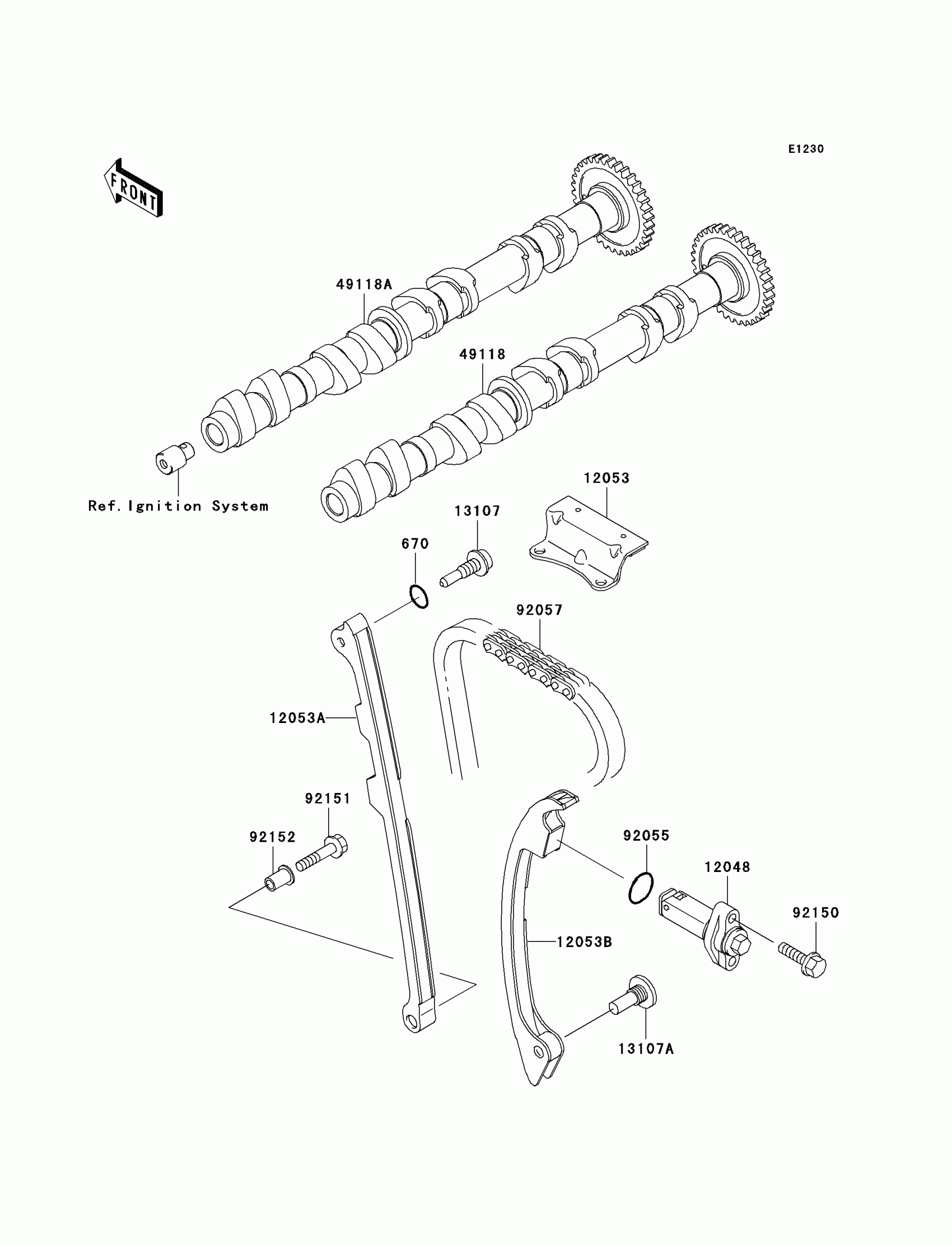

Kawasaki Ninja® ZX™-12R (European) Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,9MM

670D1509

$3.57

12048

TENSIONER-ASSY

12048-1189

Unavailable

12053

GUIDE-CHAIN,UPP

12053-1432

$38.21

12053A

GUIDE-CHAIN,FR

12053-1433

$88.12

12053B

GUIDE-CHAIN,RR

12053-1450

Unavailable

13107

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

13107A

SHAFT,CHAIN GUIDE,RR

13107-1417

$8.59

49118

CAMSHAFT-COMP,INTAKE

49118-1204

$652.94

49118A

CAMSHAFT-COMP,EXHAUST

49118-1205

$652.94

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM

92057-1475

$102.17

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92151

BOLT,6X30

92151-1134

$1.57

92152

COLLAR

92152-1167

$5.25
