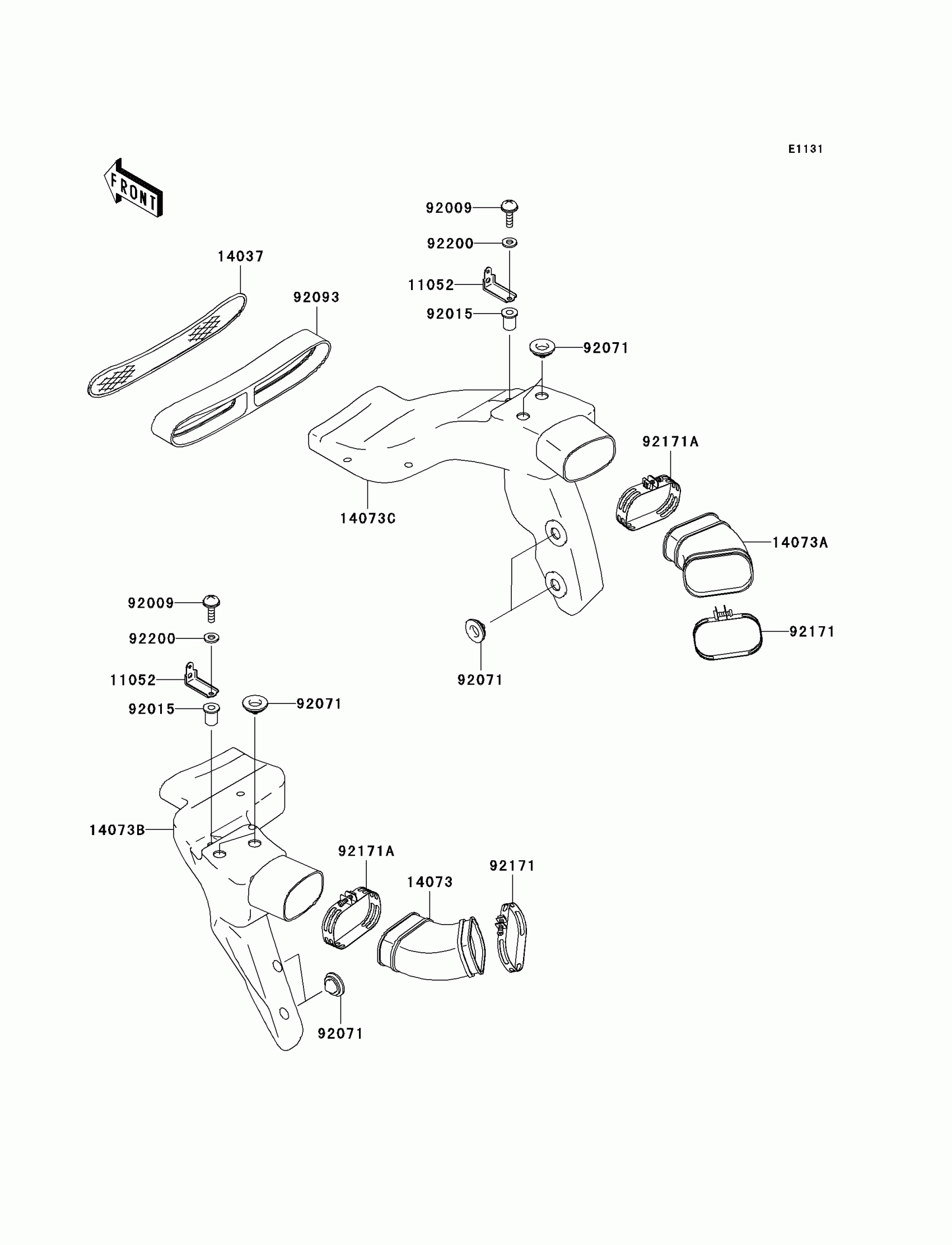

Kawasaki Ninja® ZX™-12R (European) Air Duct Diagram

Description

Price

11052

BRACKET

11052-1182

$8.66

14037

SCREEN,RAM DUCT

14037-1298

$55.91

14073

DUCT,LH

14073-1748

$57.34

14073A

DUCT,RH

14073-1750

$52.17

14073B

DUCT,LH

14073-1811

$146.49

14073C

DUCT,RH

14073-1812

$146.49

92009

SCREW,5X16

92009-1909

$2.03

92015

NUT,WELL,5MM

92015-1757

$7.29

92071

GROMMET

92071-1222

$6.55

92093

SEAL,RAM DUCT

92093-1557

$55.40

92171

CLAMP

92171-1093

$19.11

92171A

CLAMP

92171-1169

$22.32

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
