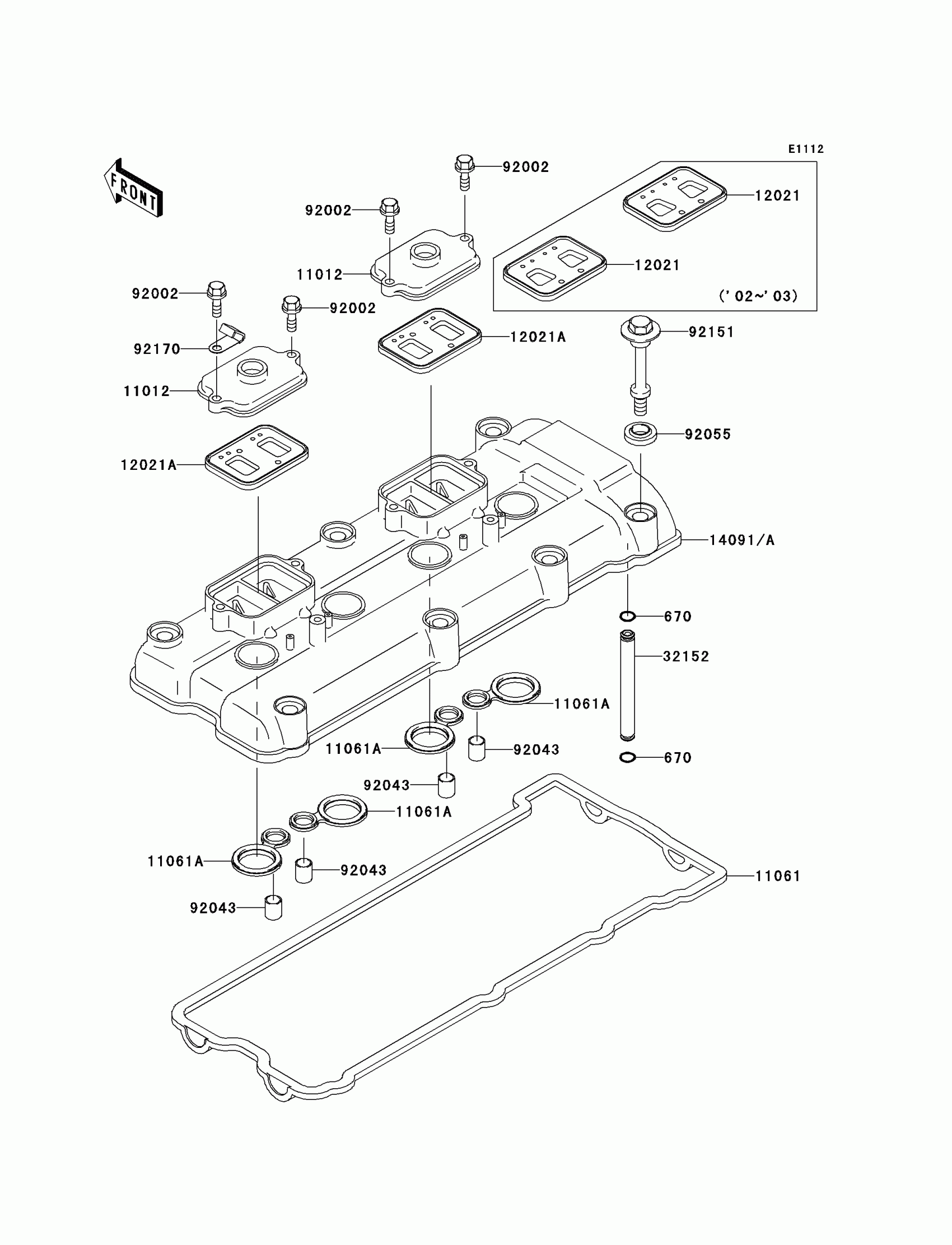

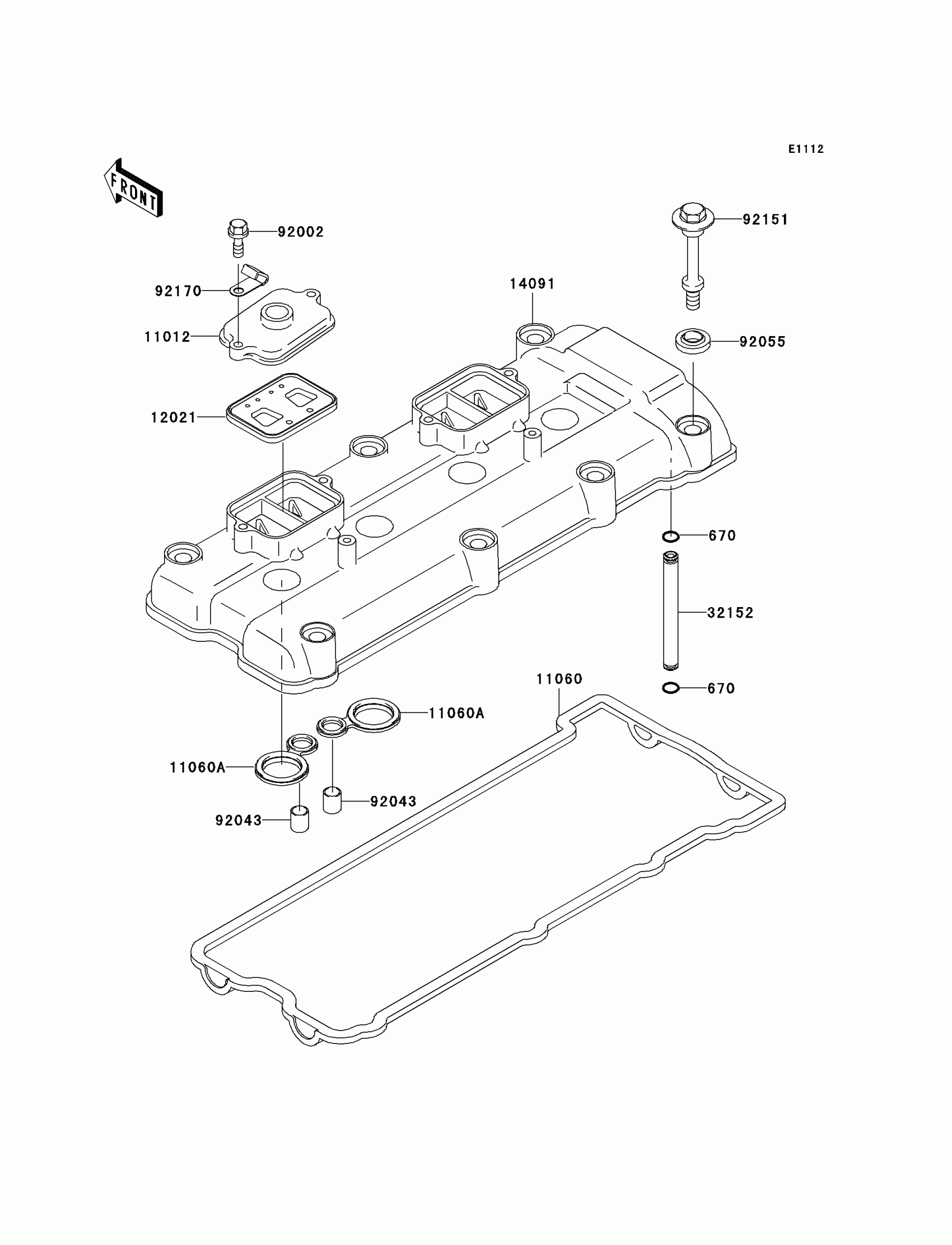

Kawasaki Ninja® ZX™-12R Cylinder Head Cover Diagram

Description

Price

670

O RING,7MM

670D1507

$1.70

11012

CAP,REED VALVE

11012-1758

$30.56

11060

GASKET,HEAD COVER

11060-1905

Unavailable

11060A

GASKET,SPARKPLUG HOLE

11060-1906

Unavailable

12021

VALVE-ASSY-REED

12021-1119

$75.61

14091

COVER,HEAD

14091-1126

$445.48

32152

PIPE,OIL

32152-1544

$13.28

92002

BOLT,6X20

92002-1237

$4.31

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,HEAD COVER BOLT

92055-1352

$10.00

92151

BOLT,HEAD COVER

92151-1221

$9.19

92170

CLAMP,HARNESS

92170-1900

$6.26
